P1114

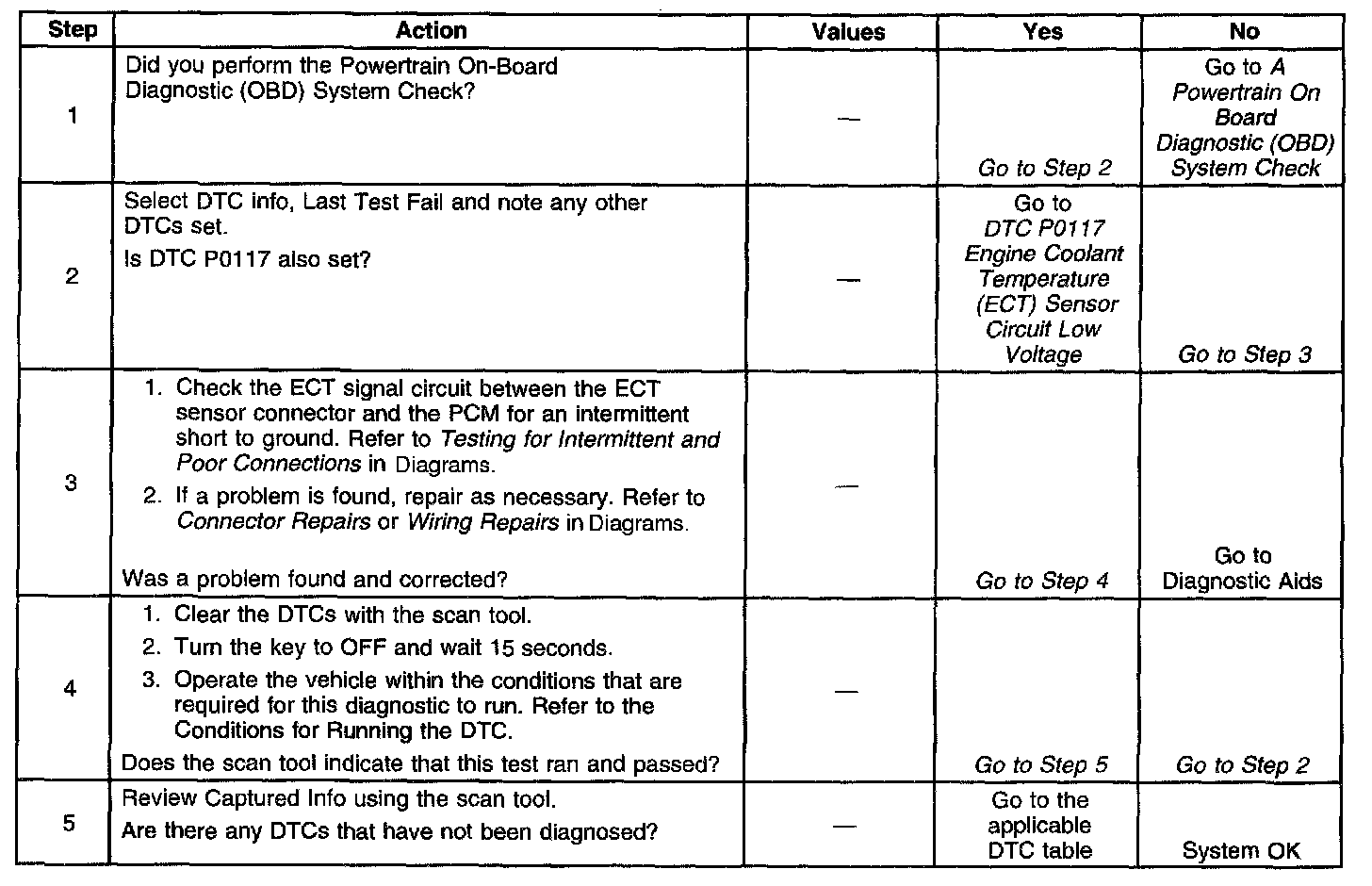

Diagnostic Chart:

Engine Controls Schematics: A/C Pressure Switch, TPS, MAP, ECT and IAT:

CIRCUIT DESCRIPTION
The Engine Coolant Temperature (ECT) sensor contains a semiconductor-a device that changes resistance based on temperature. The ECT sensor has a signal circuit and a ground circuit. The PCM applies voltage of about 5.0 volts to the sensor on the signal circuit. The Powertrain Control Module (PCM) monitors any voltage changes caused by changes in the resistance of the sensor, and uses this information to determine the engine coolant temperature.

When the engine coolant is cold, the sensor resistance is high, and the PCM signal voltage is only pulled down a slightly through the sensor to ground. The PCM, therefore, senses a high signal voltage or a low coolant temperature. When the engine coolant is warm, the sensor resistance is low, and the signal voltage is pulled down a greater amount. This causes the PCM to sense a low signal voltage or a high temperature.

CONDITIONS FOR RUNNING THE DTC
The engine has been running longer than 3 seconds.

CONDITIONS FOR SETTING THE DTC
The ECT sensor intermittently indicates a coolant temperature of less than -13°C (+9°F).

ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic tails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ The current DTC will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL diagnostic trouble code.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended. Refer to Powertrain Control Module (PCM) Description, Clearing Diagnostic Trouble Codes.

DIAGNOSTIC AIDS

NOTE: Refer to Connector Test Adapter Kit J 35616-A Notice in Service Precautions.

Check for the following conditions:
^ A faulty connection at the PCM - Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
^ A damaged harness - Inspect the wiring harness for damage. If the harness appears to be OK, observe the ECT display on the scan tool while moving connectors and wiring harnesses related to the ECT sensor. A change in the ECT display will indicate the location of the malfunction.
^ A skewed or incorrectly calibrated ECT sensor - Refer to the Temperature vs Resistance table.

Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition occurs that caused the DTC to set. This may assist in diagnosing the condition.

If the problem is intermittent, refer to Intermittent Conditions. Intermittent Conditions
