P1107

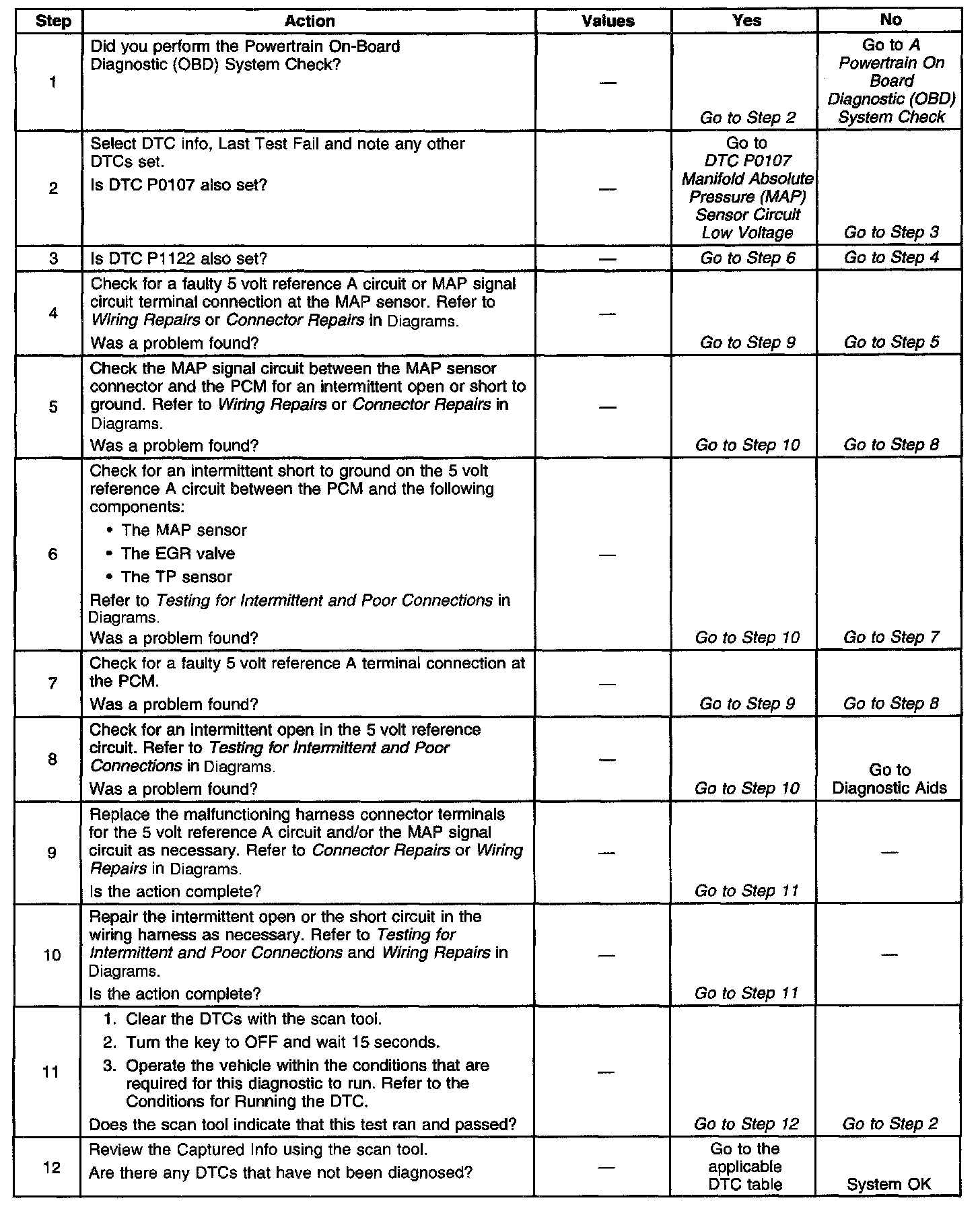

Diagnostic Chart:

Engine Controls Schematics: A/C Pressure Switch, TPS, MAP, ECT and IAT:

CIRCUIT DESCRIPTION
The Manifold Absolute Pressure (MAP) sensor is mounted to the top of the intake manifold. The MAP sensor measures pressure changes within the intake manifold which are an indication of engine load. The MAP sensor has a 5.0 volt reference, a ground, and a signal circuit.

The MAP sensor contains a diaphragm which changes resistance based on pressure. When manifold pressure is low, or the vacuum is high, sensor output voltage is low. When manifold pressure is high, or the vacuum is low, sensor output voltage is high. MAP sensor voltage, depending on altitude, can range from below 2 volts at idle to above 4 volts at Wide Open Throttle (WOT) or with the engine not running.

The MAP sensor signal is also used at initial key-up to determine Barometric Pressure (BARO).

CONDITIONS FOR RUNNING THE DTC
^ No Throttle Position (TP) sensor DTCs are present.
^ The ignition is ON.
^ Throttle angle is steady above 6 percent if engine speed is more than 1,000 RPM.

CONDITIONS FOR SETTING THE DTC
The MAP sensor intermittently indicates a manifold absolute pressure below 0.1 volt.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ The current DTC will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL diagnostic trouble code.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended. Refer to Powertrain Control Module (PCM) Description, Clearing Diagnostic Trouble Codes.

DIAGNOSTIC AIDS

NOTE: Refer to Connector Test Adapter Kit J 35616-A Notice in Service Precautions.

Check for the following conditions:
^ A faulty connection at PCM or MAP sensor - Inspect PCM harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
^ A damaged harness - Inspect the wiring harness for damage. If the harness appears to be OK, observe the MAP display on the scan tool while moving connectors and wiring harnesses related to the sensor. A change in the display will indicate the location of the malfunction.

Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition that caused the DTC to set occurs. This may assist in diagnosing the condition.

If the problem is intermittent, refer to Intermittent Conditions. Intermittent Conditions
