P0507

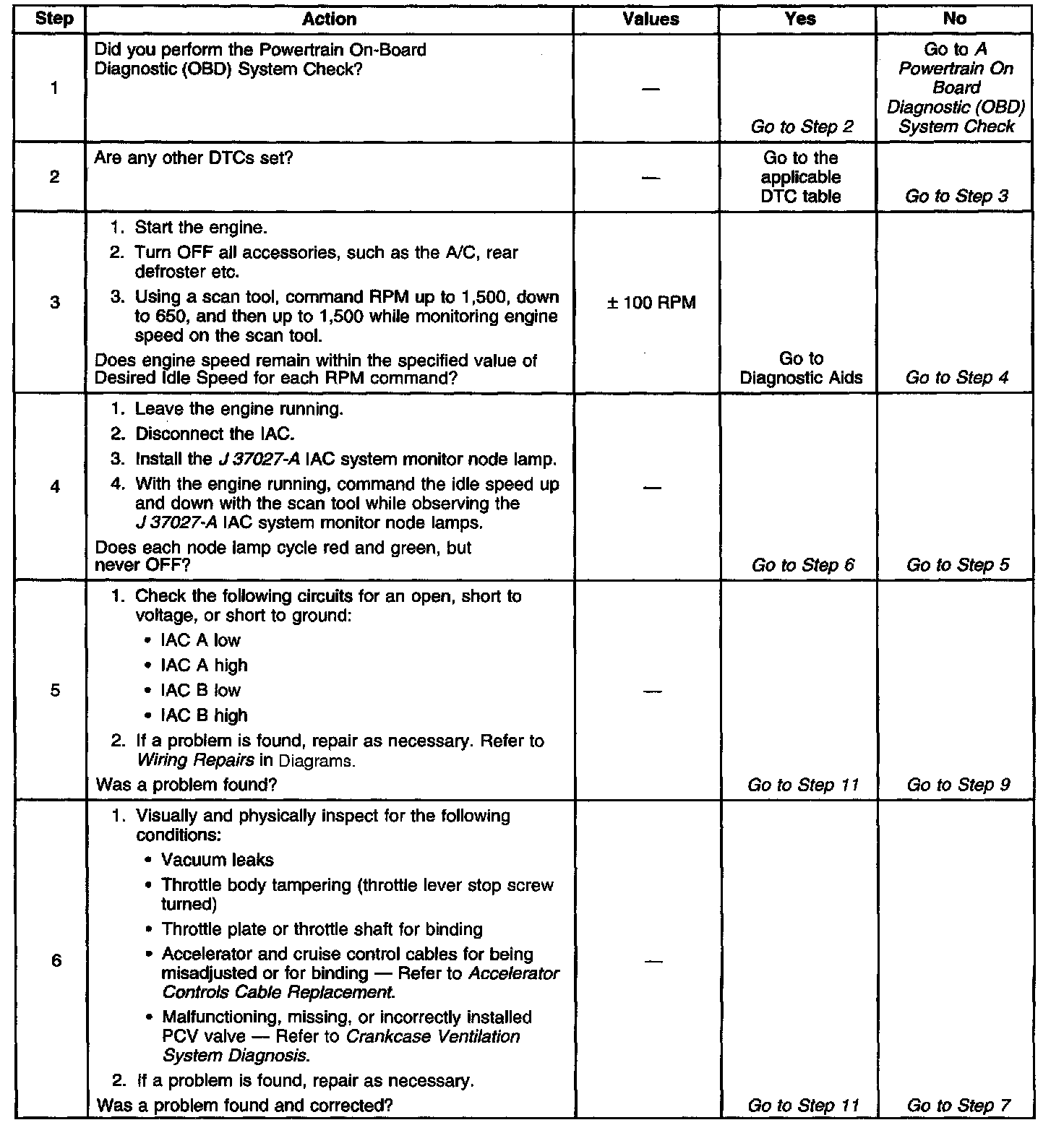

Diagnostic Chart (Part 1 Of 2):

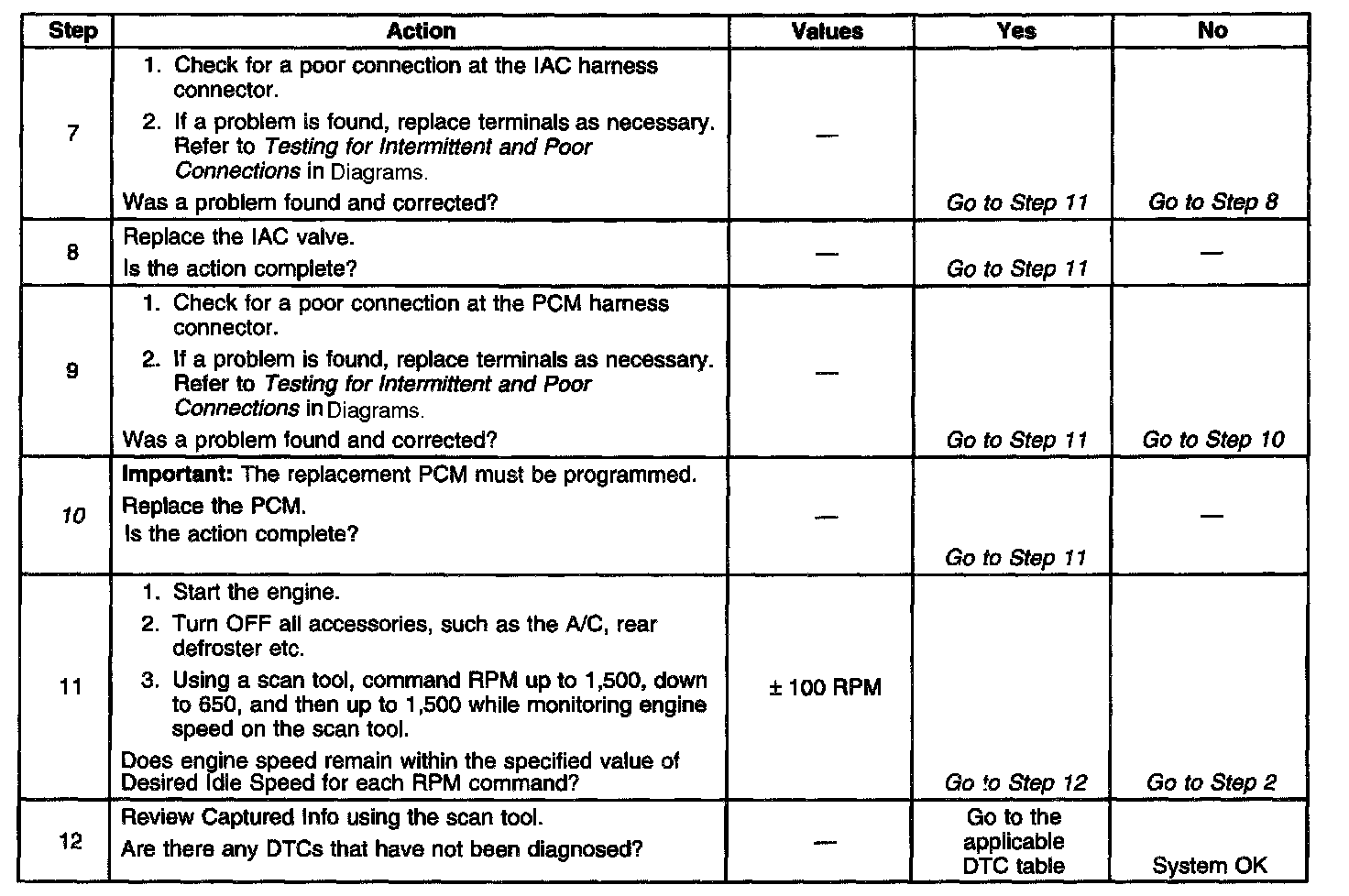

Diagnostic Chart (Part 2 Of 2):

Engine Controls Schematics: MAF, Secondary Air Injection Pump Solenoid, IAC and Secondary AIR Pump:

CIRCUIT DESCRIPTION
The Powertrain Control Module (PCM) controls engine idle speed by adjusting the position of the Idle Air Control (IAC) motor pintle. The IAC is a bi-directional motor driven by two coils. The PCM sends pulses, or steps, to the IAC to extend or retract the IAC pintle into a passage in the throttle body to decrease or increase air flow. The commanded IAC position, displayed in counts, can be monitored on the scan tool. A lower number of counts indicates less commanded airflow (pintle extended). This method allows highly accurate control of idle speed and quick response to changes in engine load. If the PCM detects a condition where too high of an idle speed is present and the PCM is unable to adjust idle speed by decreasing the IAC counts, DTC P0507 will set indicating a problem with the idle control system.

CONDITIONS FOR RUNNING THE DTC
^ The following types of Diagnostic Trouble Codes (DTCs) are not set:
^ Fuel injector faults
^ Misfire
^ Fuel trim
^ Evaporative Emission (EVAP) system
^ Exhaust Gas Recirculation (EGR) system
^ Vehicle Speed Sensor (VSS)
^ Throttle Position (TP) sensor
^ Intake Air Temperature (IAT) sensor
^ Manifold Absolute Pressure (MAP) sensor
^ Engine Coolant Temperature (ECT) sensor
^ Crankshaft Position (CKP) sensor
^ Mass Air Flow (MAF) sensor
^ The BARO is more than 65 kPa.
^ The engine has been running for at least 3 minutes.
^ The system voltage is between 9-18 volts.
^ The engine coolant temperature is more than 70°C (158°F).
^ The vehicle speed is less than 3 mph.
^ The intake air temperature is more than -18°C (0°F).
^ The throttle is closed.
^ The conditions are stable for at least 15 seconds.

CONDITIONS FOR SETTING THE DTC
The engine speed is more than 175 RPM higher than the Desired Idle, the positive idle speed error is more than 175 RPM).

ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and tails.
^ The PCM records the operating conditions at the time the diagnostic tails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM turns the MIL OFF after three consecutive drive trips during which the diagnostic runs and passes.
^ A last test failed, or the current DTC, clears when the diagnostic runs and passes.
^ A History DTC clears after forty consecutive warm-up cycles, if no other emission related diagnostic failures are reported.
^ Use a scan tool in order to clear the MIL diagnostic trouble code.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended. Refer to Powertrain Control Module (PCM) Description, Clearing Diagnostic Trouble Codes.

DIAGNOSTIC AIDS

NOTE: Refer to Connector Test Adapter kit J 35616-A Notice in Service Precautions.

Check for the following conditions:
^ A faulty connection at the PCM or the IAC motor - Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
^ A damaged harness -Inspect the wiring harness for damage.
^ A vacuum leak - Check for a condition that causes a vacuum leak, such as disconnected or damaged hoses, leaks at EGR valve and EGR pipe to intake manifold, leaks at throttle body, malfunctioning or incorrectly installed PCV valve, leaks at intake manifold, etc.
^ The throttle body - Check for a sticking throttle plate. Also inspect the IAC passage for deposits or objects that will not allow the IAC pintle to fully extend.

Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition occurs that caused the DTC to set. This may assist in diagnosing the condition.

If the problem is intermittent, refer to Intermittent Conditions. Intermittent Conditions

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
10. This vehicle is equipped with a PCM which utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is being replaced, the new PCM must be programmed.
