P0230

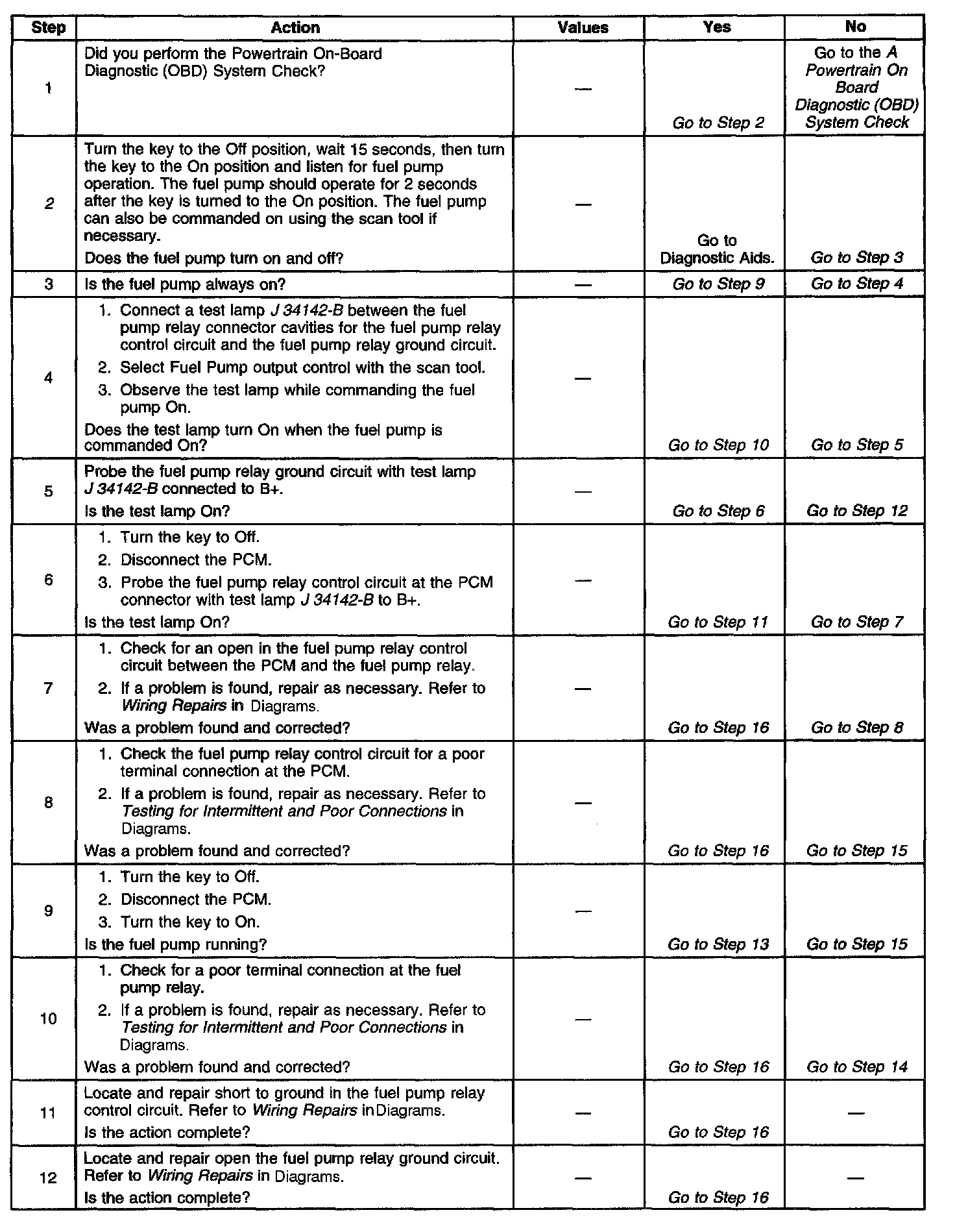

Diagnostic Chart (Part 1 Of 2):

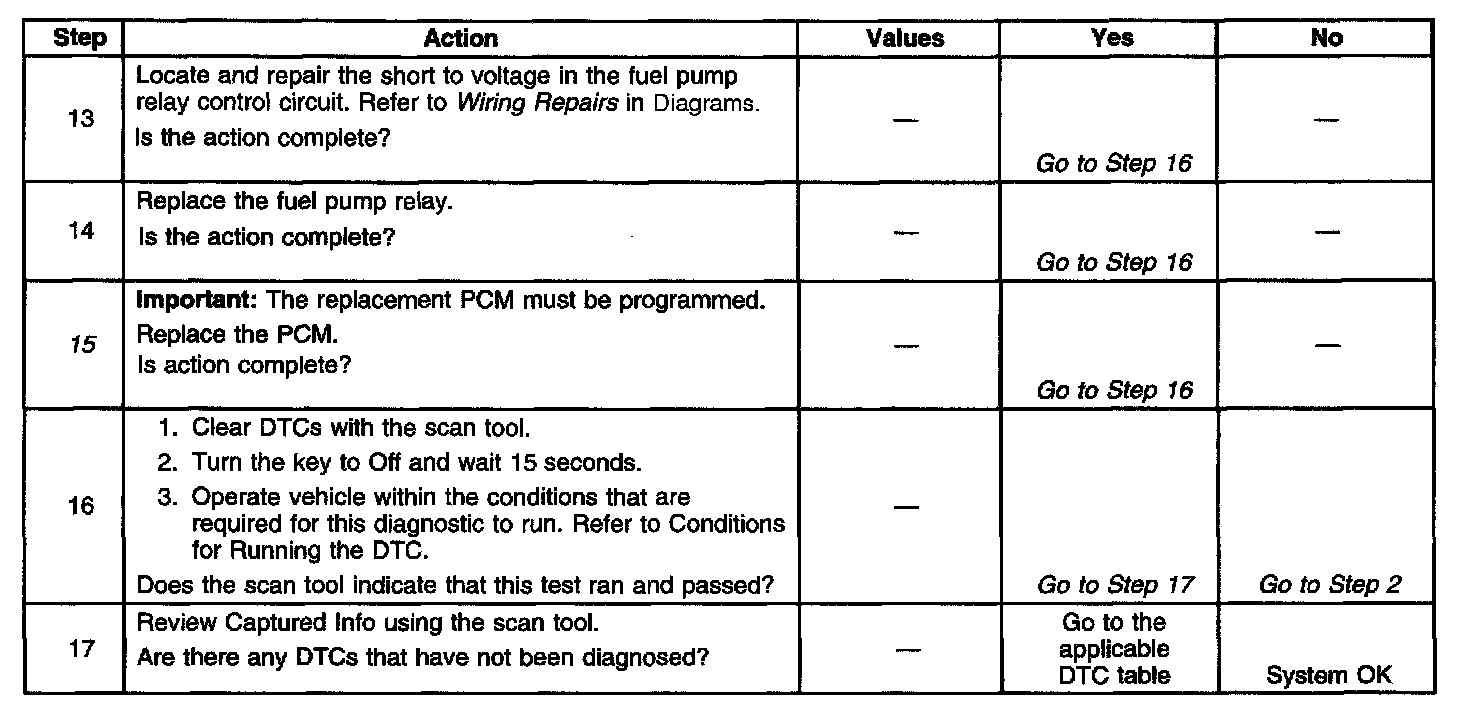

Diagnostic Chart (Part 2 Of 2):

Engine Controls Schematics: PCM Fuel Tank Inputs:

CIRCUIT DESCRIPTION
The PCM provides ignition positive voltage to control the fuel pump relay. When the ignition switch is turned ON, the PCM energizes the fuel pump relay that applies power to the fuel pump. The fuel pump relay remains ON as long as the engine is running or cranking and the PCM is receiving reference pulses. The PCM has the ability to detect an electrical malfunction on the relay control circuit. If no reference pulses are present, the PCM de-energizes the fuel pump relay within 2 seconds after the ignition is turned ON or the engine is stopped. With the engine stopped, the fuel pump can be turned ON by using the scan tool output controls function. If an electrical malfunction is detected, the PCM will set DTC P0230.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
^ The PCM detects an electrical malfunction on the fuel pump relay control circuit.
^ The condition is present for 0.5 second.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ The current DTC will clear when the diagnostic runs and does not fail.
^ Use a scan tool in order to clear the MIL diagnostic trouble code.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended. Refer to Powertrain Control Module (PCM) Description, Clearing Diagnostic Trouble Codes.

DIAGNOSTIC AIDS

NOTE: Refer to Connector Test Adapter Kit J 35616-A Notice in Service Precautions.

Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition occurs that set the DTC. This may assist in diagnosing the condition.

If the problem is intermittent, refer to Intermittent Conditions. Intermittent Conditions

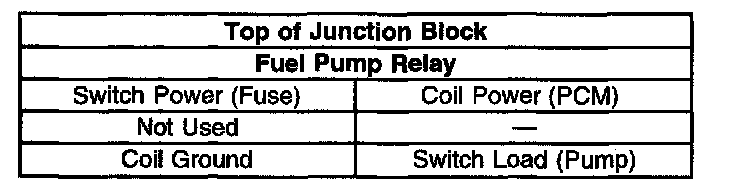

RELAY TERMINAL IDENTIFICATION
Use the relay cavity table in order to locate the correct cavities to probe during diagnosis. The table layout corresponds to the cavity layout in the Underhood Accessory Wiring Junction Block. Four blade relays can be inserted two ways. Use the table and NOT the numbering on the relay to avoid probing incorrectly.

TEST DESCRIPTION
Numbers below refer to the step numbers on the diagnostic table:
2. If the fuel pump is not audible at the fuel tank area, listen underhood at the fuel rail. Fuel flowing through the pressure regulator produces an audible hiss.
15. This vehicle is equipped with a PCM that utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is replaced, the new PCM must be programmed.
