Transmission Mount Replacement- Rear

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

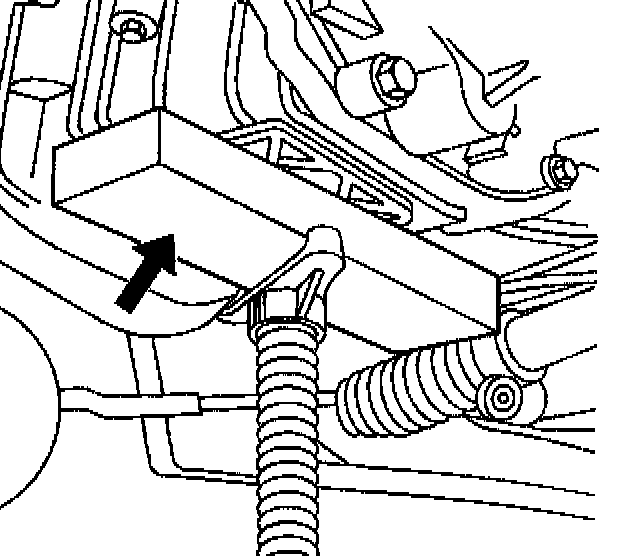

2. Support the transmission with a jack and wood block.

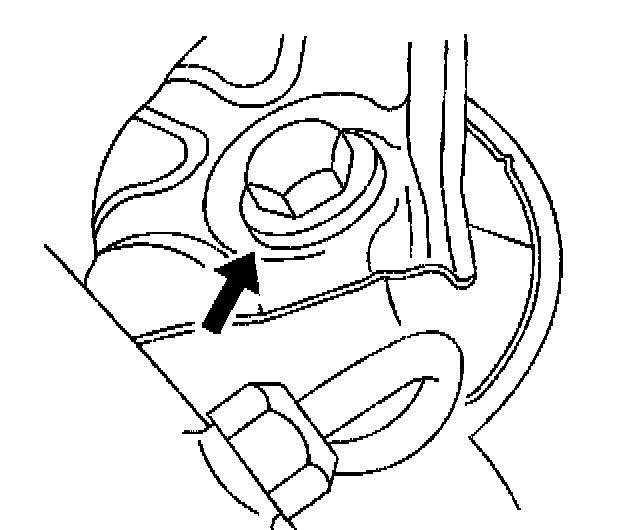

3. Remove the thru bolt.

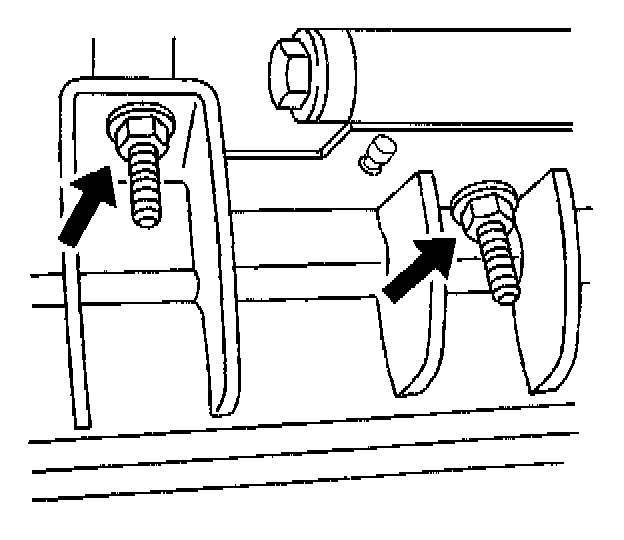

4. Remove the rear mount attaching bolts and the mount.

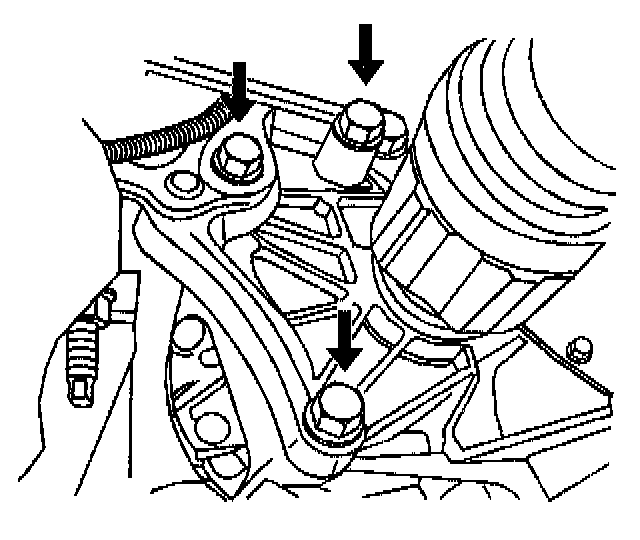

5. Remove the two rear mount bracket lower nuts.





6. Remove the rear mount bracket lower bolt and the bracket.

Installation





1. Install the rear mount bracket and rear mount lower bolt.





2. Install the two rear mount bracket lower nuts.





3. Install the rear mount and the attaching bolts.





4. Install the thru bolt.





5. Remove the block of wood and jack from underneath the transmission.
6. Lower the vehicle.
