Transmission Mount Replacement- Front

Installation Procedure

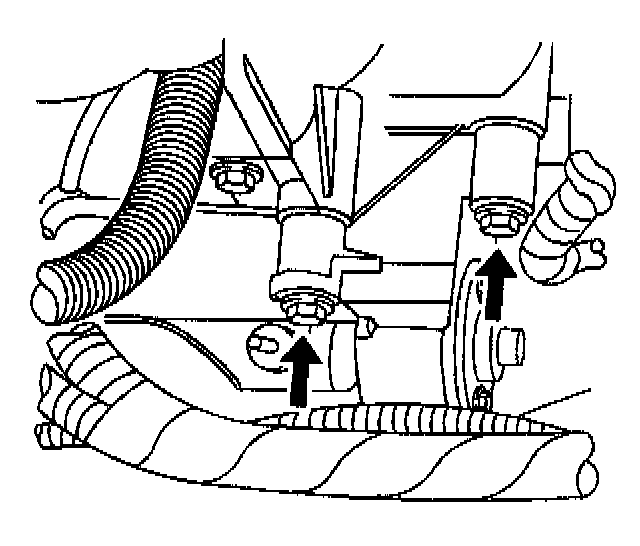

1. Remove the 2 upper mount bolts.
2. Raise and support the vehicle. Refer to Vehicle Lifting.





3. Position a jack and wood block under the transmission.

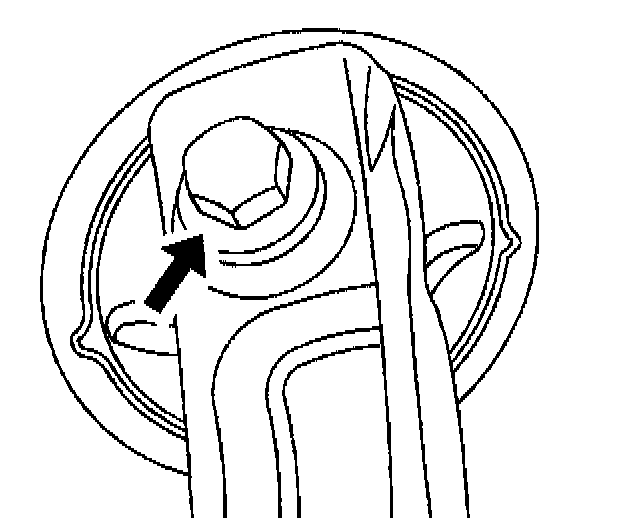

4. Remove the thru bolt.





5. Remove the 3 mount bracket lower bolts and the bracket.

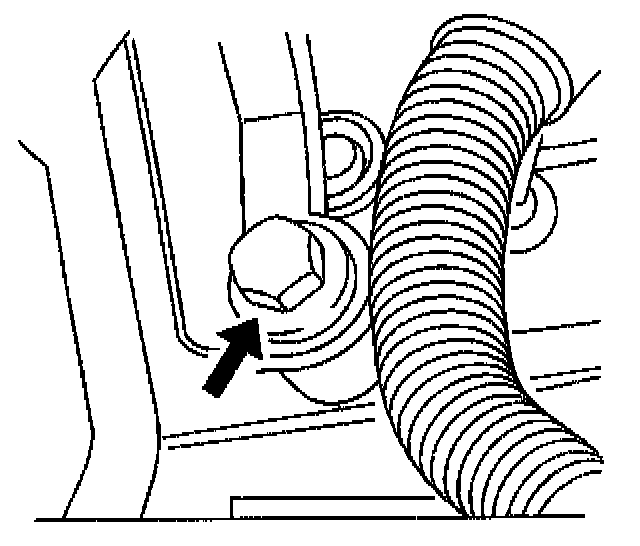

6. Remove the transmission mount lower bolt and the mount.

Installation Procedure





1. Install the transmission mount and the transmission mount lower bolt.





2. Install the mount bracket and the 3 mount bracket lower bolts.





3. Install the thru bolt.





4. Remove the jack and block of wood from underneath the transmission.
5. Lower the vehicle.





6. Install the 2 upper mount bolts.
