Oil Cooler Pipe Seals Replacement

Removal Procedure

^ Tools Required
J 41239-10 Cooler Pipe Seal Remover





1. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting.
2. Remove the transmission oil cooler pipes from the transmission. Refer to Automatic Transmission Oil Cooler Pipes Replacement.
3. Remove the cooler pipe bracket stud.





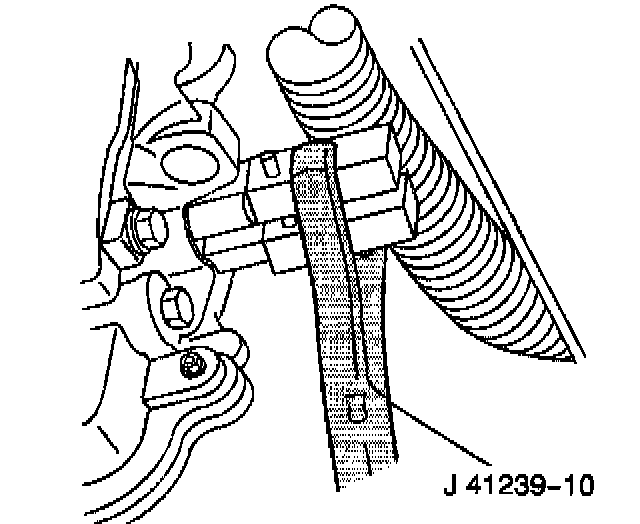

4. Remove the oil cooler pipe seals.

Installation Procedure

^ Tools Required:
- J 41239-10 Cooler Pipe Seal Installer

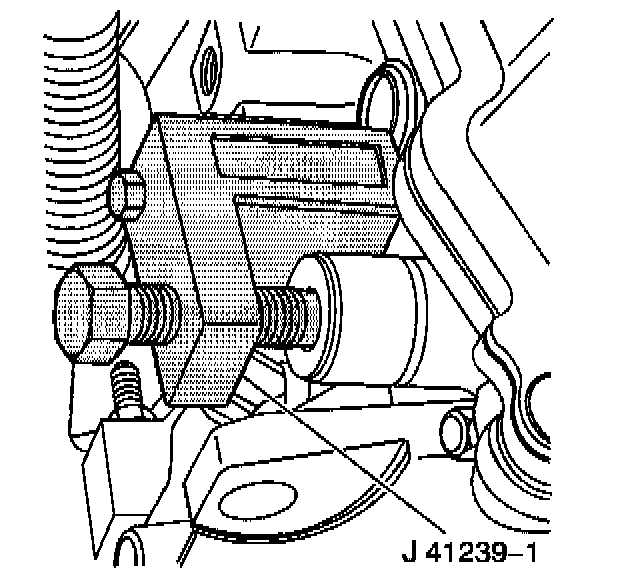

1. Install the J 41239-10 on the transmission case using cooler pipe bracket stud hole.





2. Install a new seal in the case bore.
3. Press the new seals in. Tighten the J41239-1 until the seal bottoms out in the case bore.

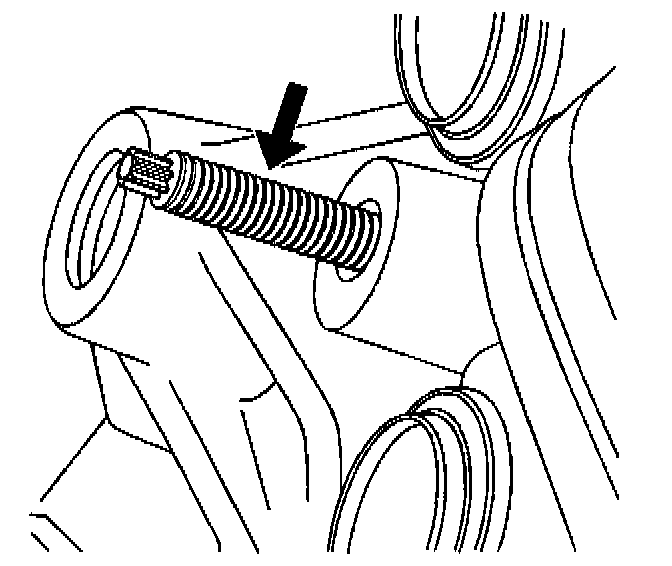

4. Install the cooler pipe bracket stud.
5. Install the transmission oil cooler pipes. Refer to Automatic Transmission Oil Cooler Pipes Replacement.
6. Lower the vehicle.
7. Inspect the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
8. Operate the engine for 2 or 3 minutes.
9. Inspect the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
