Low/Reverse Servo Assembly Replacement

Removal Procedure

Caution: Refer to Vehicle Lifting Caution in Service Precautions.





1. Raise the vehicle. Support the vehicle.
2. Remove the oil pan and filter. Refer to Oil Filter and Seal Replacement.
3. Remove the oil feed pipes. Refer to Oil Feed Pipes Replacement.

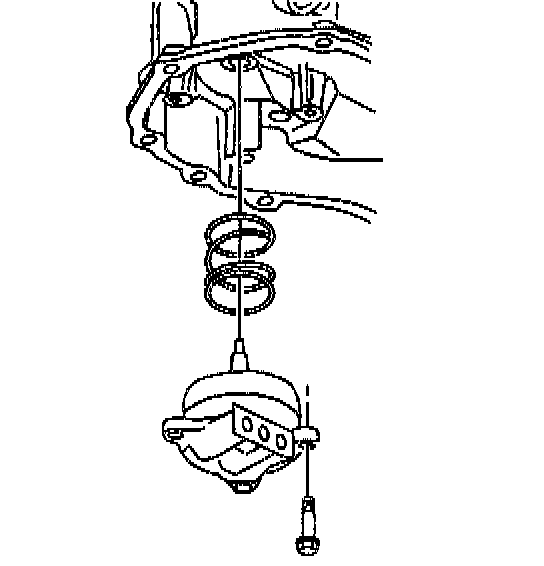

4. Remove the three low and the reverse band servo cover bolts, the servo and the spring.
5. Disassemble, clean and inspect the low/reverse servo assembly. Refer to Automotive Transmission Transaxle Unit Repair.

Installation Procedure





1. Assemble the low/reverse servo. Refer to Automotive Transmission Transaxle Unit Repair.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the low and the reverse band servo cover bolts.
Tighten
Tighten the bolts to 12 Nm (106 inch lbs.).
3. Install the oil feed pipe. Refer to Oil Feed Pipes Replacement.
4. Install the oil filter and pan. Refer to Oil Filter and Seal Replacement.
5. Lower the vehicle.
6. Connect the negative battery cable.
7. Fill the transmission. Refer to Fluid Capacity Specifications.
8. Inspect the transmission fluid level. Refer to Transmission Fluid Checking Procedure.
