Child Seat Tether Attachment: Service and Repair

REMOVAL PROCEDURE

CAUTION: The seat belt assembly and/or bracket assembly must be replaced as a unit only. Do not substitute parts for any reason, or personal injury could result.

IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.

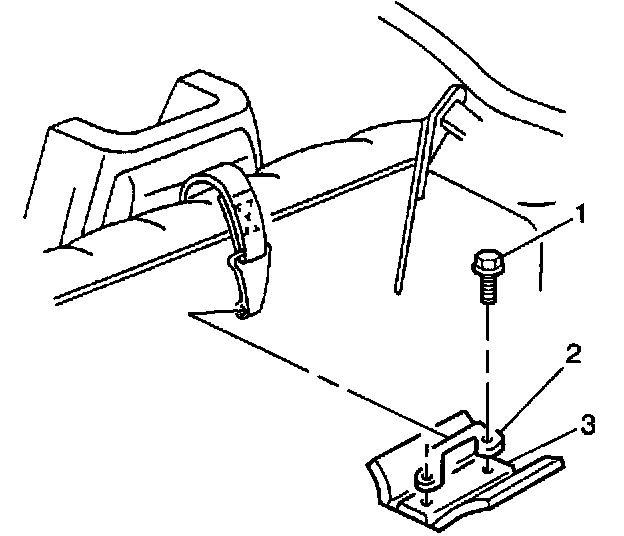

1. Remove the bolts/screws (1).
2. Remove the anchor bracket (3).

INSTALLATION PROCEDURE
1. Connect the anchor bracket (3) to the anchor bracket mounting plate.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: DO NOT use a nut driver to tighten this hardware or the fastener will not be properly seated.

2. Install the bolts/screws (1).

Tighten the bolts/screws (1) until the bolts are fully seated. Do not strip the bolts.
