Radiator Cooling Fan Motor Relay: Service and Repair

REMOVAL PROCEDURE

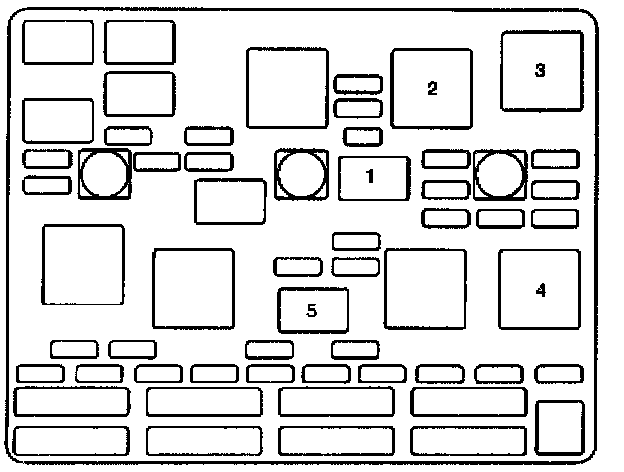

The relays in the illustration are described in the following order:
- The fuel pump relay (1)
- The cooling tan relay 2 (2)
- The cooling fan mode relay (3)
- The cooling fan relay 1(4)
- The A/C compressor relay (5)

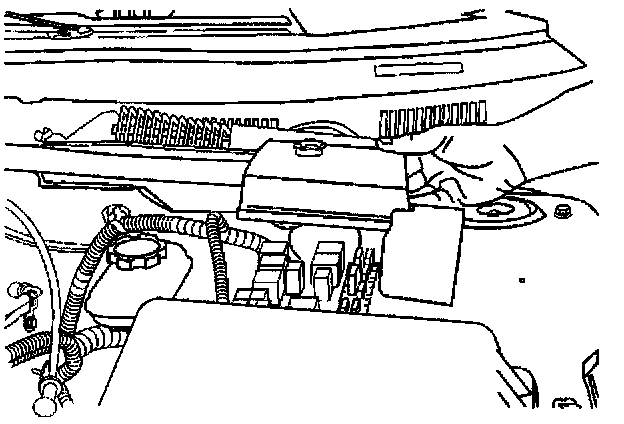

1. Remove the underhood fuse block cover.




2. Remove the appropriate relay.

INSTALLATION PROCEDURE

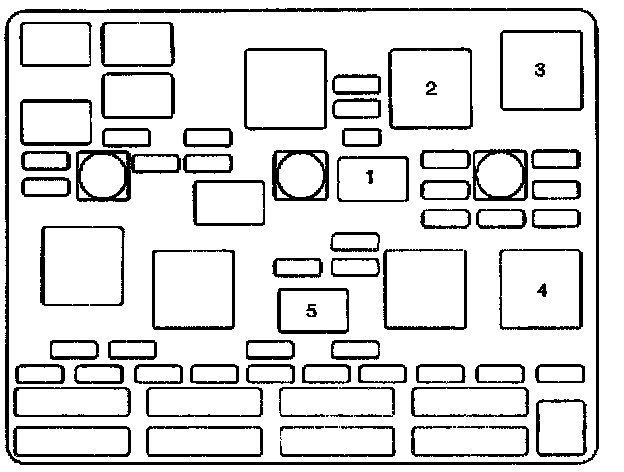

The relays in the illustration are described in the following order:
- The fuel pump relay (1)
- The cooling fan relay 2 (2)
- The cooling fan mode relay (3)
- The cooling fan relay 1(4)
- The A/C compressor relay (5)




1. Install the appropriate relay.

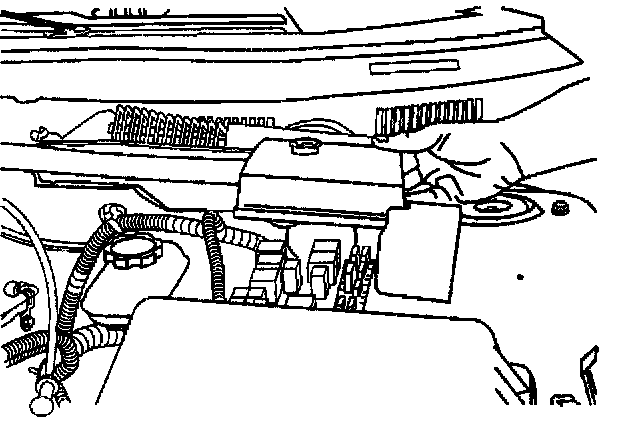

2. Install the underhood fuse block cover.
