Alero L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Oil Pressure Sensor, IAC, PNP, and Generator
Oil Pressure Sensor, IAC, PNP, and Generator

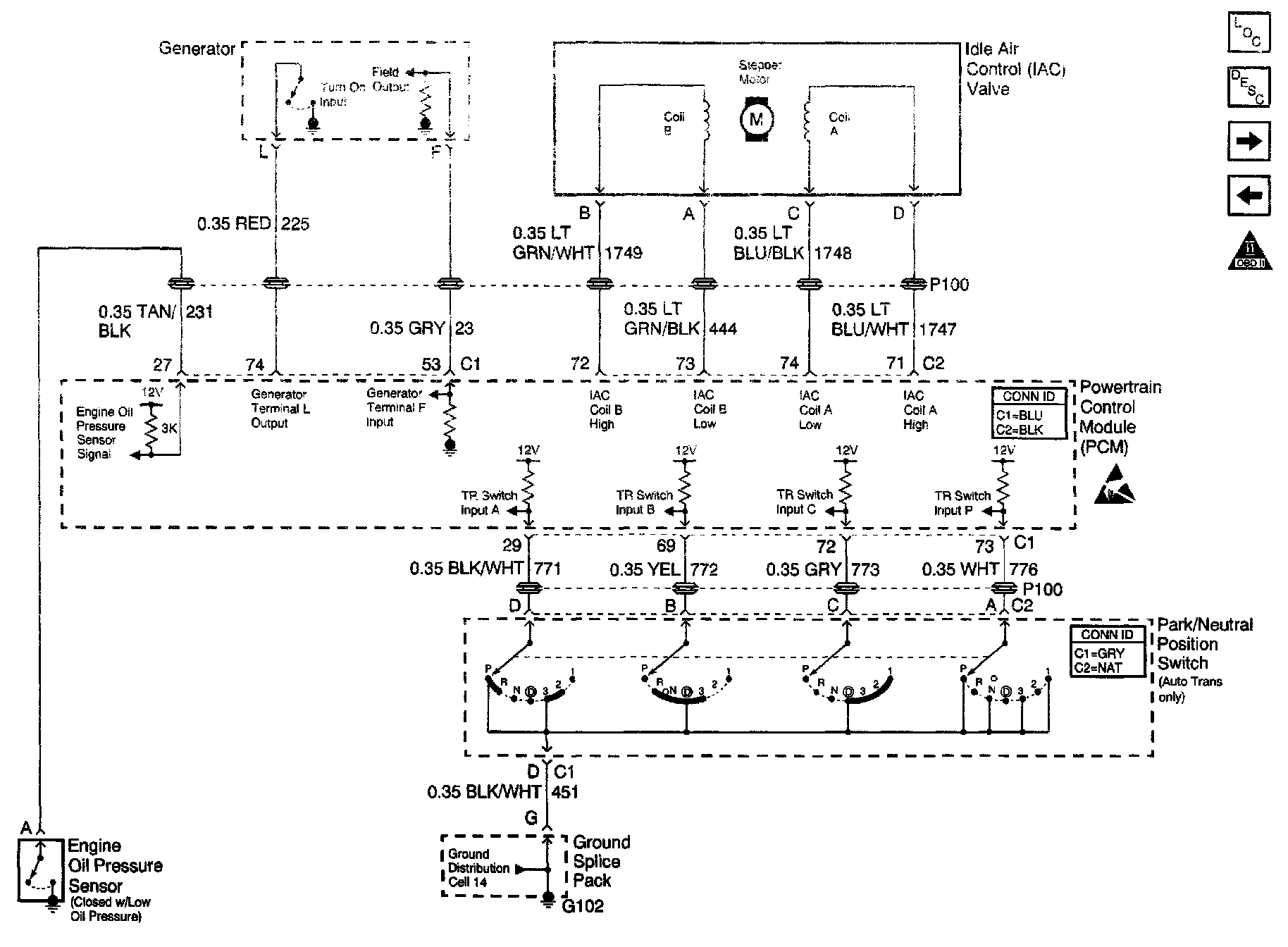

Engine Controls Schematics: Oil Pressure Sensor, IAC, PNP, And Generator:
