P/S Pressure Hose Replacement

Removal Procedure
1. Raise the vehicle on a hoist. Refer to Vehicle Lifting.

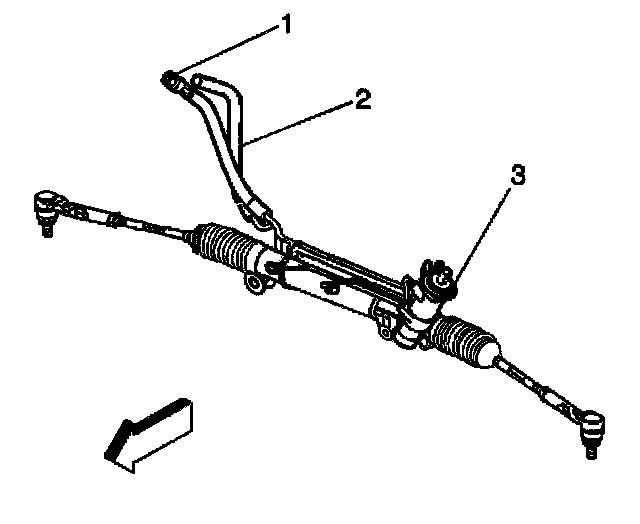

2. Remove the power steering pressure hose (1) from the power steering gear (3).
3. Lower the vehicle.
4. Remove the upper air cleaner assembly. Refer to Air Cleaner Assembly Replacement.

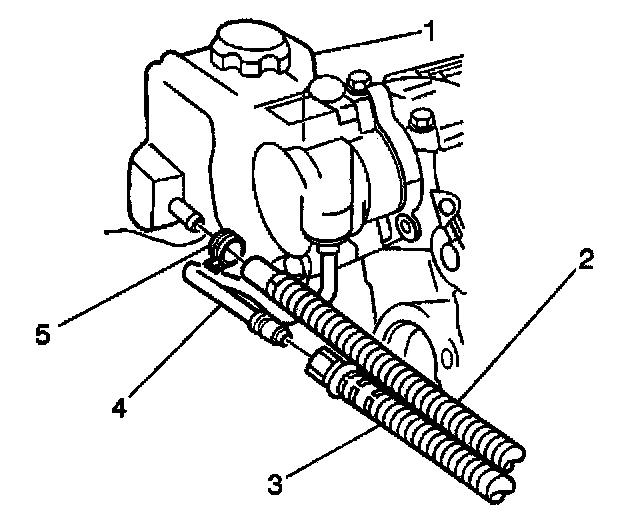

5. Remove the power steering pressure hose (3) from the power steering pump pipe (4).
6. Remove the power steering pressure hose (3) from the vehicle.


Installation Procedure

Notice: Refer to Notice - Installing Hoses Without Twists or Bends in Service Precautions.





1. Install the power steering pressure hose (3) to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

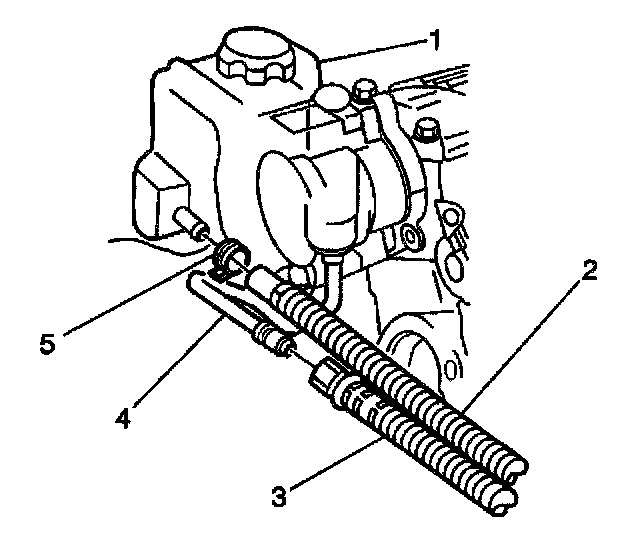

2. Install the power steering pressure hose (3) to the power steering pump pipe (4).
Tighten the fitting to 27 Nm (20 ft. lbs.)
3. Install the upper air cleaner assembly. Refer to Air Cleaner Assembly Replacement.
4. Raise the vehicle on a hoist. Refer to Vehicle Lifting.

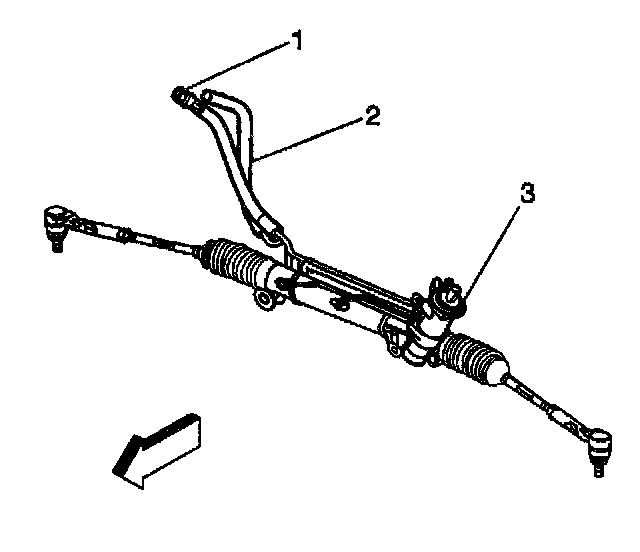

5. Install the power steering pressure hose (1) to the power steering gear (3).
Tighten the fitting to 27 Nm (20 ft. lbs.).
6. Lower the vehicle.
7. Bleed the power steering system. Refer to Bleeding Power Steering System.
