Home
>>
Oldsmobile
>>
2000
>>
Alero L4-144 2.4L DOHC VIN T SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
Keyless Entry

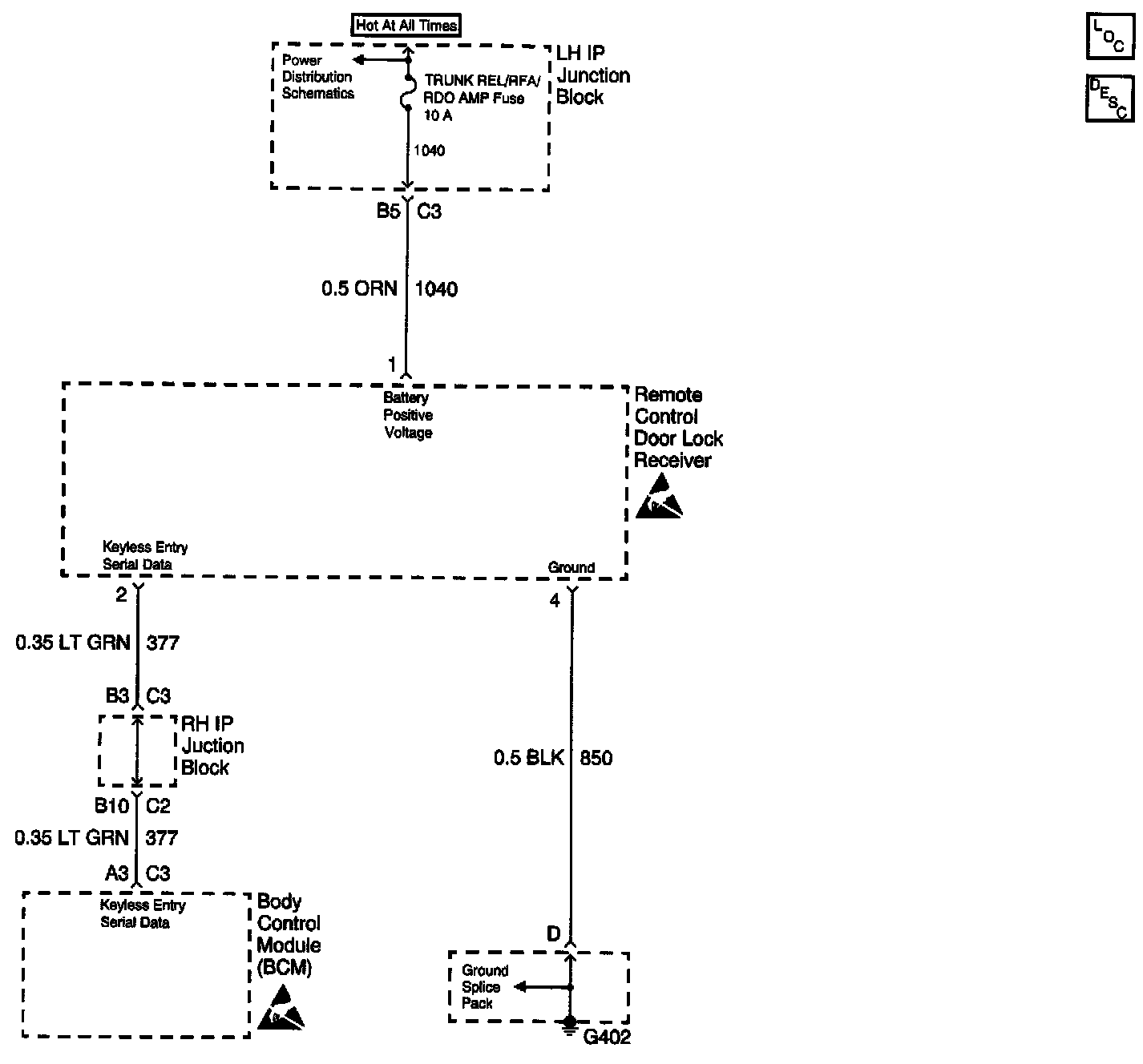

Keyless Entry Schematics: Remote Control Door Lock Receiver And BCM:
