Home >> Oldsmobile >> 1999 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Class 2 Serial Data, MIL, DLC, UART >> UART Serial Data Line

UART Serial Data Line

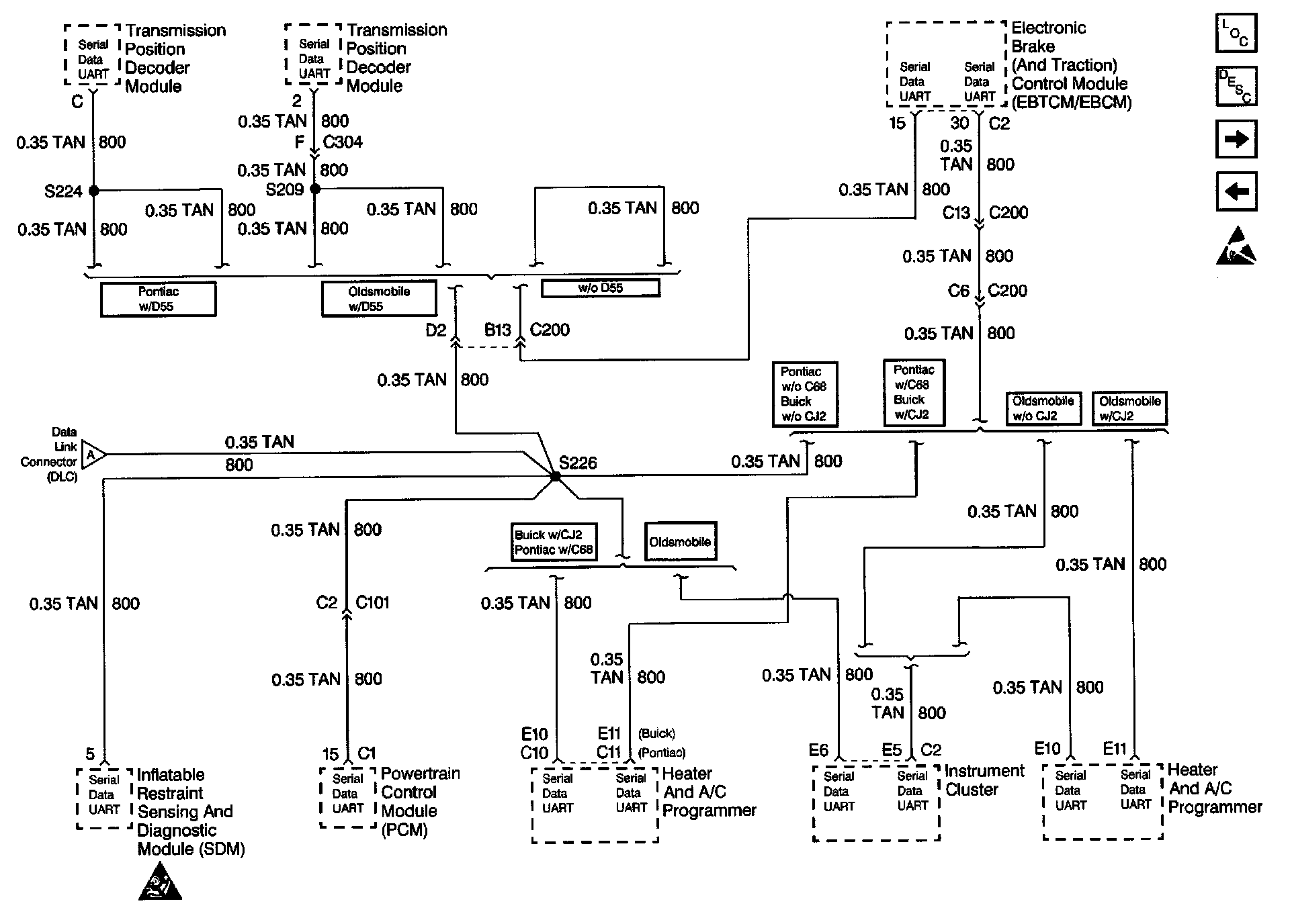

Data Link Connector (DLC) Schematics: UART Serial Data Line:
