Oldsmobile
>>
1999
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
HVAC System - Automatic
>>
Passenger Temperature Control: With CJ2
Passenger Temperature Control: With CJ2

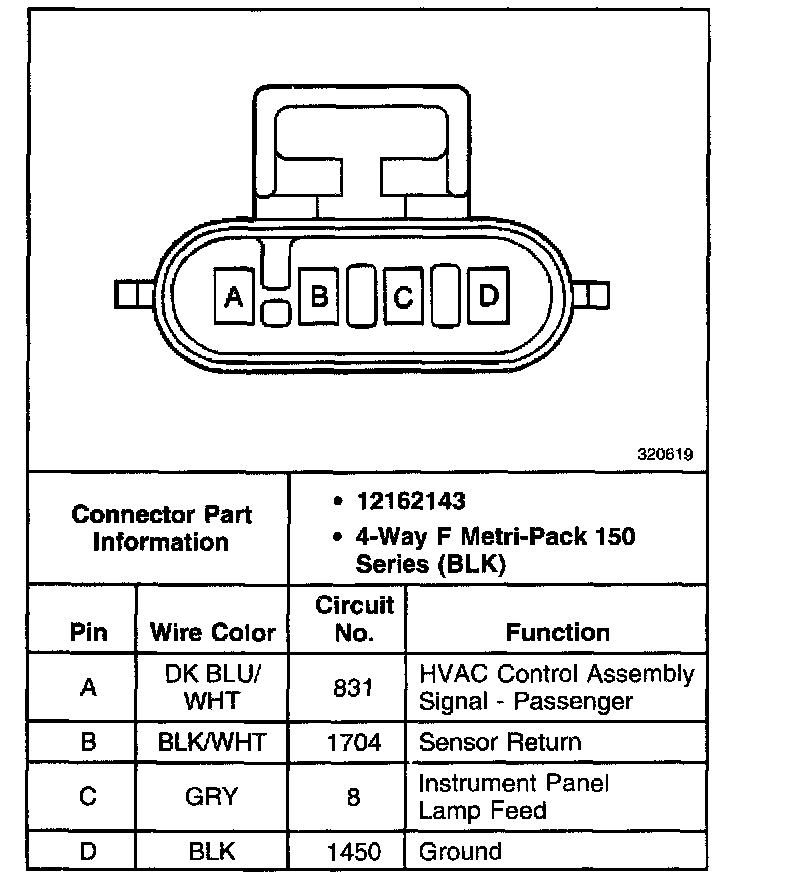

Passenger Temperature Control: With CJ2:
