Transaxle/Engine Bolts - Correct Positioning
File In Section: 6 - EngineBulletin No.: 83-61-31
Date: October 1998
INFORMATION
Subject:
Transaxle/Engine Bolts
Models:
1999 Oldsmobile Intrigue with 3.5L, V-6 Engine (VIN H - RPO LX5)
This bulletin is being issued to emphasize the importance of returning Transaxle/Engine bolts to their original positions. Transaxle/Engine bolts are not interchangeable.

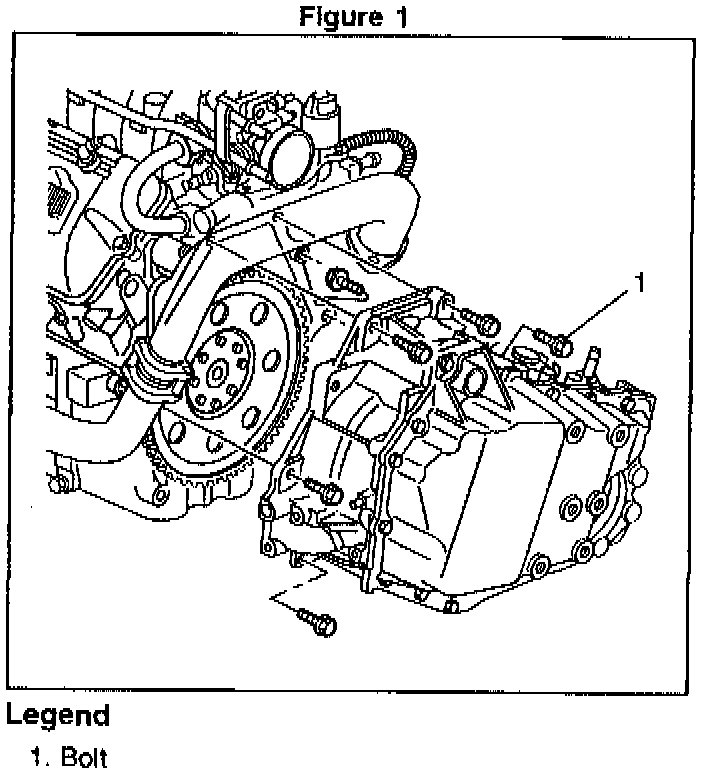

The bolts installed in the # 1 position (see Figure 1) is 2 mm (5/64 in.) shorter than the other bolts and requires the use of thread sealant.
Important:
If the # 1 bolt is replaced with one of the longer bolts, damage may occur to the engine oil gallery passage.
