Accelerator Controls Cable Bracket Replacement

REMOVAL PROCEDURE




1. Remove the air cleaner intake duct.

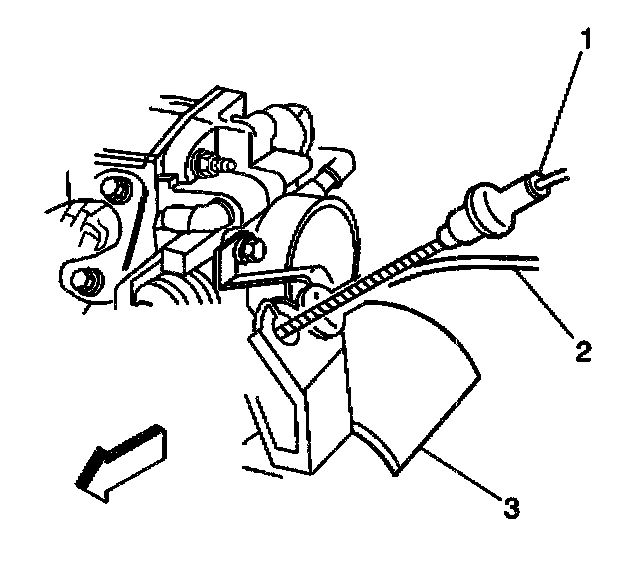

2. Remove the cruise control cable (2) from the bracket (3).
3. Remove the accelerator controls cable (3) from the bracket (1).




4. Remove the bolts from the accelerator controls cable bracket (2).

INSTALLATION PROCEDURE




1. Install the accelerator controls cable bracket.

Tighten
Tighten the bolts to 9 N.m (80 lb in).




2. Install the accelerator controls cable (3) to the bracket (1).
3. Install the cruise control cable (2) to the bracket (3).
4. Install the air cleaner intake duct.
