AIR System - MIL ON, DTC P0410 Set

File In Section: 06 - Engine/Propulsion System

Bulletin No.: 00-06-04-048

Date: November, 2000

Subject:
Service Engine Lamp Illuminated with DTC P0410
(Replace Air Injection Reaction (AIR) Pump Relay)

Models:
1999 Oldsmobile Intrigue
with 3.5L Engine (VIN H - RPO LX5) - YF5, NG1 or NB1 Emissions

Attention:
"GM of Canada" and "IPC" Dealers are not authorized to utilize this Service Bulletin.

Condition
Some customers may comment that the Service Engine Soon lamp is Illuminated.

Cause
The Air Injection Reaction (AIR) pump relay may be sticking in the closed position, which may cause air pump damage.

Correction
If DTC P0410 is set and normal diagnostics lead to the replacement of the AIR pump, inspect the AIR relay in the Bussed Electrical Center (BEC). If the P/N is 12193604, replace the relay with P/N 12177236, as well as the AIR pump.

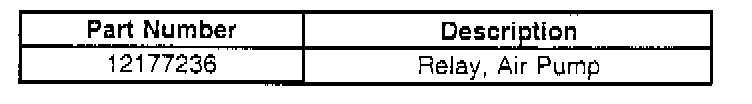

Parts Information
Parts are currently available from GMSPO.

Warranty Information





For vehicles repaired under warranty, use the table.
