Evaporative Emission Control Canister: Service and Repair

EVAP CANISTER REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Hoist and Additional Support Caution in Service Precautions.

1. Raise the vehicle.
2. Remove the rear wheel.
3. Remove the fascia splash shield.
4. Remove the hoses from canister. Mark the hoses to ensure correct installation on new canister.

IMPORTANT: Inspect the canister hoses for damage or deterioration. Refer to Emission Hose Routing Diagram for the proper routing of canister hoses. When replacing the lines, use the correct replacement part.

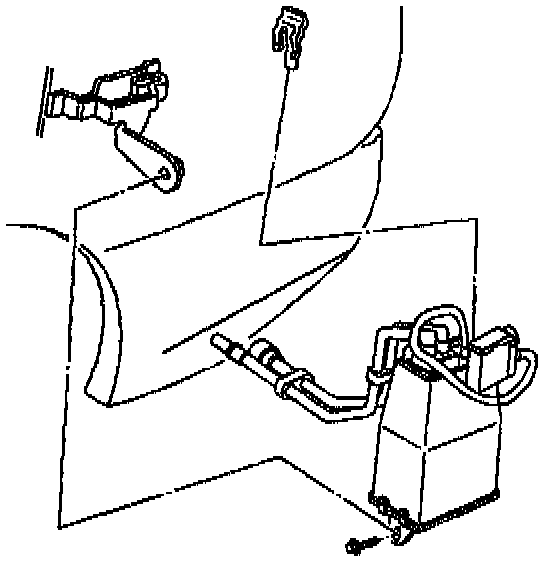

5. Remove the canister to canister bracket retaining bolt.
6. Remove the canister.

INSTALLATION PROCEDURE
1. Install the canister.
2. Tighten the canister to canister bracket bolt.
3. Install the hoses to canister. Make sure the connections are correct.
4. Install the fascia splash shield and wheel assembly.
5. Install the rear wheel.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Torque the wheel lug nuts to 140 N.m (104 lb ft).

6. Lower the vehicle.
