AIR Solenoid Valve

REMOVAL PROCEDURE




1. Disconnect the electrical connector.
2. Disconnect the throttle body vacuum line from the electrical solenoid.

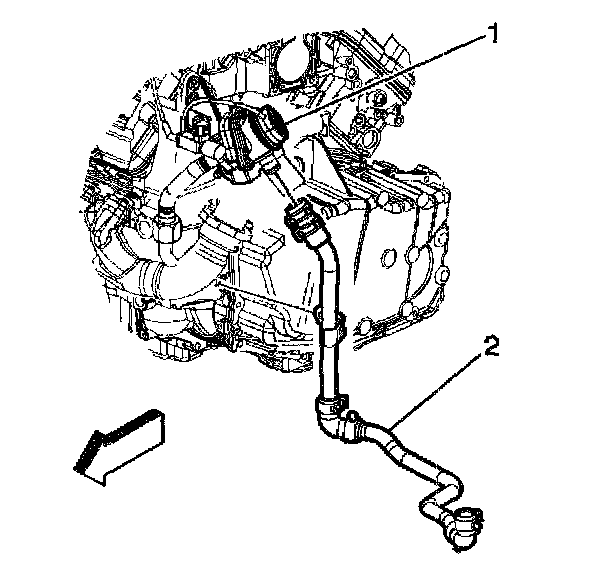

3. Loosen and lower both AIR pump exhaust hose pinch clamps down onto the metal portion of the AIR pipe (2).

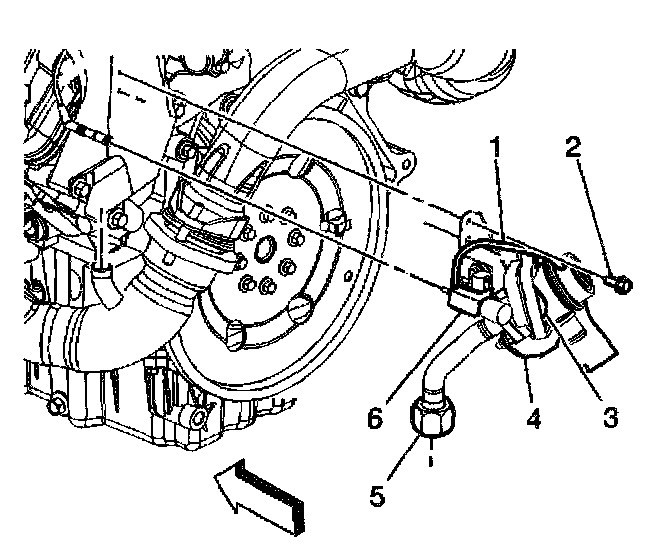

4. Remove the 2 mounting bolts (2) that attach the AIR Solenoid Valve assembly to the torque strut bracket.
5. Loosen the flexible exhaust pipe nut (5) from the exhaust manifold.
6. Remove the AIR Solenoid Valve assembly from the exhaust manifold and from the AIR pipe.

INSTALLATION PROCEDURE




1. Install the AIR Solenoid Valve assembly onto the AIR pipe.
2. Hand tighten the flexible exhaust pipe nut (5) to the exhaust manifold.
3. Install the AIR Solenoid Valve assembly to the torque strut bracket using the 2 mounting bolts (2).

Tighten
Tighten the mounting bolts to 9 N.m (80 lb in).
Tighten the flexible exhaust pipe nut (5) at the exhaust manifold to 60 N.m (44 lb ft).




4. Connect the AIR pump exhaust pipe (2) to the AIR Solenoid Valve (1).
5. Move both AIR pump exhaust hose (2) pinch clamps back into position.
6. Connect the throttle body vacuum line to the electrical solenoid.
7. Connect the electrical connector.
