AIR Pump Exhaust Pipe

REMOVAL PROCEDURE




1. Remove the retaining screws from the front portion of the left front wheel well/splash shield.
2. Lower the splash shield far enough to gain access to the AIR pump assembly.

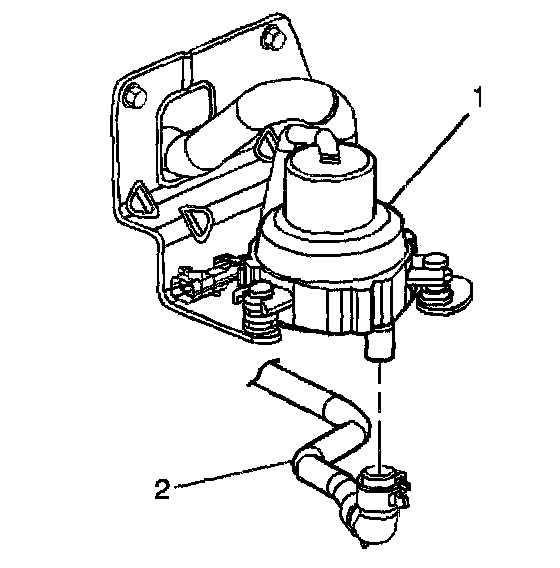

3. Loosen and lower the AIR exhaust pipe (2) hose pinch clamp.
4. Remove the AIR pump exhaust pipe mounting bolt from the transaxle.
5. Disconnect the AIR exhaust pipe (2) from the AIR pump (1).




6. Loosen and lower the AIR pump exhaust hose (2) pinch clamp at the AIR Solenoid Valve (1).
7. Disconnect the AIR pump exhaust pipe (2) from the AIR Solenoid Valve (1).
8. Remove the AIR pump exhaust pipe.

INSTALLATION PROCEDURE




1. Position the AIR pump exhaust pipe (2) between the AIR pump and the AIR Solenoid Valve (1).
2. Connect the AIR pump exhaust pipe (2) to the AIR Solenoid Valve (1).
3. Place the AIR pump exhaust hose (2) pinch clamp around the hose connection at the AIR Solenoid Valve (1) inlet port.




4. Attach the AIR exhaust pipe (2) to the AIR pump (1) outlet port.
5. Place the AIR exhaust pipe pinch clamp around the AIR pump outlet port and exhaust hose connection.
6. Install the AIR pump exhaust pipe mounting bolt to the transaxle.

Tighten
Tighten the AIR pump exhaust pipe mounting bolt to 50 N.m (37 lb ft).

7. Raise the wheel well/splash shield into position.
8. Re-install the wheel well/splash shield retaining screws.
