Powertrain Controls

Power, Ground, MIL and DLC




Ignition Coil/Module

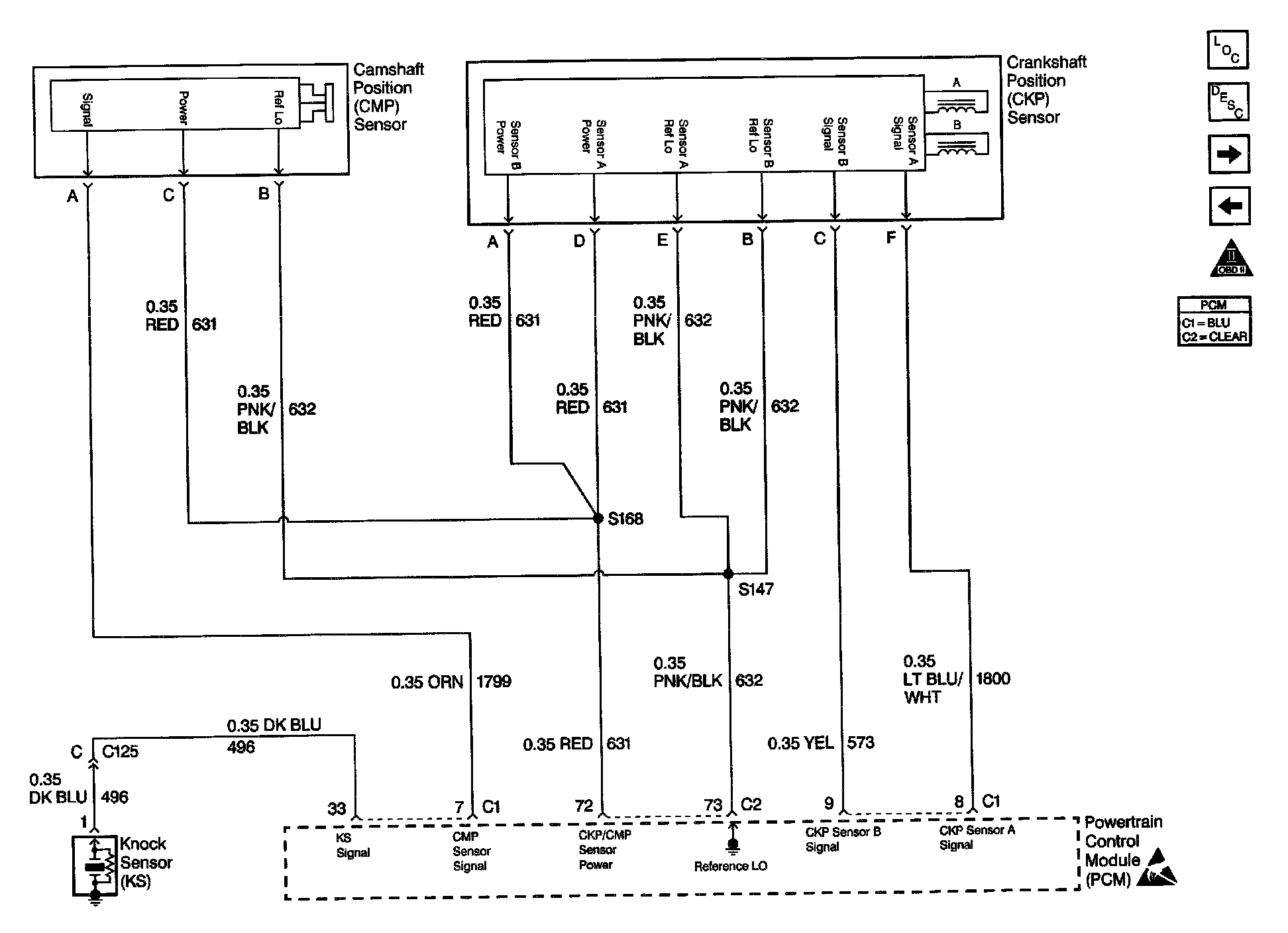

CKP, CMP and KS




Fuel Pump and Fuel Level Sensor




Fuel Injectors




Engine Data Sensors




HO2S 1 and HO2S 2




IAC and MAF




Cruise Control Module and VSS




[1][2]EVAP and EGR




Indicators




Transaxle Range Switch




Automatic Transaxle Controls (Part 1 of 2)




Automatic Transaxle Controls (Part 2 of 2)

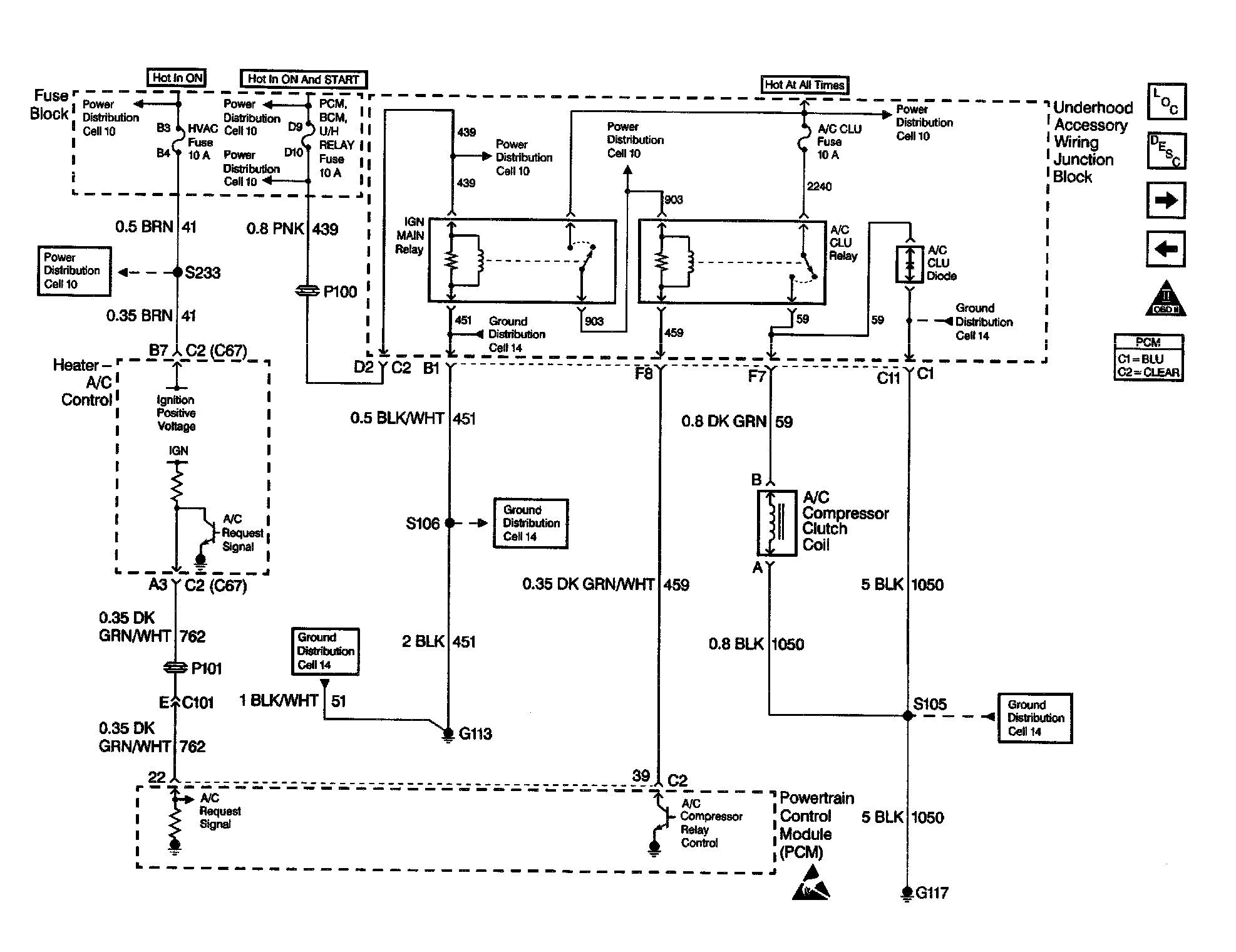

A/C Compressor Controls




Cooling Fan Controls
