Air Temperature Sensor ( Ambient / Intake ): Service and Repair

IAT SENSOR REPLACEMENT

REMOVAL PROCEDURE

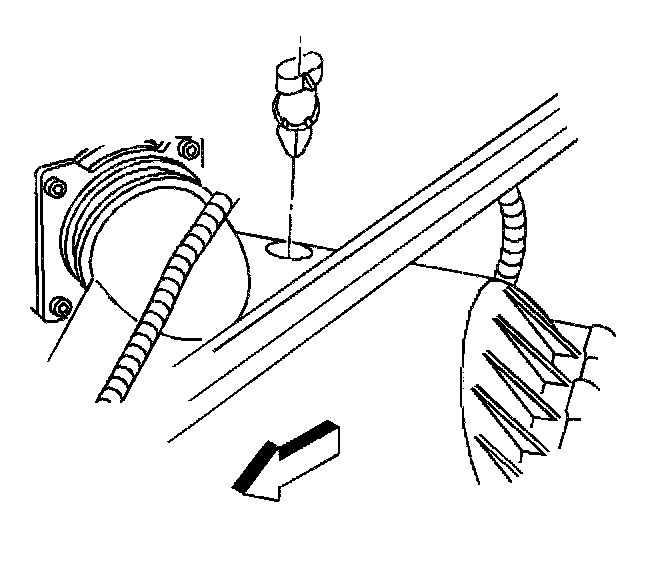

1. Disconnect the IAT sensor electrical connector (2) from the IAT sensor (1).




2. Grasp and rotate the IAT counter clockwise to unlock and remove from the air cleaner cover.

INSTALLATION PROCEDURE




1. Position and insert the IAT sensor into the air cleaner cover and rotate clockwise to lock.




2. Connect the IAT sensor electrical connector (2) to the IAT sensor (1).
