Timing Chain: Diagrams

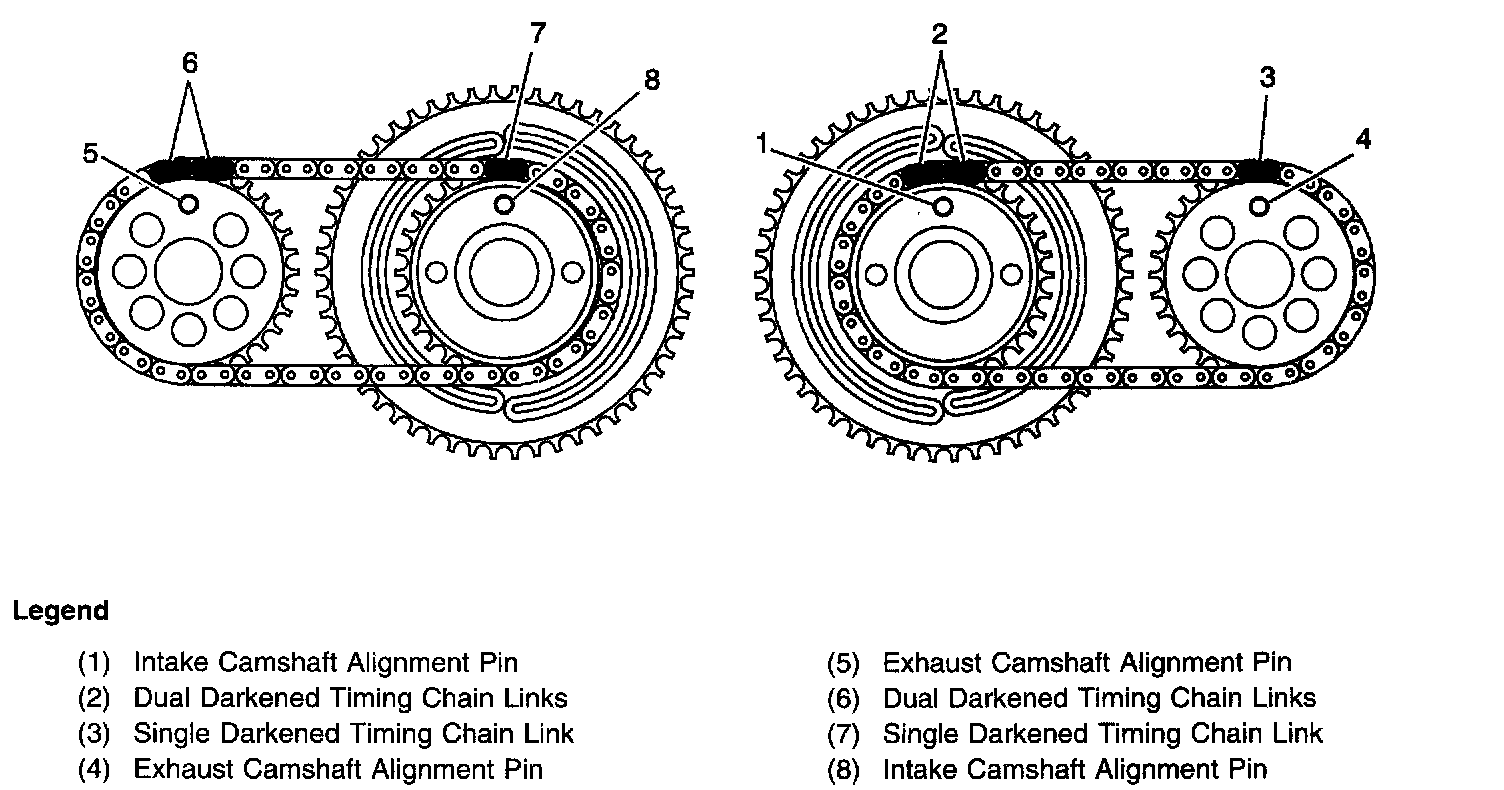

TIMING CHAIN (LX5 CAMSHAFT DRIVE SYSTEM SET AT BASE ENGINE TIMING)

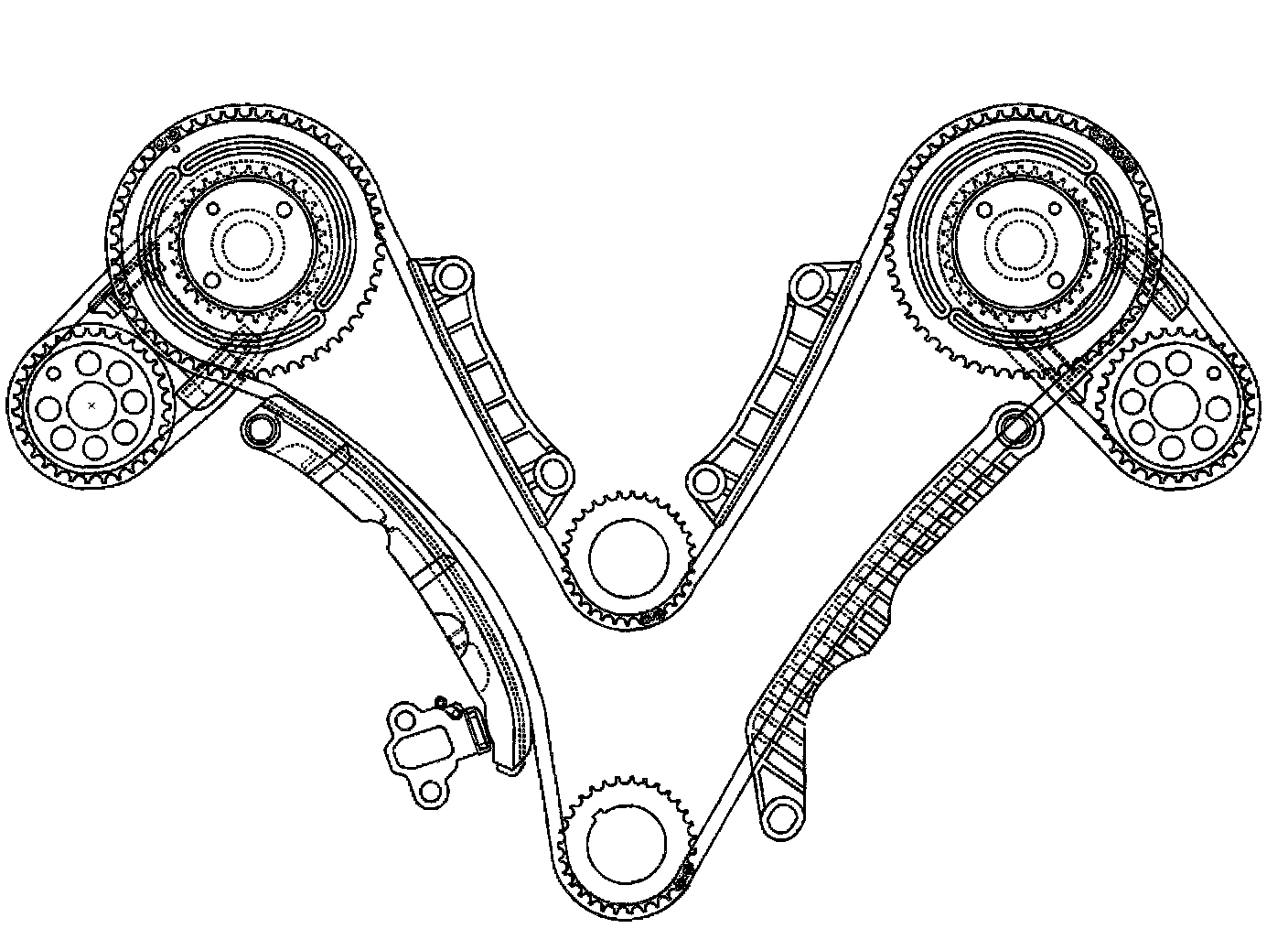

TIMING CHAIN (SECONDARY TIMING CHAINS (VIEWED FROM THE REAR OF THE ENGINE))
