Coolant Heater Replacement (Left)

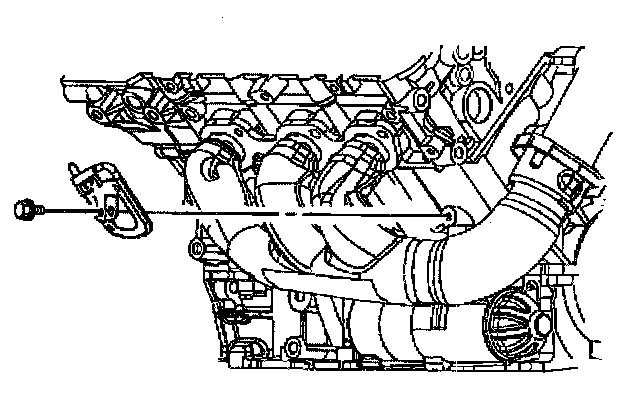

REMOVAL PROCEDURE





1. Raise the vehicle.
2. Disconnect the left (front) coolant heater cord at the left (front) coolant heater.





3. Remove the left (front) coolant heater retaining bolt.
4. Remove the left (front) coolant heater.

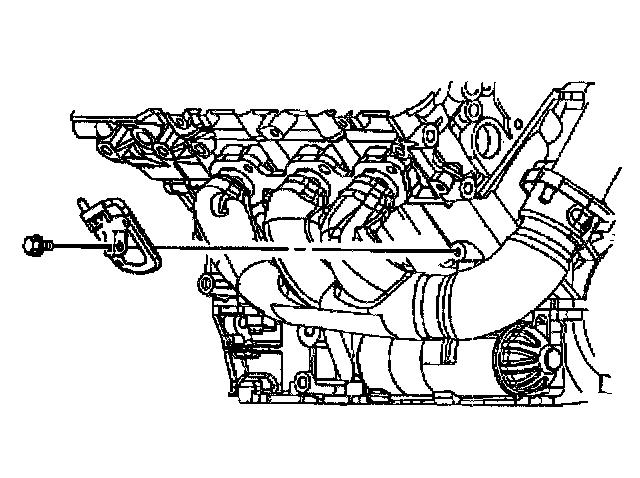

INSTALLATION PROCEDURE

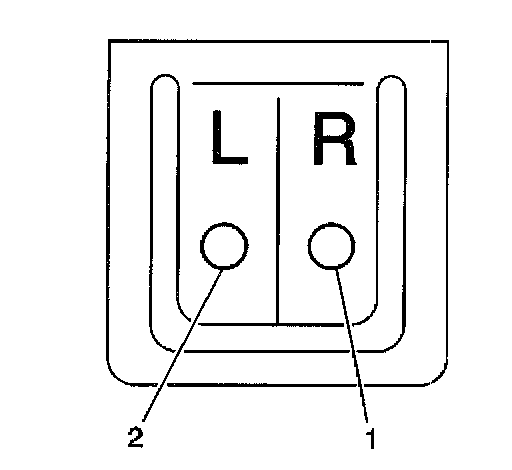

Important: Align the threaded hole in the engine block with the hole labeled L (2) on the left (front) coolant heater.





1. Install the left (front) coolant heater.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the left (front) coolant heater retaining bolt.
^ Tighten the left (front) coolant heater bolt to 9 Nm (80 inch lbs.).

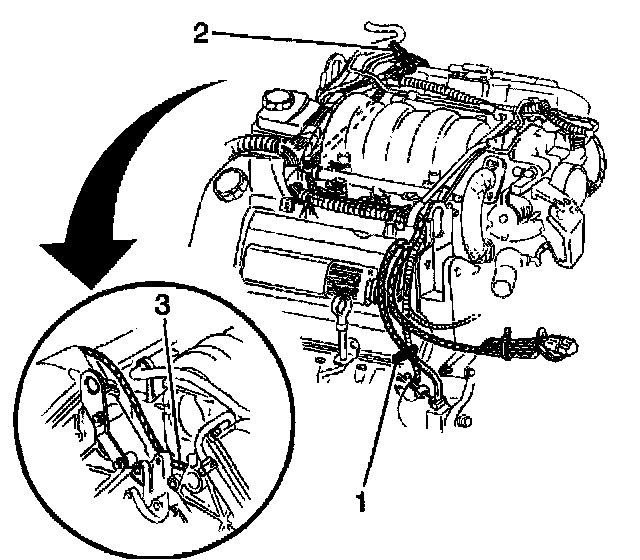

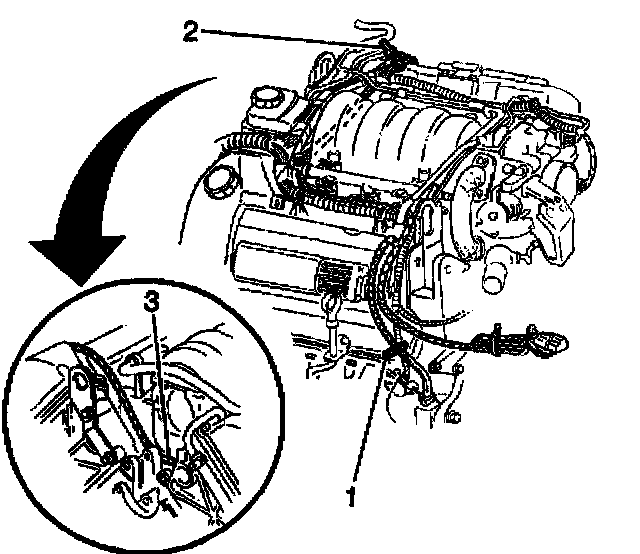

Notice: Refer to Engine Block Heater Cord Routing.

3. Connect the left (front) coolant heater cord to the left (front) coolant heater.
4. Lower the vehicle.
