Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

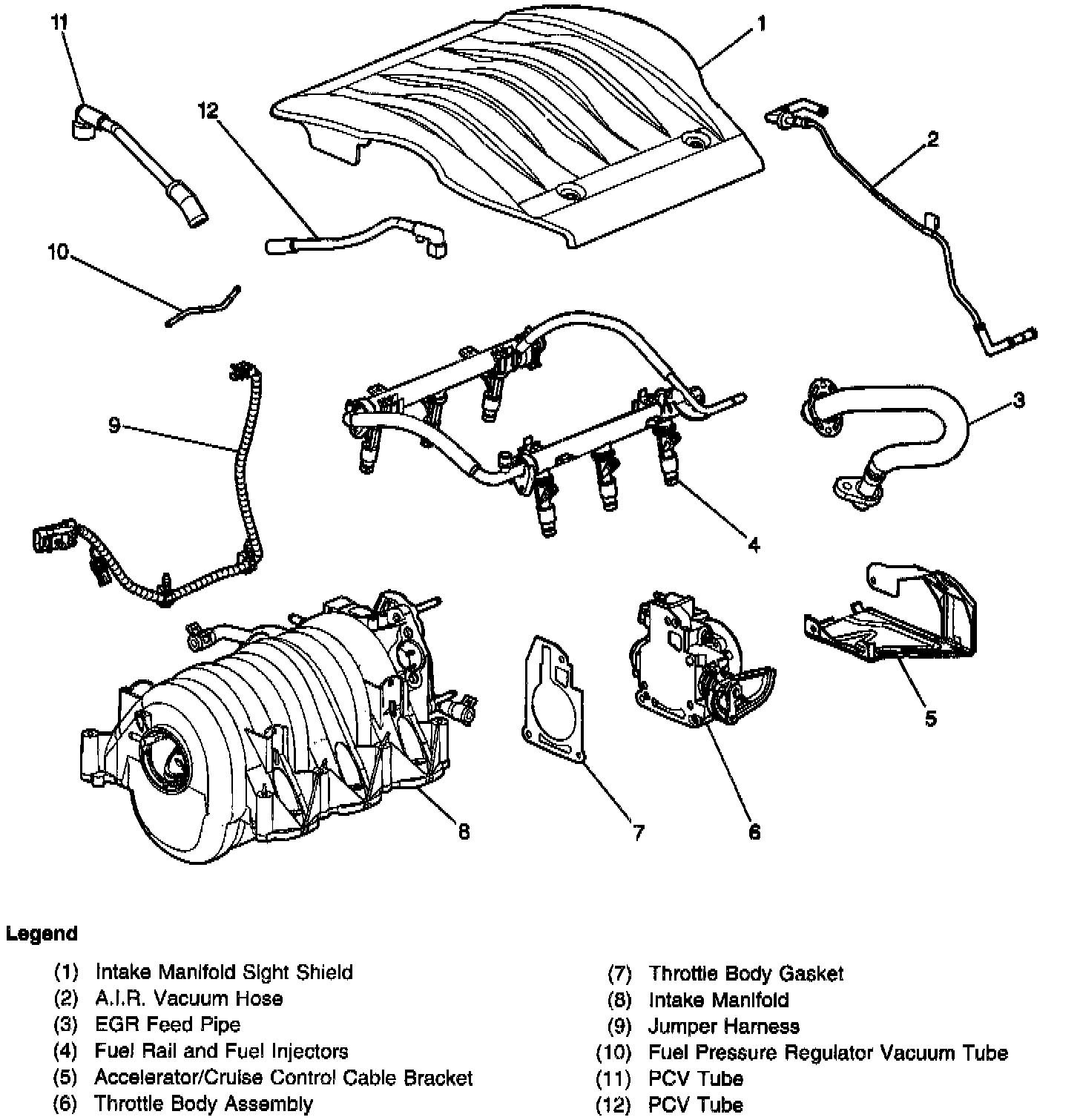

INTAKE MANIFOLD
AND FUEL COMPONENTS

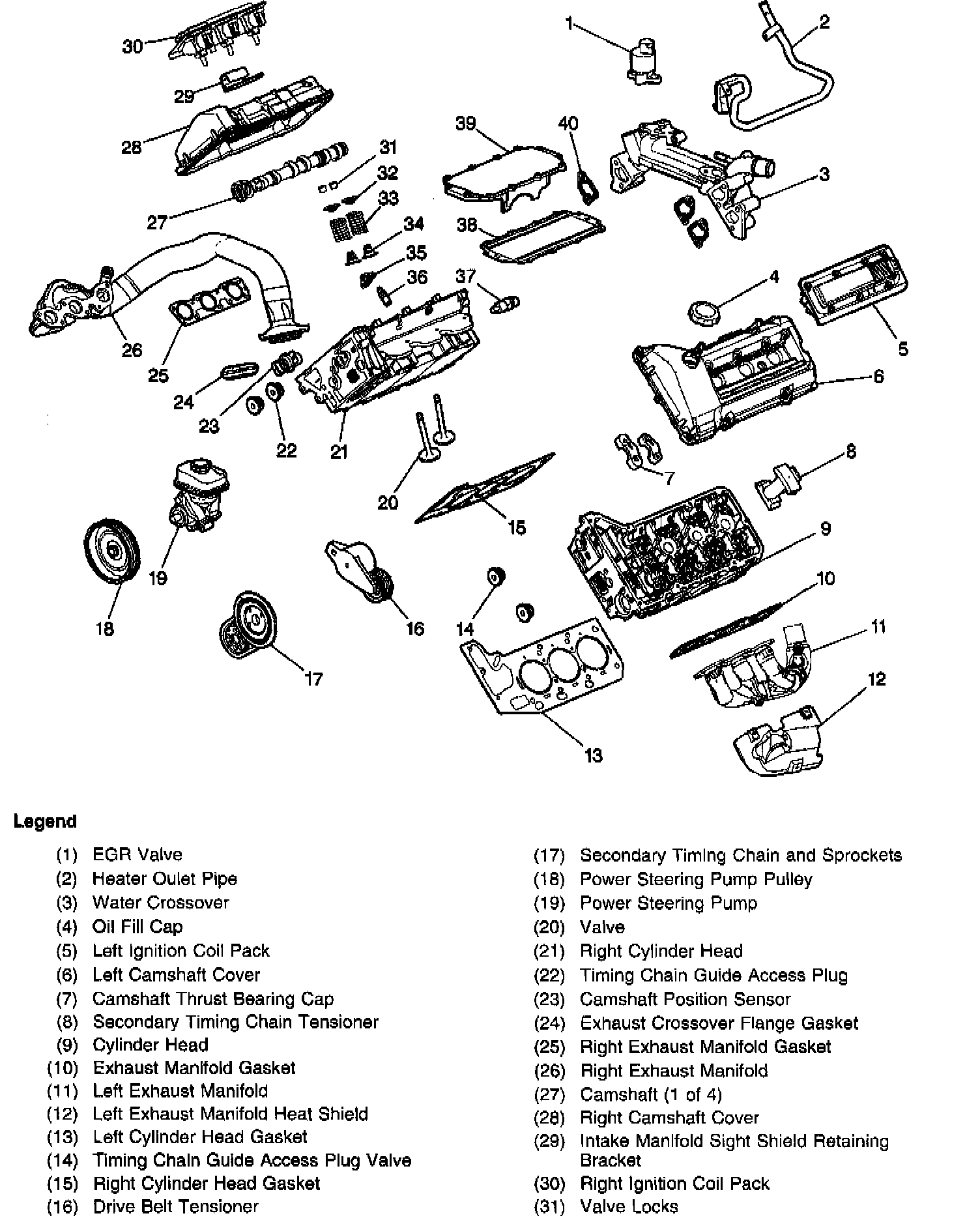

UPPER ENGINE COMPONENTS

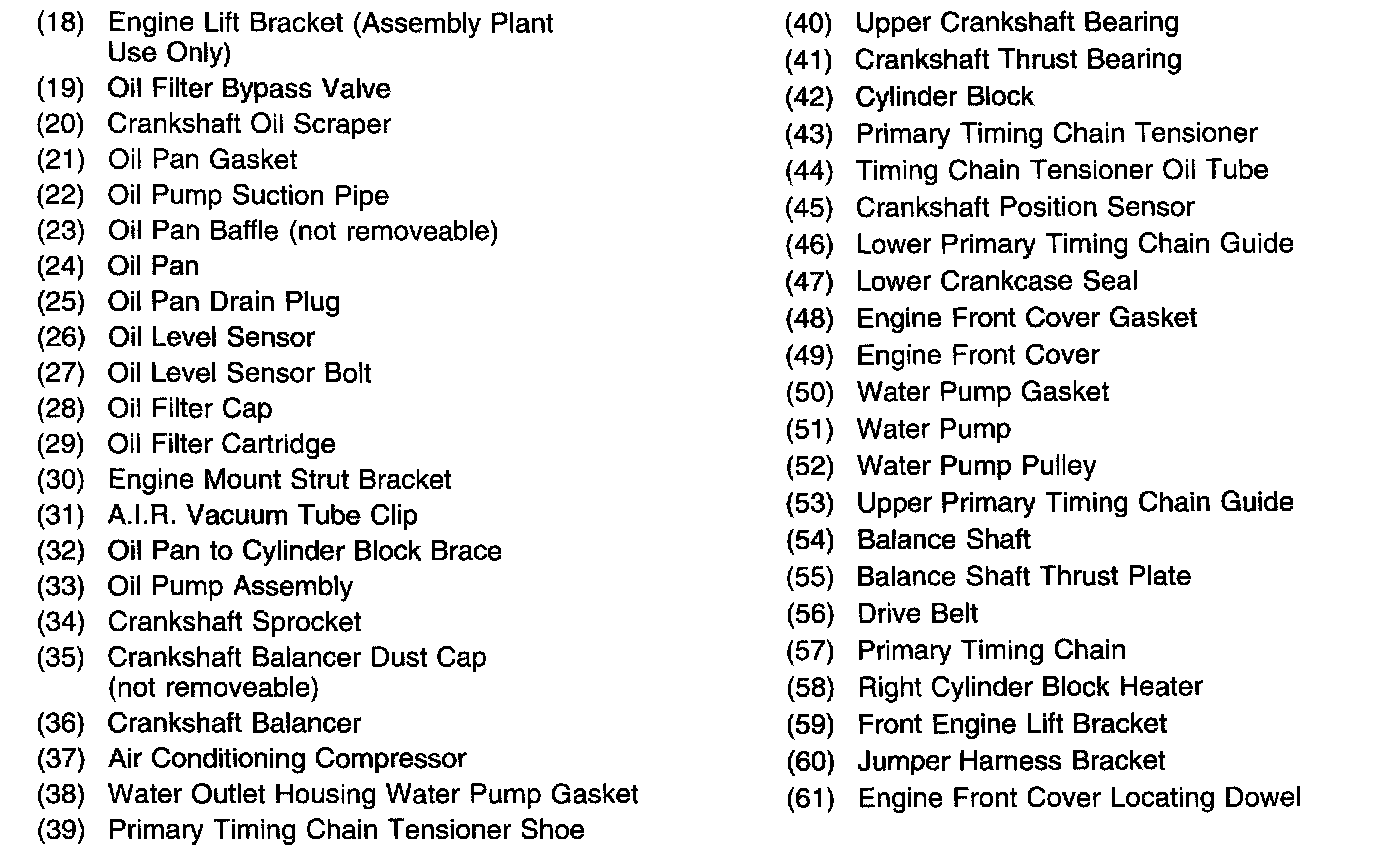

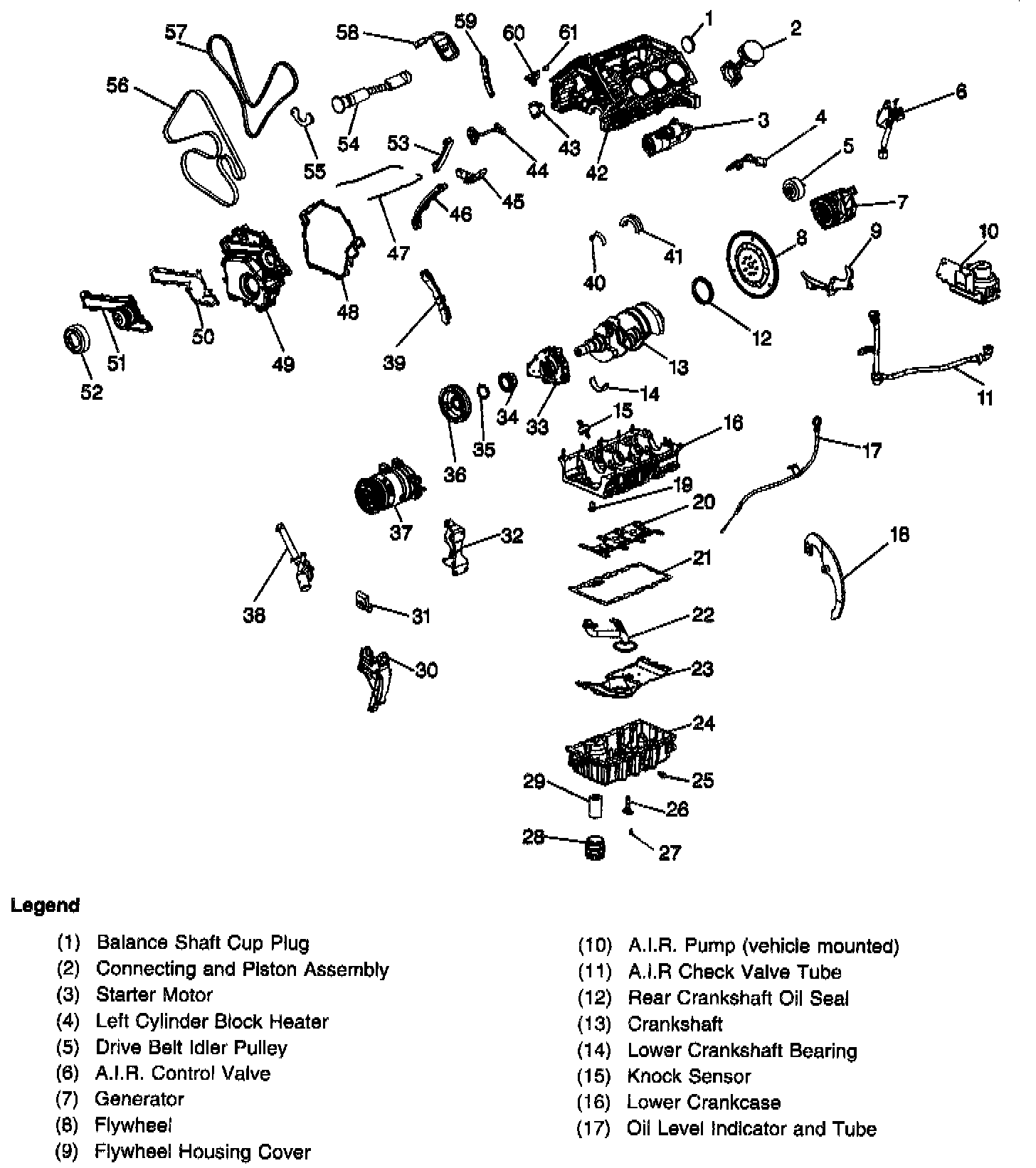

LOWER ENGINE COMPONENTS
