Home
>>
Oldsmobile
>>
1999
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
PCM, Instrument Cluster and Ground
PCM, Instrument Cluster and Ground

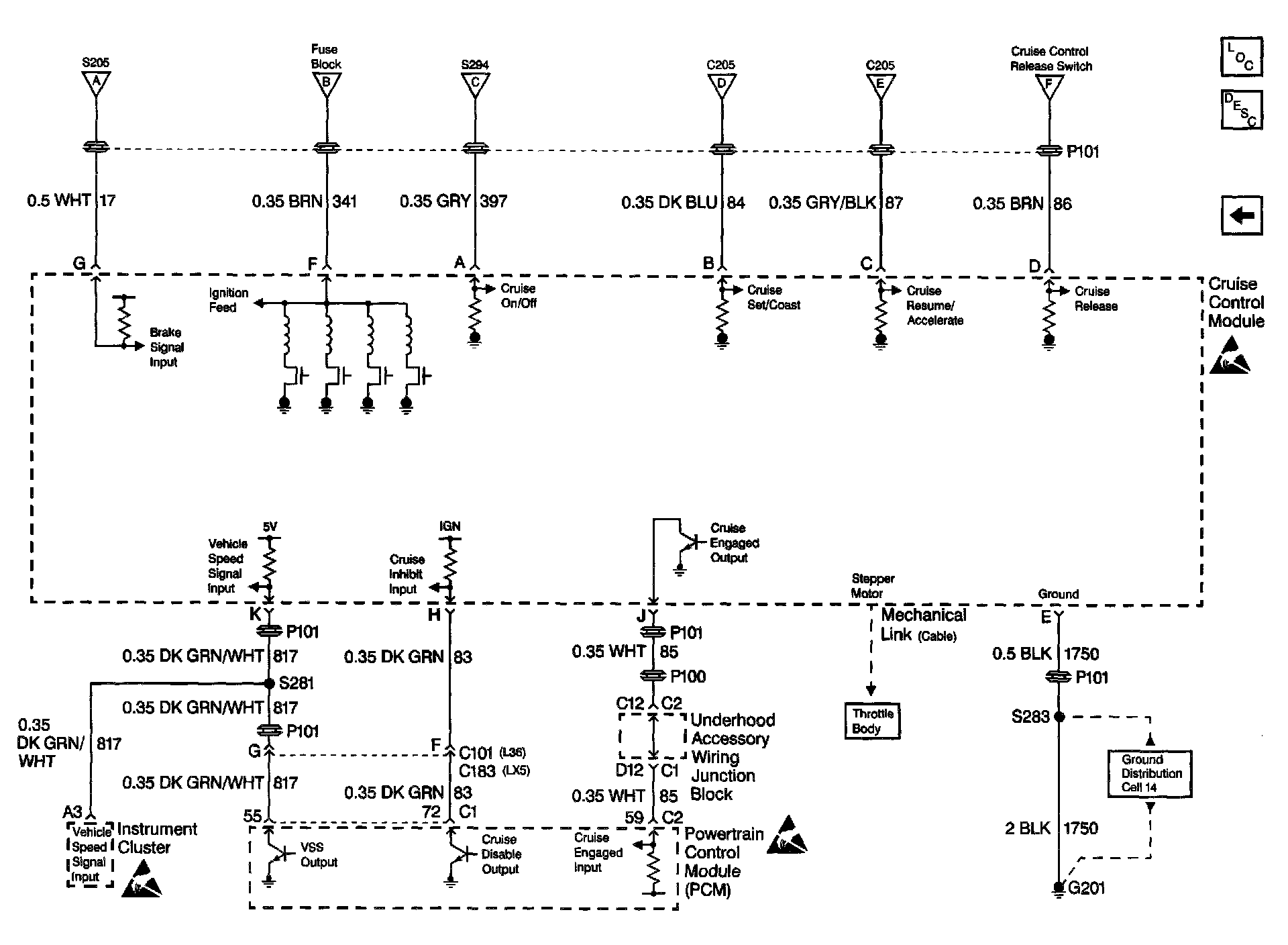

Cruise Control Schematics: PCM, Instrument Cluster And Ground:
