Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Theft Deterrent System Schematics (LX5)
Theft Deterrent System Schematics (LX5)

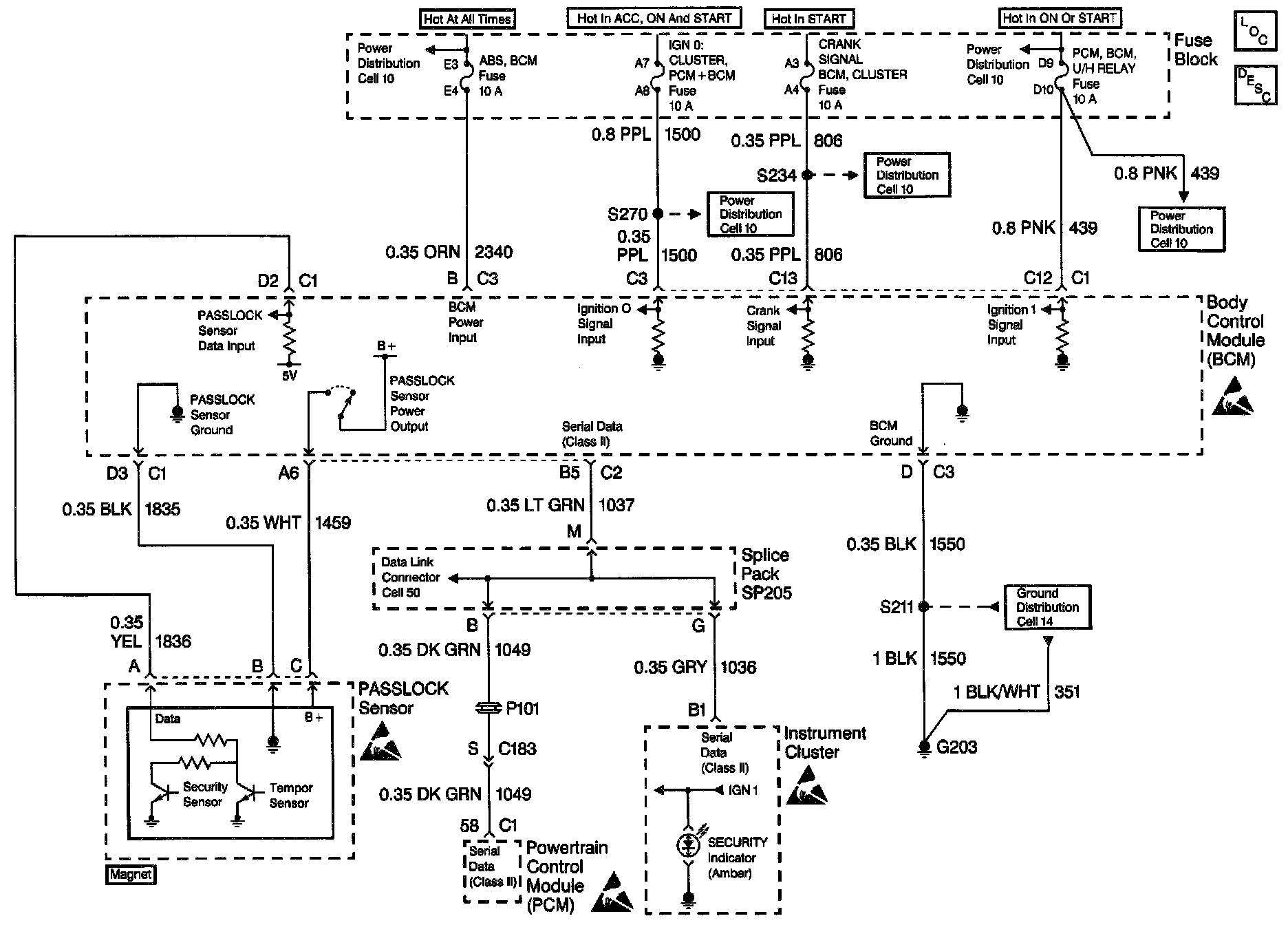

Theft Deterrent System Schematics (LX5):
