Theft Deterrent System Schematics (L36)
Theft Deterrent System Schematics (L36)

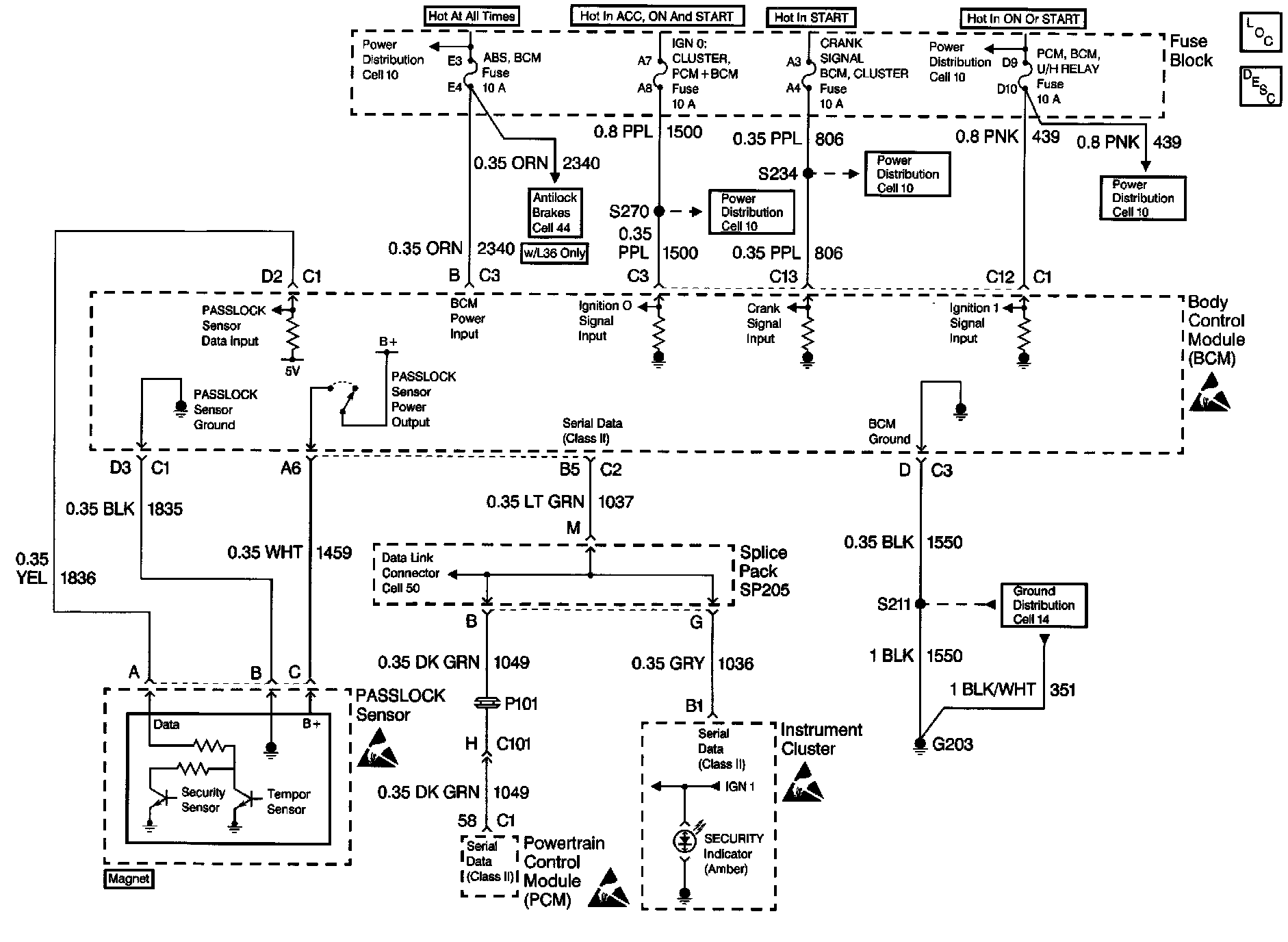

Theft Deterrent System Schematics (L36):
