Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
>>
Front
>>

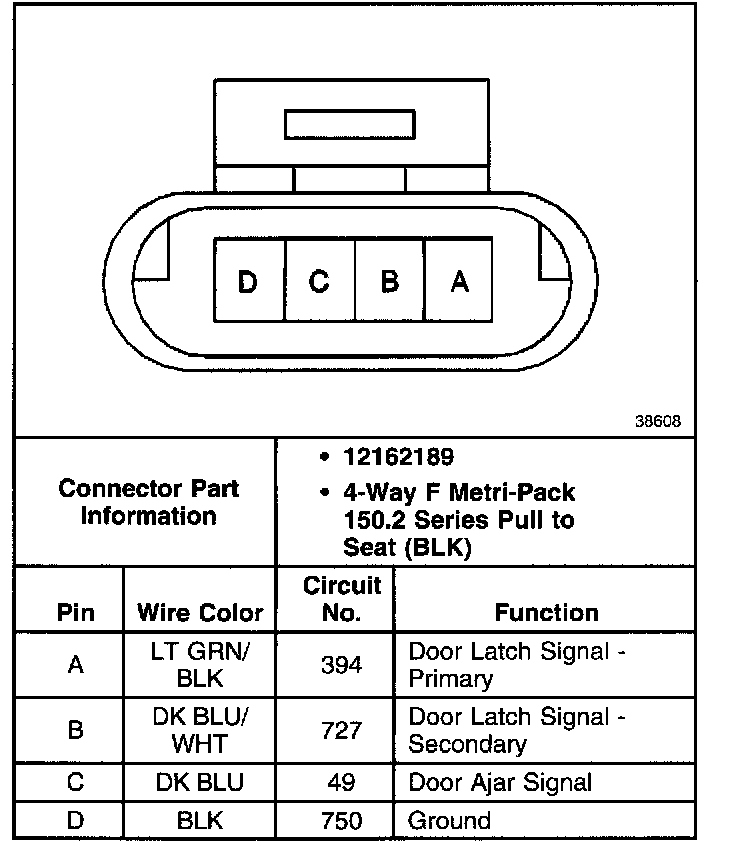

Door Lock (LF) C1 (Ajar Indicator Switch)
Door Lock (LF) C1 (Ajar Indicator Switch)
Door Lock (LF) C1 (Ajar Indicator Switch):
