Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Underhood Accessory Wiring Junction Block, C1-C5
>>
C2
C2

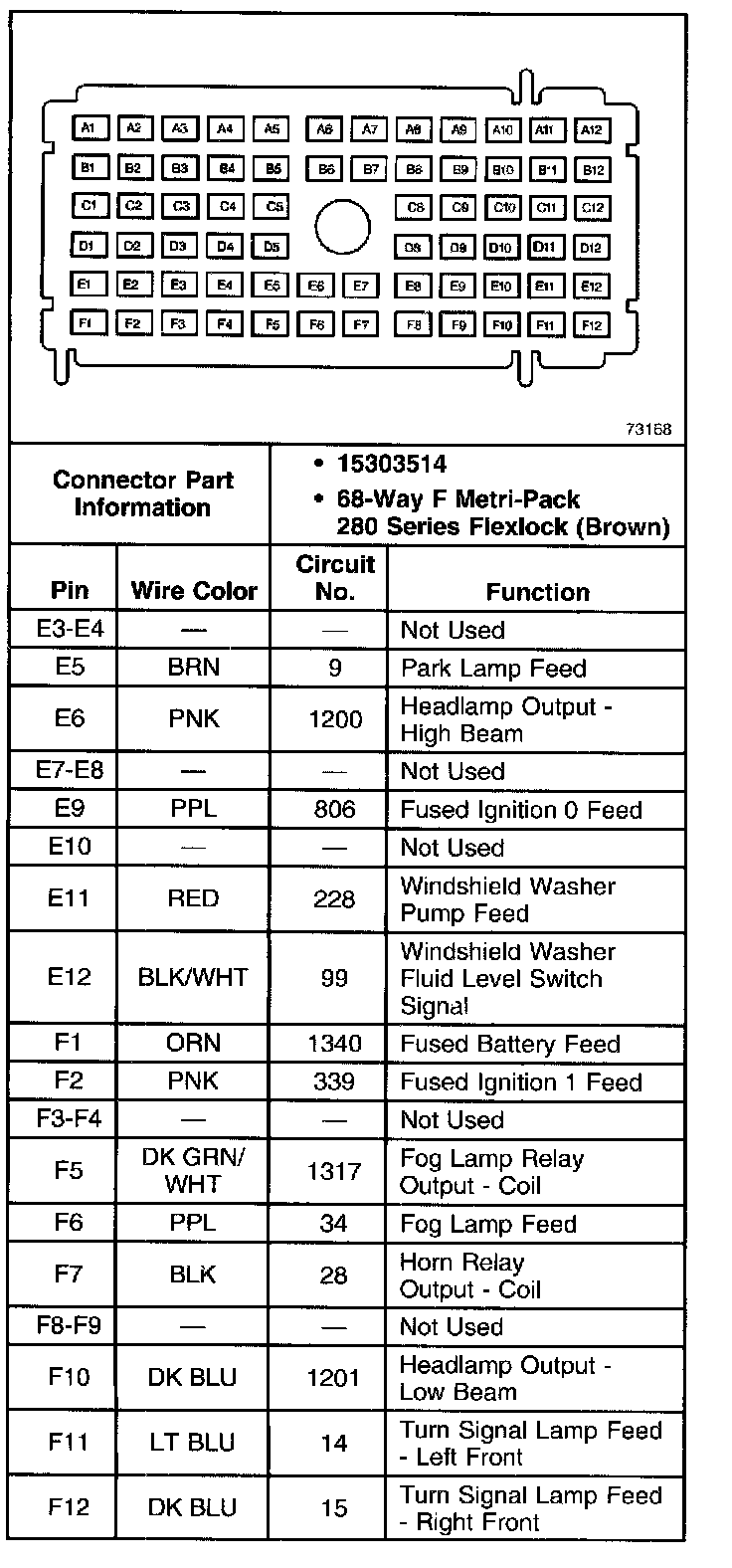

Underhood Accessory Wiring Junction Block C2 (Part 1 Of 2):

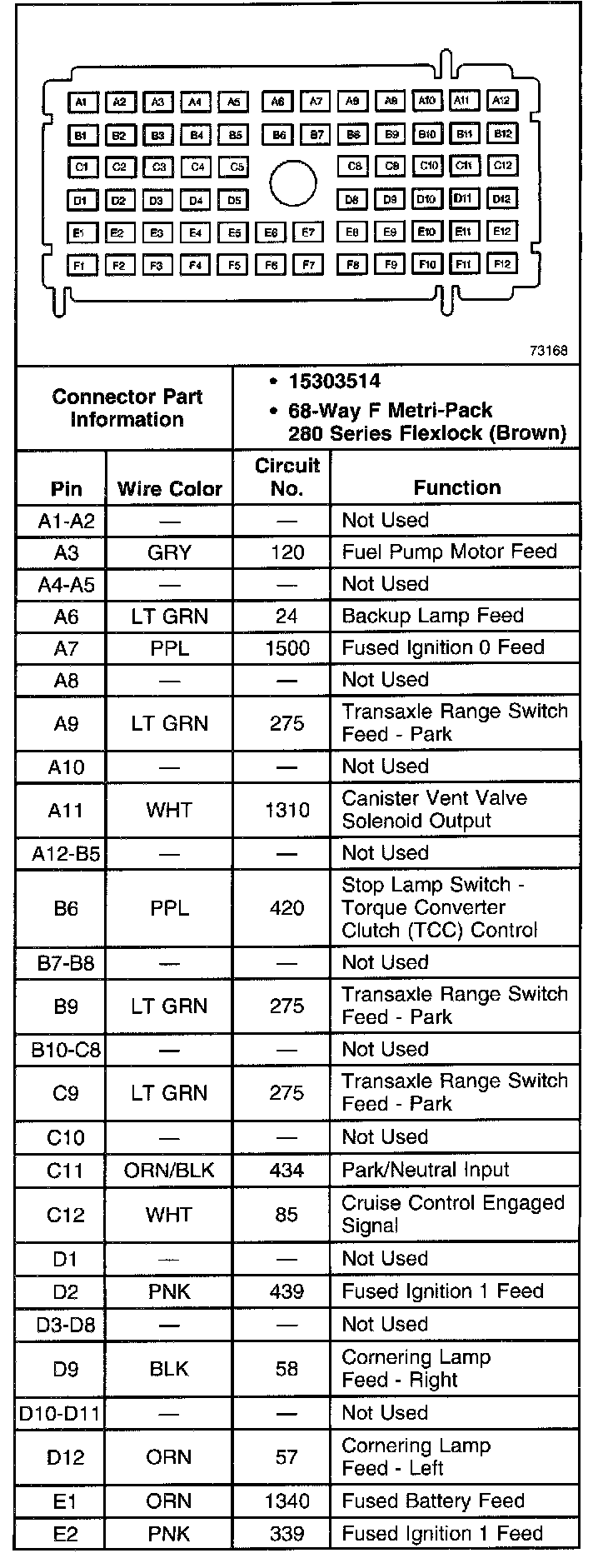

Underhood Accessory Wiring Junction Block C2 (Part 2 Of 2):
