Home
>>
Oldsmobile
>>
1999
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

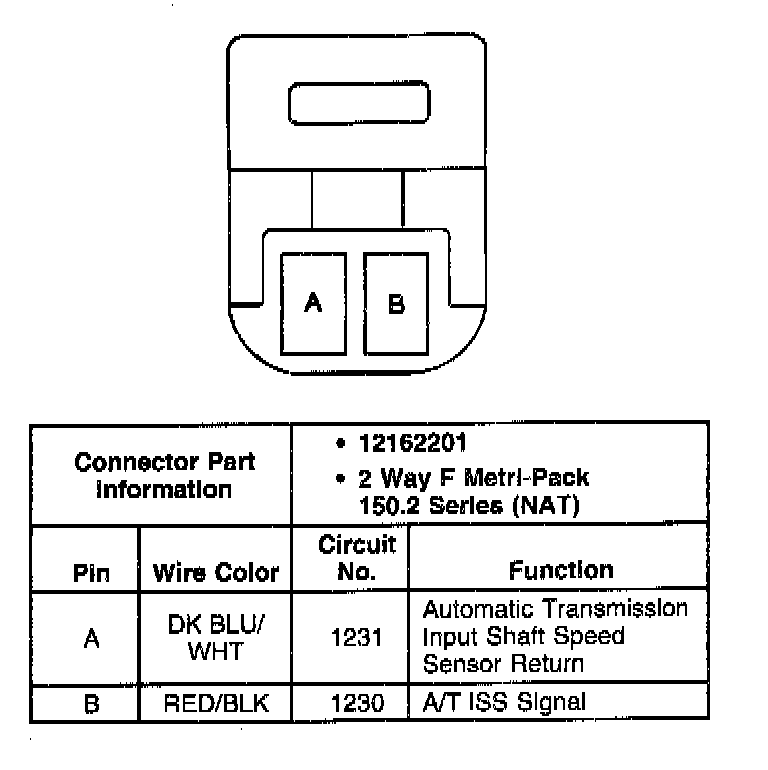

INPUT SPEED SENSOR
CONNECTOR, WIRING HARNESS SIDE
