Brake Pedal Reinforcement Replacement

REMOVAL PROCEDURE
1. Remove the instrument panel trim pad.
2. Remove the brake pedal bracket.
3. Remove the brake booster.

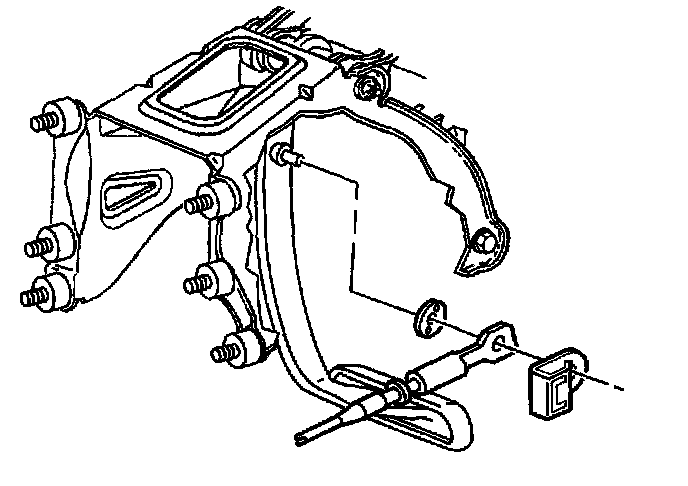

4. Remove the brake pedal reinforcement bracket mounting nuts from the front of the dash.
5. Remove the brake pedal reinforcement bracket.
6. Inspect all parts for wear. Repair or replace the components as needed.

INSTALLATION PROCEDURE

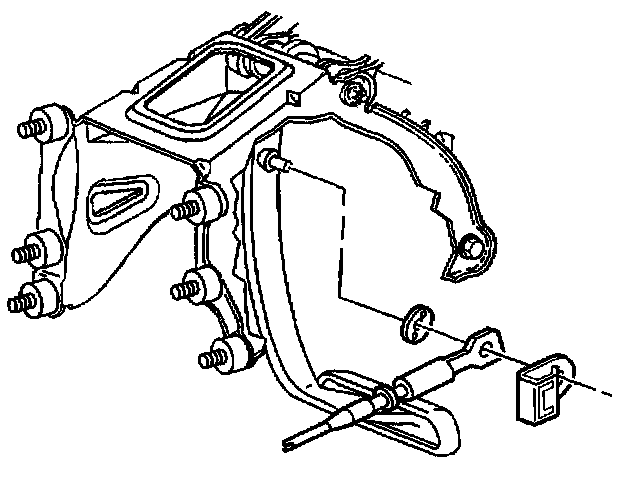

1. Install the brake pedal reinforcement bracket.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the brake pedal reinforcement bracket mounting nuts.
- Tighten the brake pedal reinforcement bracket nuts to 50 Nm (37 ft. lbs.).

3. Install the brake booster.
4. Install the brake pedal bracket.
5. Install the instrument panel trim pad.
6. Adjust the stoplamp switch.
