P1133

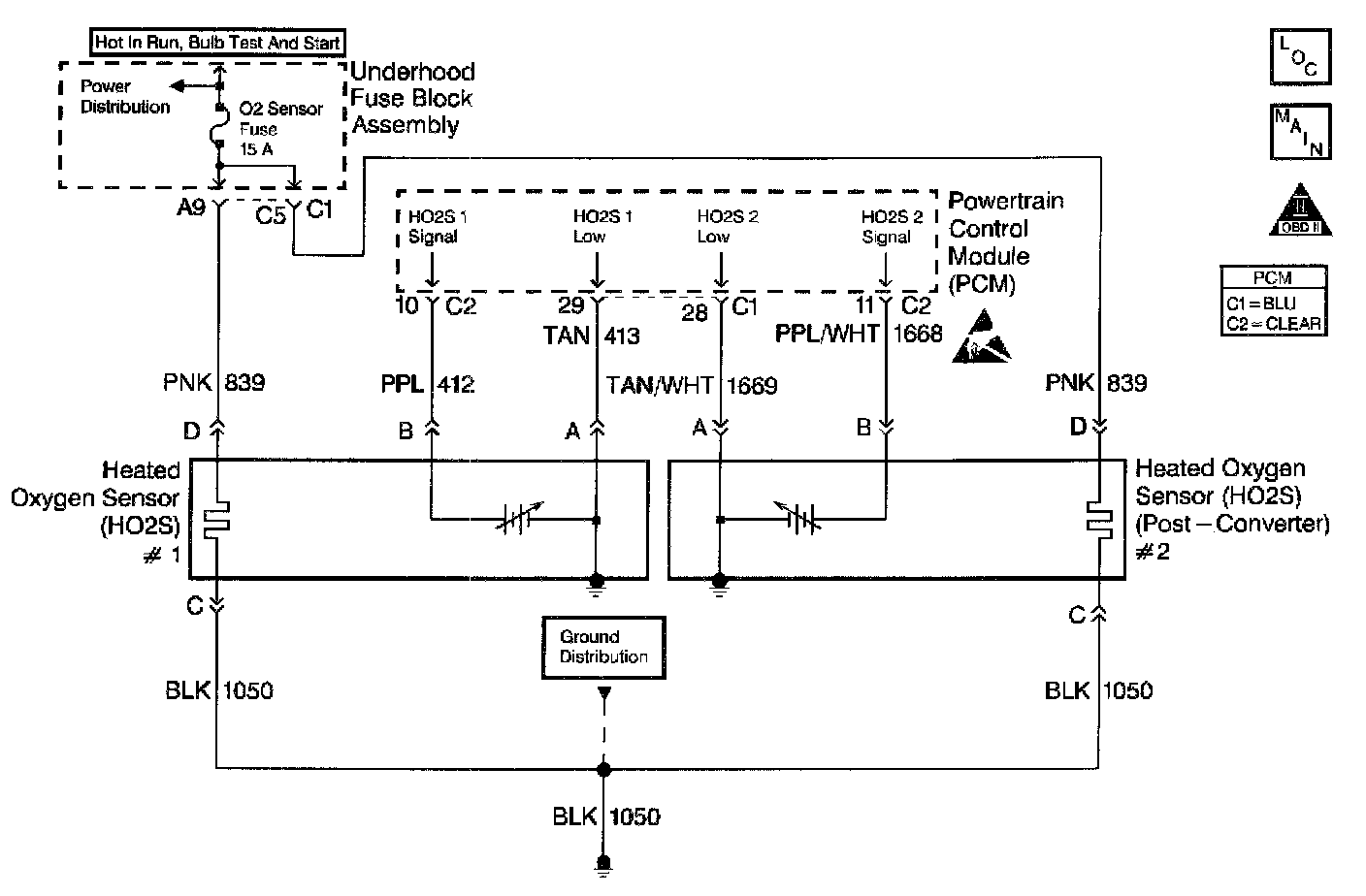

Circuit Description
The PCM monitors the Heated Oxygen Sensor (HO2S) activity for 100 seconds. During this test period the PCM counts the number of times that the HO2S signal voltage crosses the rich to lean and lean to rich thresholds. If the PCM determines that the HO2S did not switch enough times, DTC P1133 will be set. A lean to rich switch is determined when the HO2S voltage changes from less than 300 mV to greater than 600 mV. A rich to lean switch is determined when the HO2S voltage changes from more than 600 mV to less than 300 mV.

Conditions for Running the DTC
^ No active fuel trim, fuel injector circuit, Misfire, EVAP, EGR, AIR, TP, IAT, MAP, ECT, CKP, or MAF sensor DTCs present.
^ P0131, P0132 or P0135 not set
^ System voltage is greater than 9 volt.
^ Closed Loop
^ Engine running for at least 3.3 minutes.
^ ECT greater than 75°C (167°F)
^ Engine speed between 1000 and 3000 RPM
^ MAF between 15 and 40 gm/s
^ Above conditions stable for 3 seconds

Conditions for Setting the DTC
^ The above conditions are present for a 90 second monitoring period.
^ The PCM monitors fewer than 5 rich to lean and 5 lean to rich switches for HO2S 1.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

Conditions for Clearing the MIL/DTC
^ The PCM turns the MIL Off after three consecutive drive trips that the diagnostic runs and does not fail.
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles if this or any Other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice: Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the following items:
^ The PCM harness connectors
^ The electrical center fuse/relay cavities
^ The component terminals
^ The component harness connector

Using this kit will prevent damage caused by the improper probing of connector terminals.
A malfunction in the HO2S heater ignition feed or ground circuit may cause the DTC to set. Check HO2S heater circuitry for intermittent malfunctions or poor connections. If connections and wiring are OK and the DTC continues to set, replace the HO2S 1.
Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition that caused the DTC to set occurs. This may assist in diagnosing the condition.

The Heated Oxygen Sensors require an air reference (outside air) for proper operation. The air reference is supplied through the HO2S wiring. Inspect the HO2S wires and connections for breaks or contamination. Do not use solder to repair HO2S wiring. Solder will obstruct the air path.

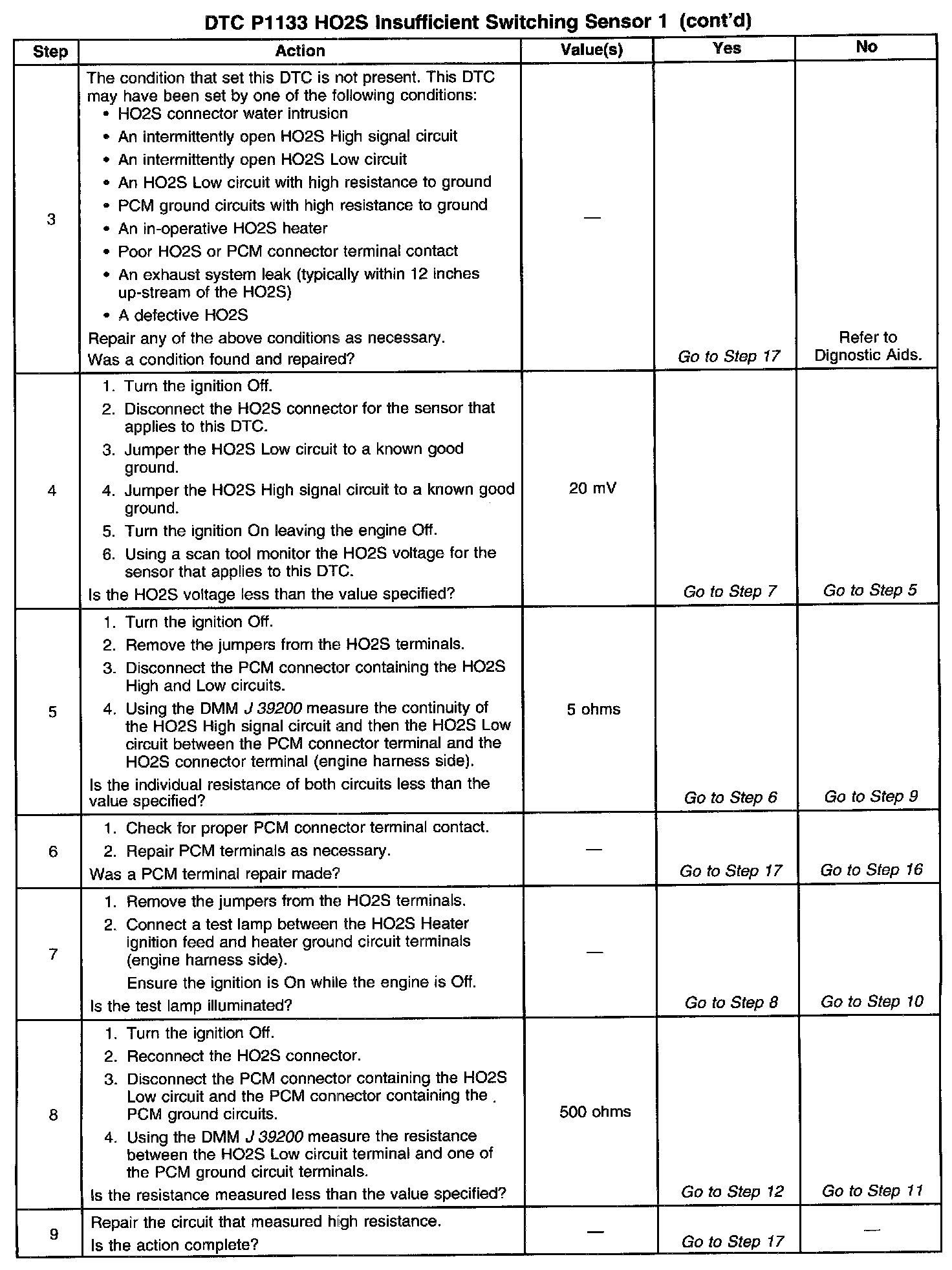

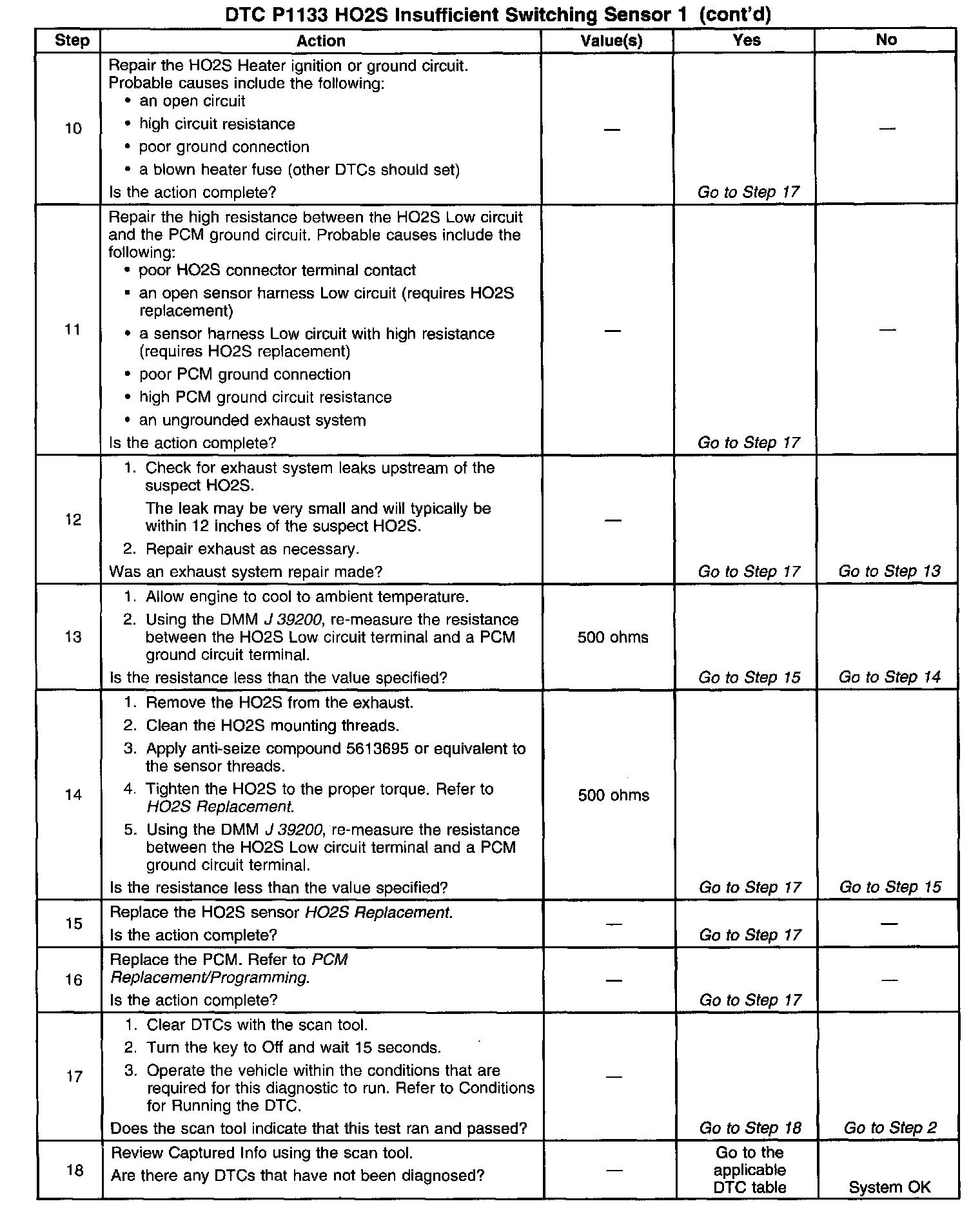

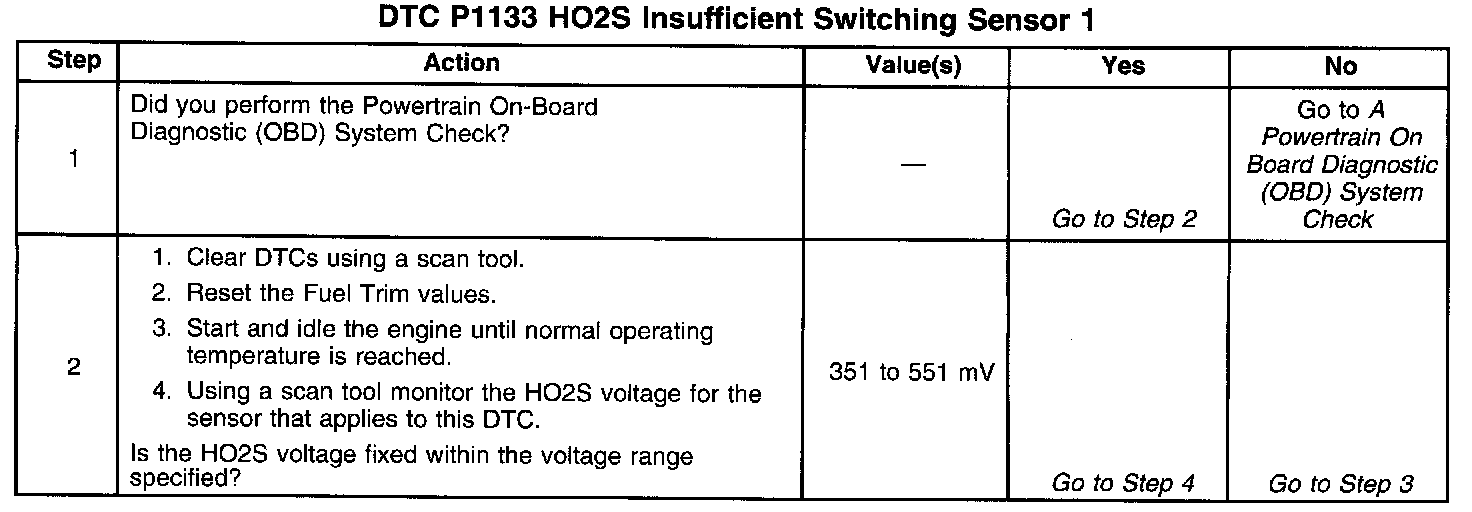

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks for proper sensor activity. When in Closed Loop fuel control the HO2S voltage should rapidly swing above and below the bias voltage.
4. This step checks the PCM and the High and Low circuits between the PCM and the HO2S connector for proper operation.
7. This step checks for proper HO2S heater circuit operation up to the HO2S connector.
8. This step checks for proper circuit resistance between the HO2S Low circuit and PCM ground.
13. This step checks for proper circuit resistance between the HO2S Low circuit and PCM ground with a COLD sensor. A loose HO2S or poor thread to exhaust electrical contact will cause higher resistance when the HO2S is cold. Although 500 ohms is allowed, typical resistance should be less than 50 ohms.
