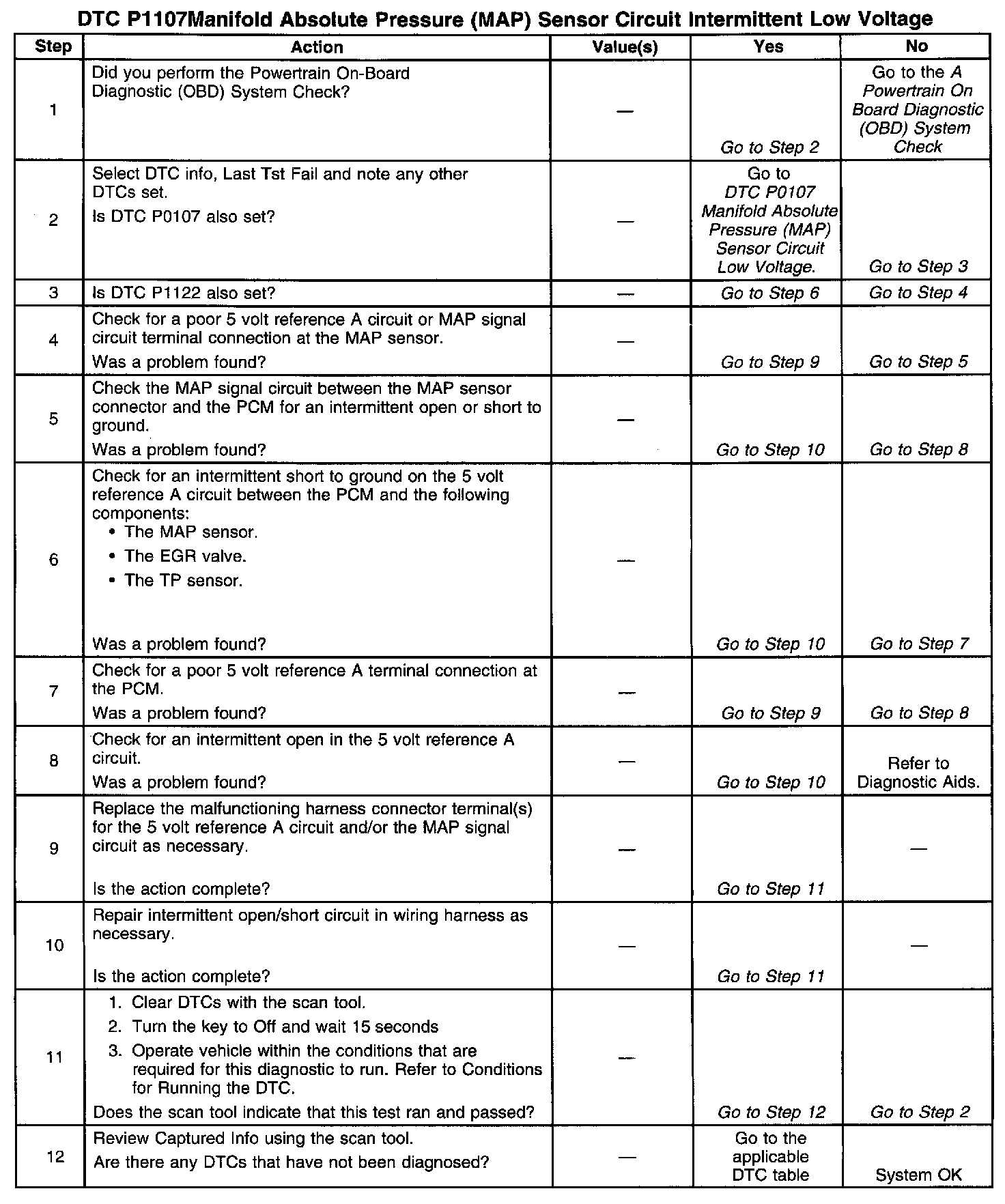

P1107

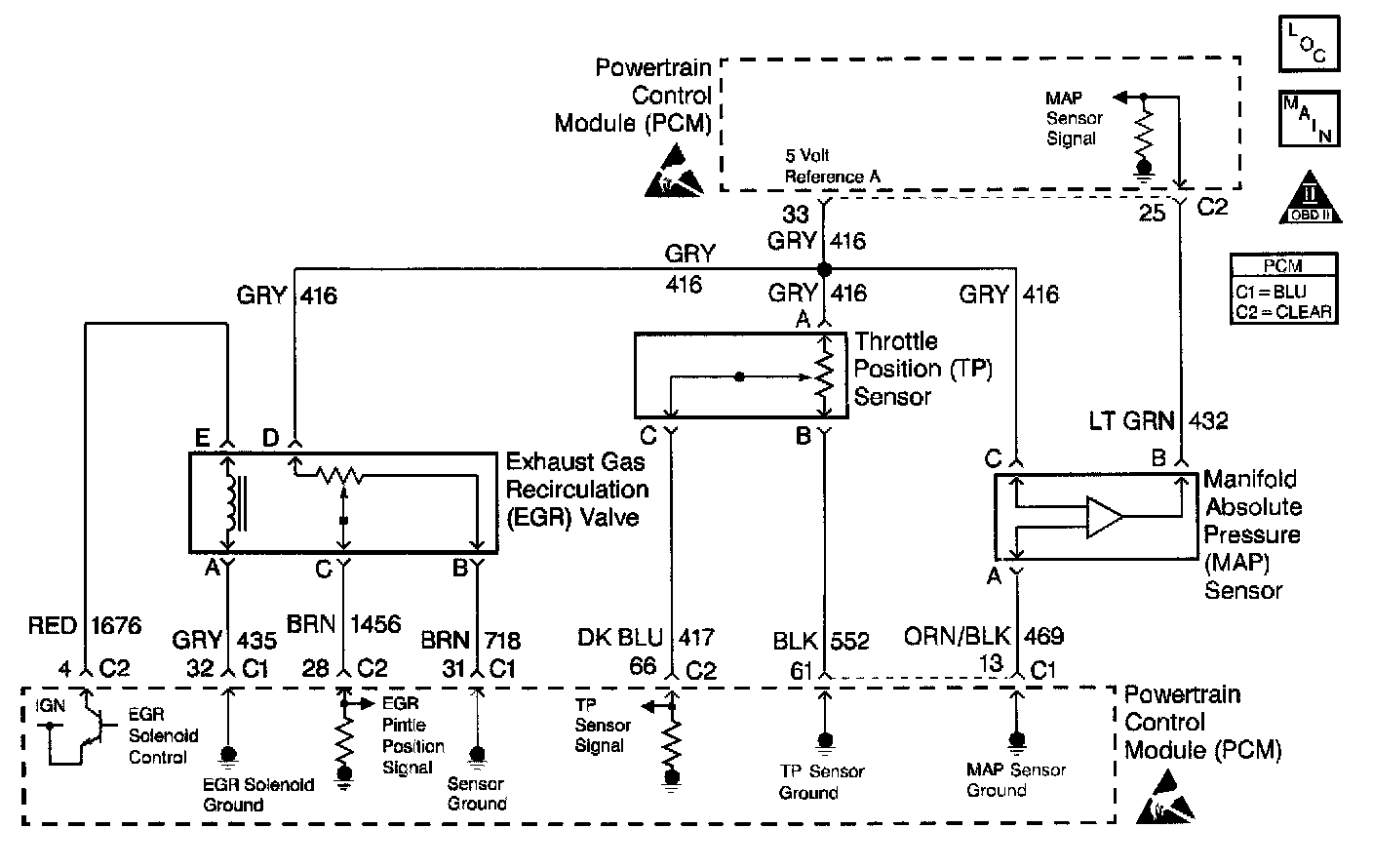

Circuit Description
The Manifold Absolute Pressure (MAP) sensor is mounted to the top of the intake manifold. The MAP sensor measures pressure changes within the intake manifold which are an indication of engine load. The MAP sensor has a 5.0 volt reference, a ground and a signal circuit.
The MAP sensor contains a diaphragm which changes resistance based on pressure. When manifold pressure is low (high vacuum) sensor output voltage is low.
When manifold pressure is high (low vacuum) sensor output voltage is high. MAP sensor voltage (depending on altitude) can range from below 2 volts at idle (high vacuum) to above 4 volts at wide open Throttle, or with the engine not running (low vacuum).
The MAP sensor signal is also used at initial key-up to determine barometric pressure (BARO).

Conditions for Running the DTC
1. No TP sensor DTC(s) are present.
2. The ignition is ON.
3. Throttle angle is steady above 6% if engine speed is greater than 1000 rpm.

Conditions for Setting the DTC
The MAP sensor intermittently indicates a manifold
absolute pressure below 0.1 volt.

Action Taken When the DTC Sets
^ The PCM stores the DTC information into memory when the diagnostic runs and fails.
^ The Malfunction Indicator Lamp (MIL) will not illuminate.
^ The PCM records the operating conditions at the time the diagnostic fails. The PCM stores this information in the Failure Records.

Conditions for Clearing the MIL/DTC
^ A History DTC will clear after forty consecutive warm-up cycles, if no failures are reported by this or any Other non-emission related diagnostic.
^ A last test failed (Current DTC) will clear when the diagnostic runs and does not tail.
^ Use a scan tool in order to clear the MIL/DTC.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice: Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the following items:
^ The PCM harness connectors
^ The electrical center fuse/relay cavities
^ The component terminals
^ The component harness connector

Using this kit will prevent damage caused by the improper probing of connector terminals.
Check for the following conditions:
1. Poor connection at PCM or MAP sensor.
Inspect PCM harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
2. Damaged harness.
Inspect the wiring harness for damage. If the harness appears to be OK, observe the MAP display on the scan tool while moving connectors and wiring harnesses related to the sensor. A change in the display will indicate the location of the malfunction.
Reviewing the Failure Records vehicle mileage since the diagnostic test last failed may help determine how often the condition that caused the DTC to set occurs. This may assist in diagnosing the condition.
