P0403

Circuit Description
The PCM monitors the EGR valve pintle position input to ensure that the valve responds properly to commands from the PCM. The Linear EGR valve is controlled by using an ignition positive driver and ground circuit within the PCM. The driver has the ability to detect an electrical malfunction in the ignition positive or ground circuit. If an electrical malfunction occurs, the driver signals the PCM to set DTC P0403.

Conditions for Running the DTC
^ The ignition voltage is between 9.0 and 18.0 volts.
^ The engine speed is greater than 80 RPM.
^ The PCM Driver transitions from On to Oft or from Off to On.

Conditions for Setting the DTC
^ A short to ground, an open circuit, or a short to battery voltage is detected on the control circuit.
^ Condition present for at least 30 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic tails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.
The PCM will disable EGR for the ignition cycle.

Conditions for Clearing the MIL/DTC
^ The PCM turns the MIL Off after three consecutive drive trips that the diagnostic runs and does not fail.
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any Other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice: Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the following items:
^ The PCM harness connectors
^ The electrical center fuse/relay cavities
^ The component terminals
^ The component harness connector
Using this kit will prevent damage caused by the improper probing of connector terminals.


Test Description

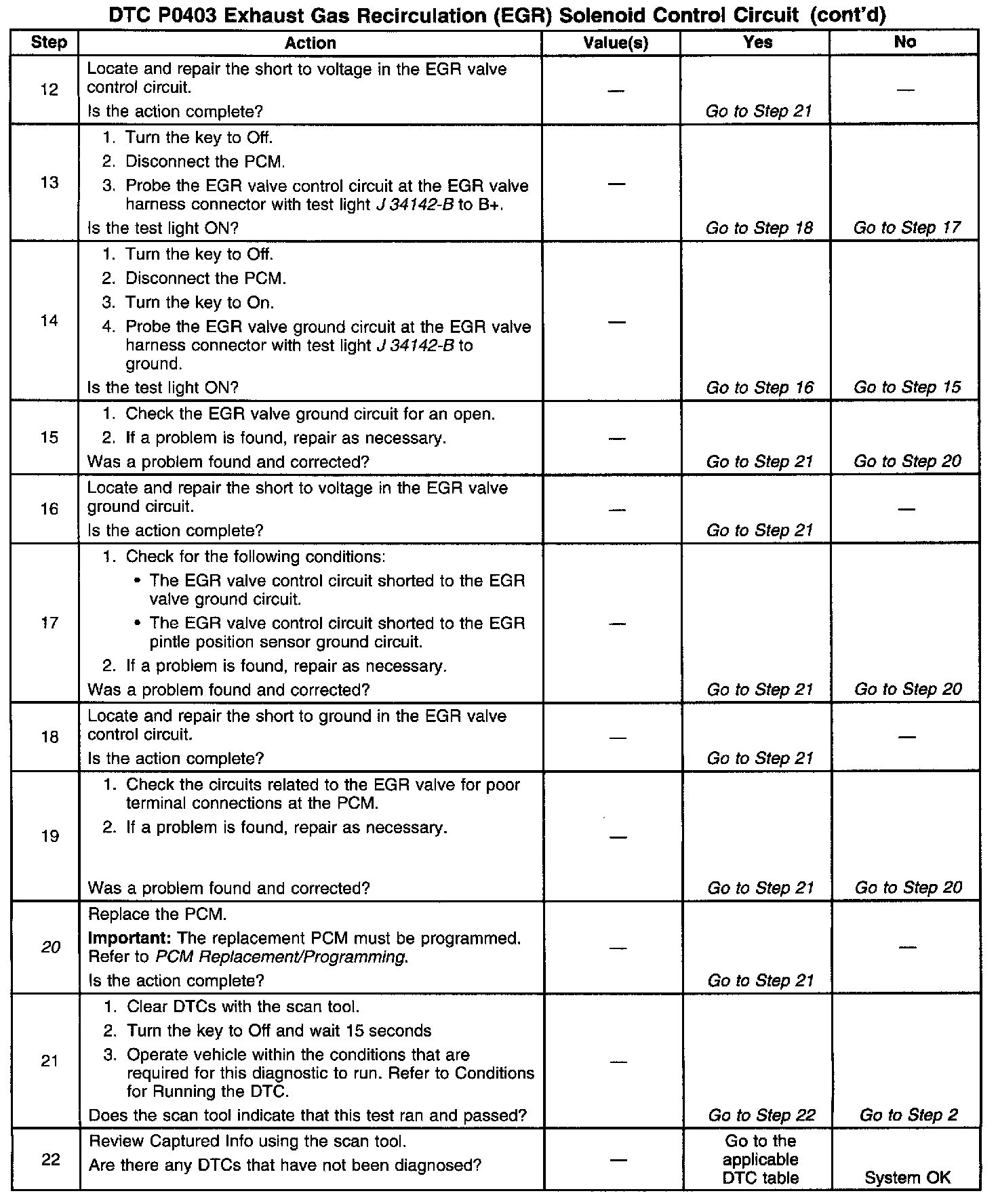

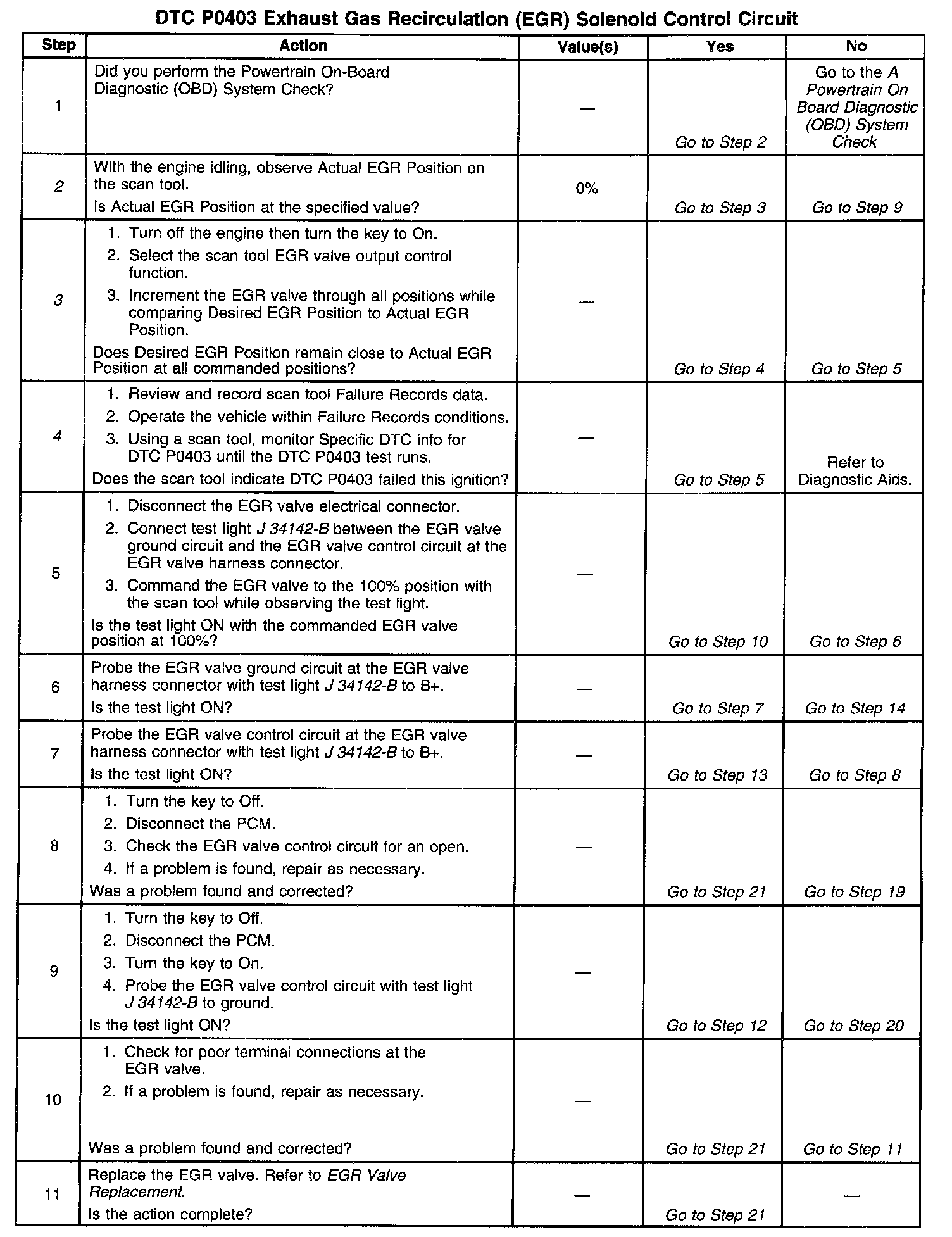

Number(s) below refer to the step number(s) on the Diagnostic Table:
2. Verifies that the malfunction is present.
4. If DTC P0403 will only set under certain conditions, the malfunction may be intermittent; refer to Diagnostic Aids.
20. This vehicle is equipped with a PCM which utilizes an Electrically Erasable Programmable Read Only Memory (EEPROM). When the PCM is being replaced, the new PCM must be programmed.
