P0335

Circuit Description
The Crankshaft Position (CKP) sensor used on this engine is actually two sensors within a single housing. Each sensor has a separate power, ground (reference low) and a signal circuit. The PCM supplies 12 Volts to both sensors. The PCM provides the ground path, or sensor return circuit, from both sensors. The power and reference low circuits are also connected to the CMP sensor. Two separate signal circuits connect the CKP sensor and the PCM. The PCM can use three different modes of decoding crankshaft position. During normal operation, the PCM performs an Angle Based calculation using both signals to determine crankshaft position. The dual sensor allows the engine to run even if one signal is lost. If either signal is lost, the PCM switches to a Time
Based method of calculating crankshaft position. If the system is operating in Time A mode, the PCM is using only the signal from Sensor A. Time B indicates that the Sensor B signal is being used. If the lost signal is restored, the PCM will continue to operate in Time A or B mode for the remainder of the current key cycle. The PCM will automatically revert back to the Angle mode on the next start up if the fault is not present. The scan tool can display the Crank Position Sensing Decode Mode.

Conditions for Running the DTC
Engine cranking or running.

Conditions for Setting the DTC
The PCM detects a problem with the CKP Sensor A signal.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

Conditions for Clearing the MIL/DTC
^ The PCM turns the MIL Off after three consecutive drive trips that the diagnostic runs and does not fail.
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any Other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice: Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the following items:
^ The PCM harness connectors
^ The electrical center fuse/relay cavities
^ The component terminals
^ The component harness connector
Using this kit will prevent damage caused by the improper probing of connector terminals.

CKP/CMP sensor DTCs may set if the key is turned to Start and the starter is inoperative. If P0335, P0340, and P0385 are set and no trouble is found, check for the following:
^ Is there a no-crank condition or an intermittent no-crank condition?
^ Was an attempt made to crank the engine with the shift lever not in P/N?

Test Description

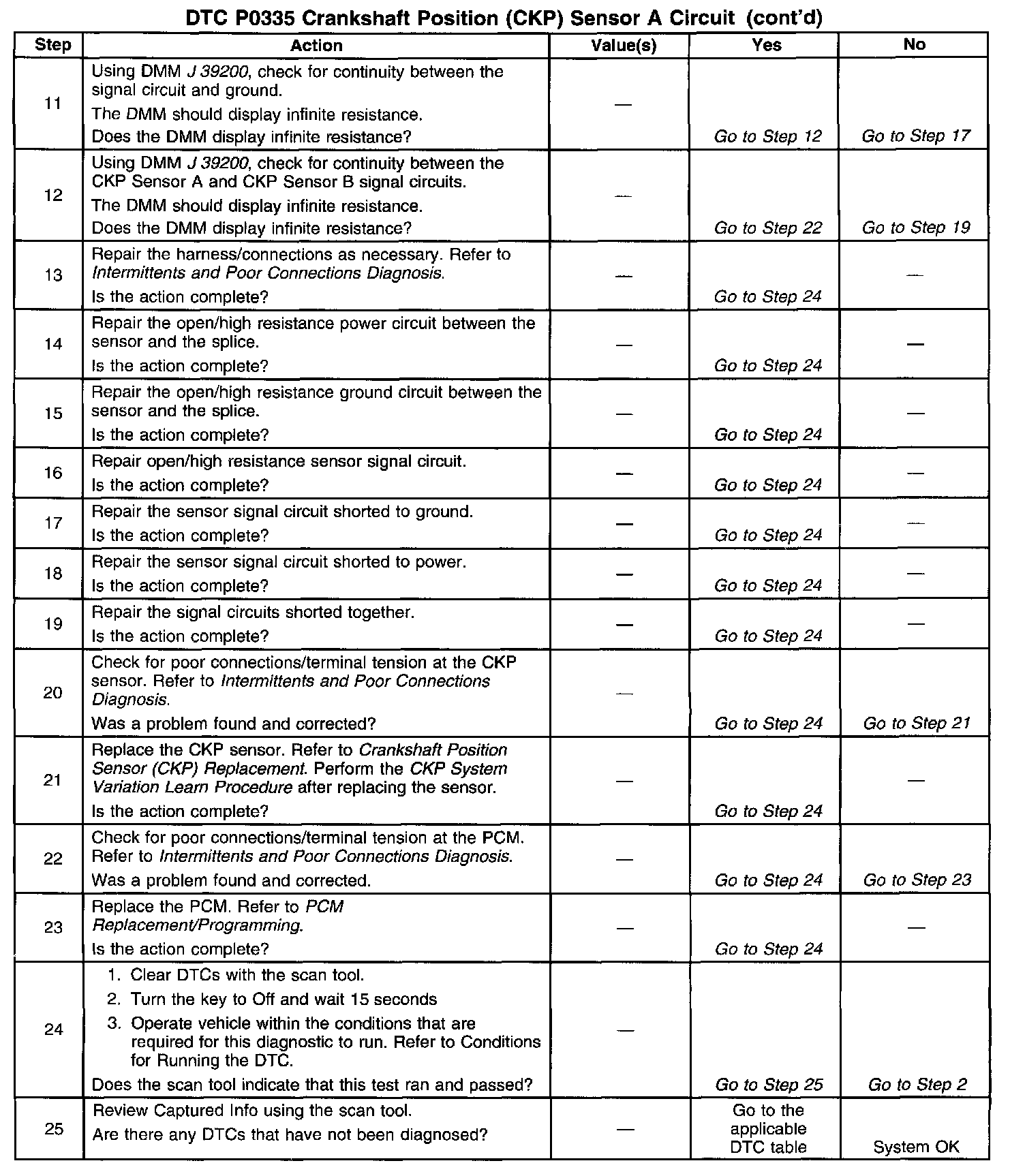

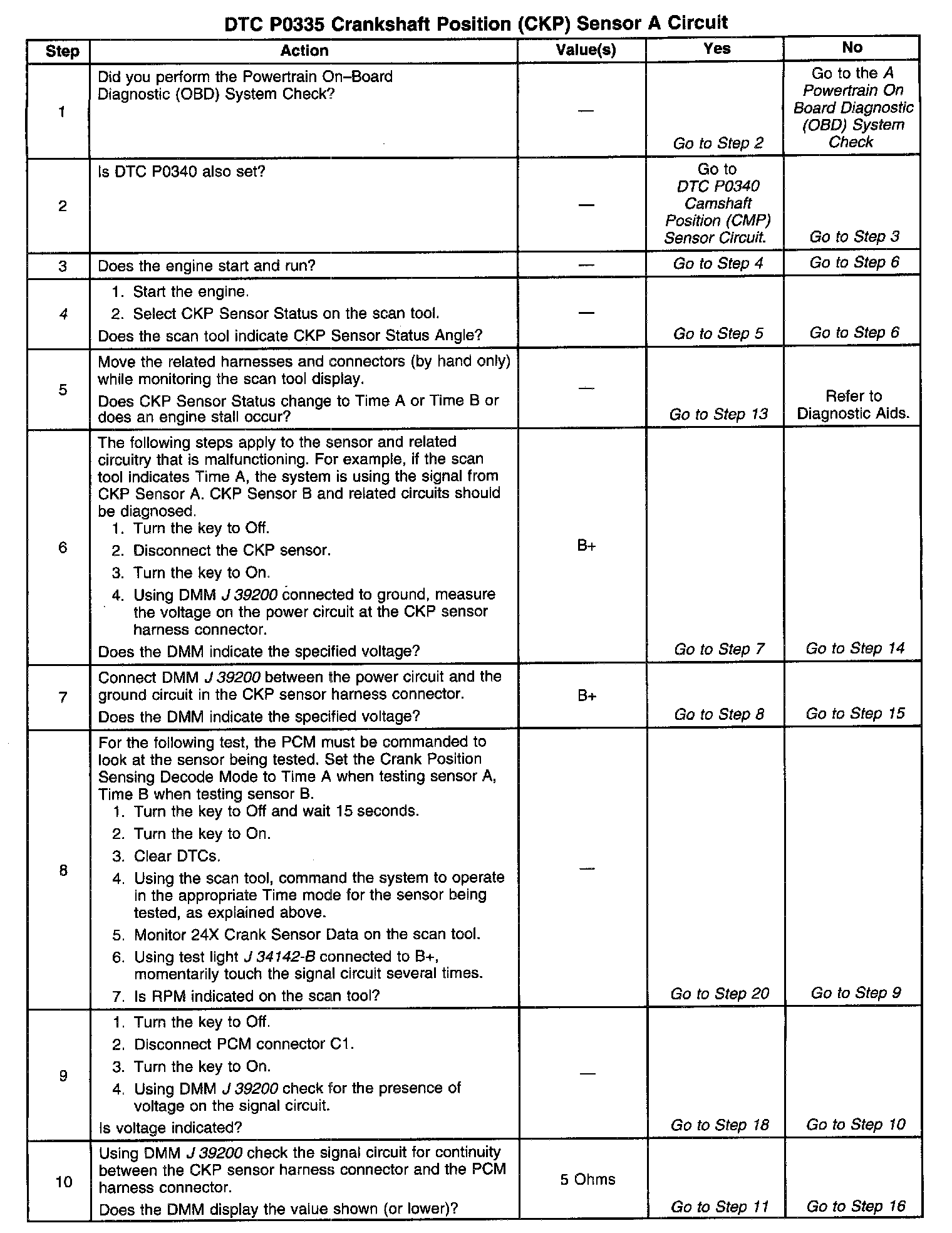

Number(s) below refer to the step number(s) on the diagnostic table.
4. During normal operation the CKP Sensor Status parameter should always indicate Angle. If Time A or Time B is displayed, a problem has been detected. For example, if the scan tool indicates Time A, the system is using the signal from CKP Sensor A. CKP Sensor B and related circuits should be diagnosed.
