P0202

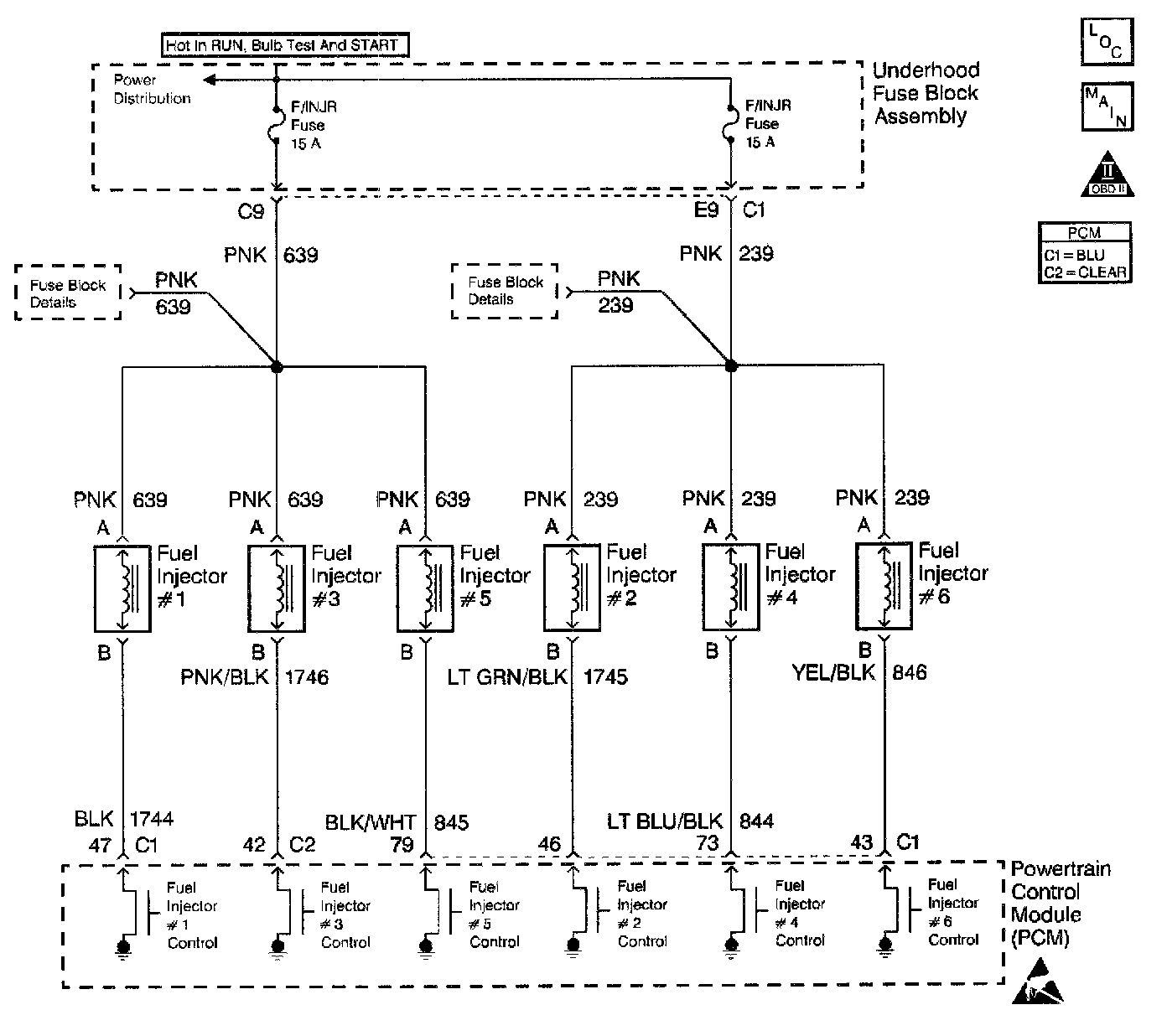

Circuit Description
Ignition Voltage is supplied directly to the fuel injectors. The PCM controls each fuel injector by grounding the control circuit via an internal solid state device called a driver. The primary function of the driver is to supply the ground for the component being controlled. Each driver has a fault line which is monitored by the PCM. When the PCM is commanding a component on, the voltage of the control circuit should be low (near 0 volts). When the PCM is commanding the control circuit to a component off, the voltage potential of the circuit should be high (near battery voltage). If the fault detection circuit senses a voltage Other than what is expected, this DTC will set. The PCM will monitor the control circuit for the following:
^ A short to ground
^ A short to voltage
^ An open circuit
^ An open injector coil
^ An internally shorted or excessively low resistance fuel injector.

When the PCM detects any of the above malfunctions, this DTC will set and the affected driver will be disabled. The PCM will continue to test the circuit and if the fault goes away the driver will be reactivated.

Conditions for Running the DTC
^ Engine running.
^ Ignition voltage is between 9.0 volts and 17.0 volts.

Conditions for Setting the DTC
The PCM detects an incorrect voltage potential on the ignition control circuit.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the PCM stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the PCM records the operating conditions at the time of the failure. The PCM writes the conditions to the Freeze Frame and updates the Failure records.

Conditions for Clearing the MIL/DTC
^ The PCM turns the MIL Off after three consecutive drive trips that the diagnostic runs and does not fail.
^ A last test failed (current DTC) clears when the diagnostic runs and does not fail.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any Other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the MIL/DTC.
^ Interrupting the PCM battery voltage may or may not clear DTCs. This practice is not recommended.

Diagnostic Aids

Notice:Use the Connector Test Adapter Kit J 35616-A for any test that requires probing the following items:
^ The PCM harness connectors
^ The electrical center fuse/relay cavities
^ The component terminals
^ The component harness connector Using this kit will prevent damage caused by the improper probing of connector terminals.

Test Description

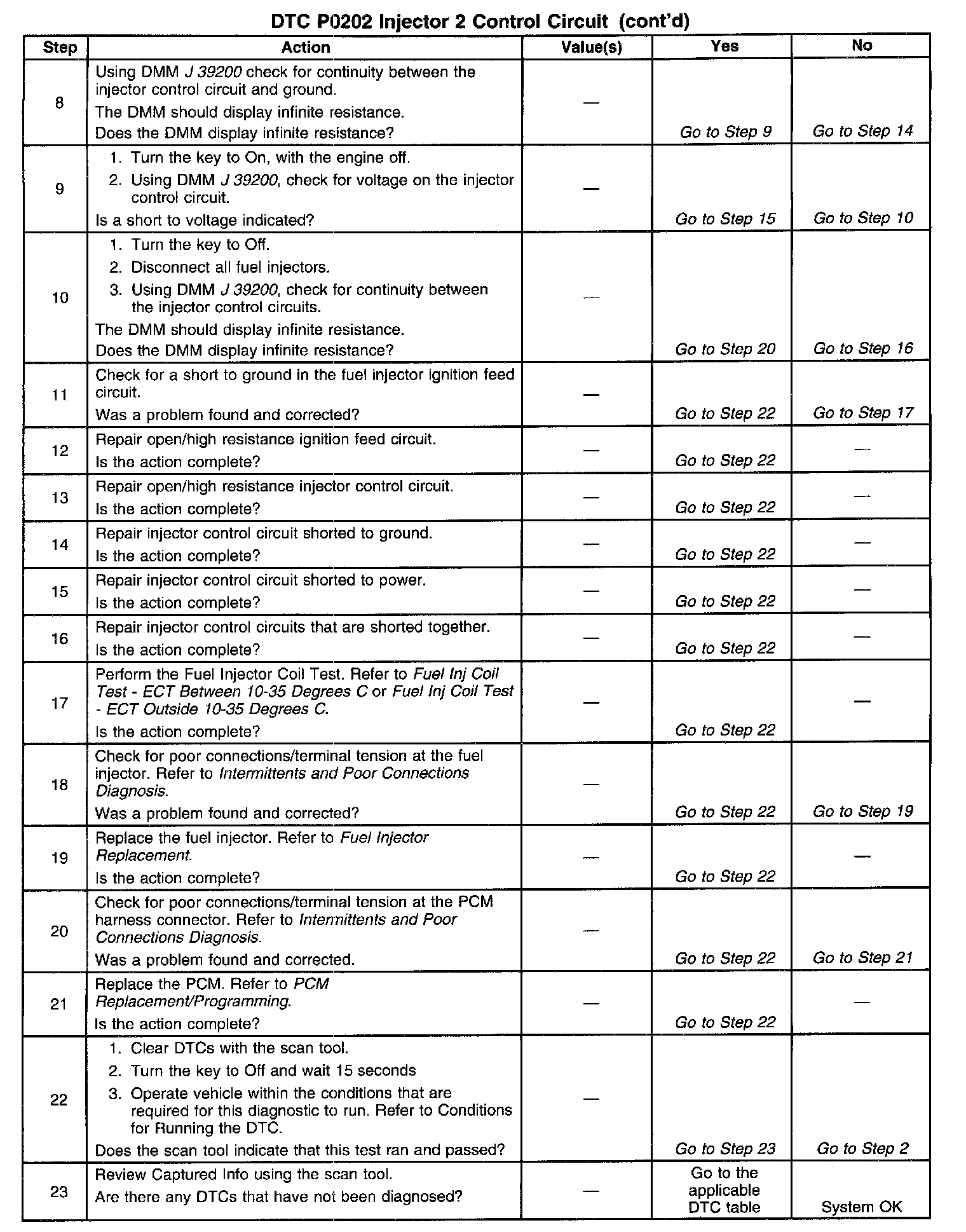

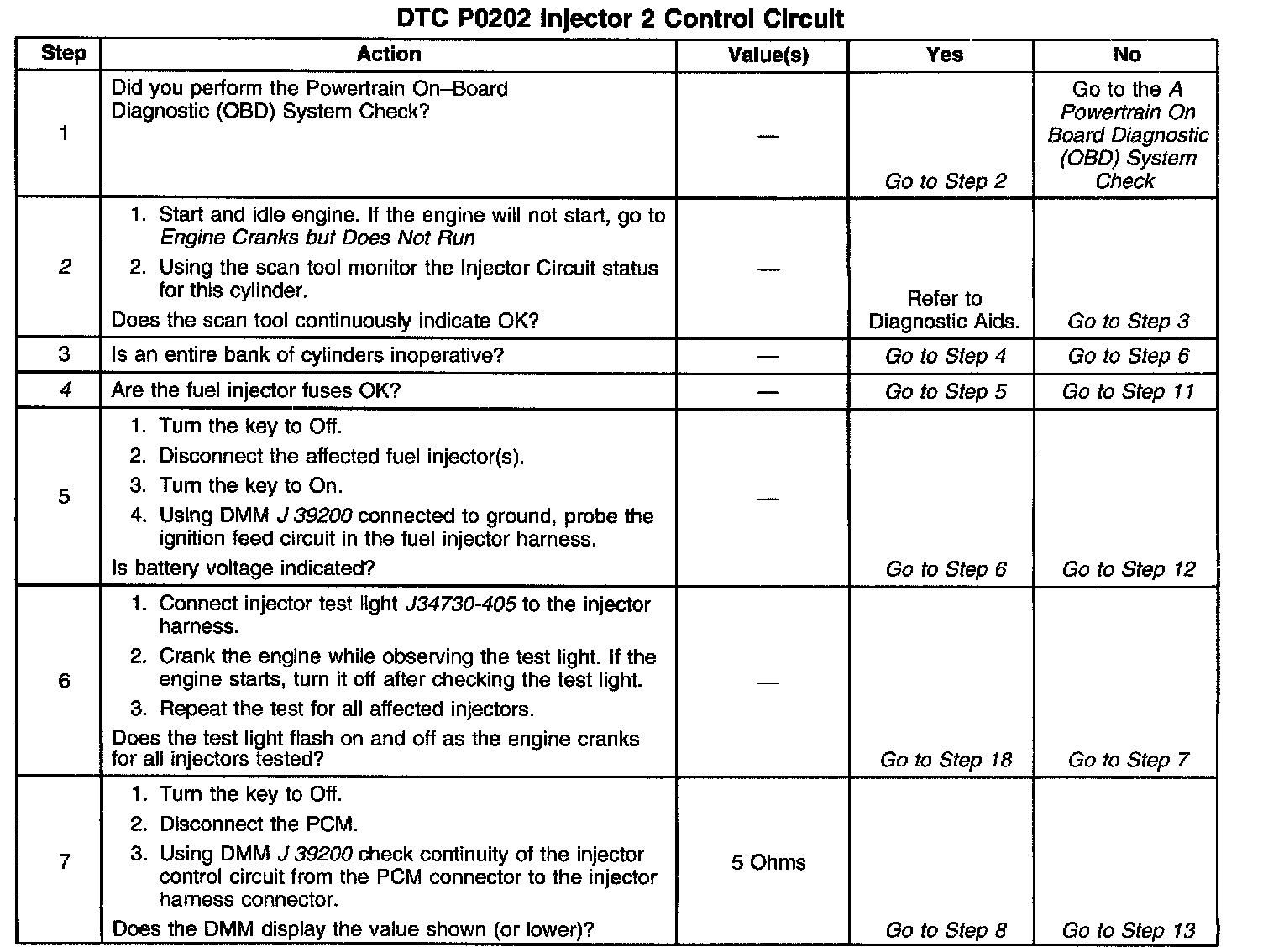

Number(s) below refer to the step number(s) on the diagnostic table.
2. The scan tool displays Fault if a circuit problem is detected.
4. Refer to the system mechanization for the fuses which supply these circuits.
