Windshield Washer Pump: Service and Repair

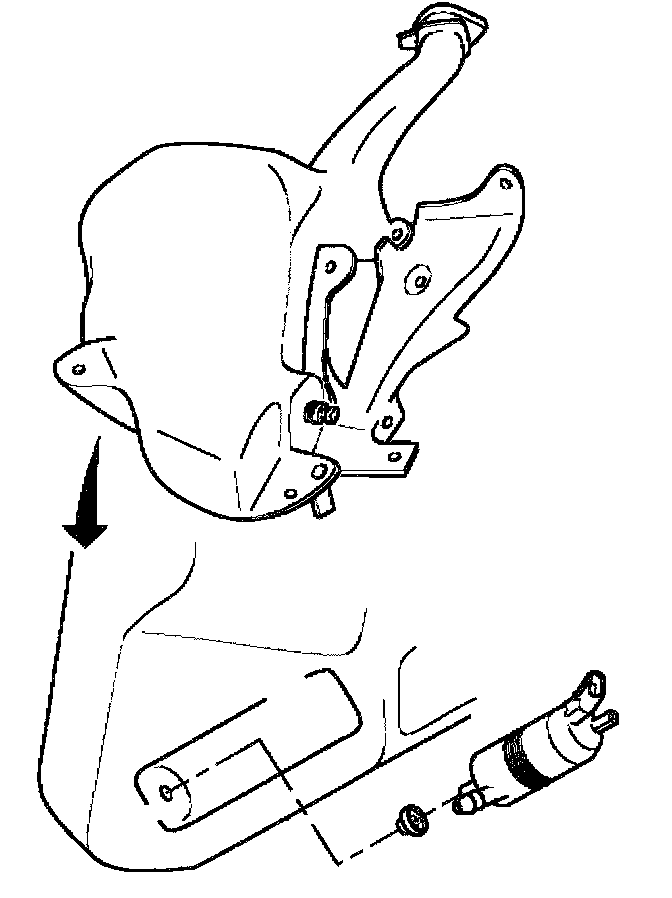

REMOVAL PROCEDURE
1. Remove the washer solvent container from the vehicle.
2. Remove the washer pump from the washer solvent container.

INSTALLATION PROCEDURE

IMPORTANT: The washer pump must be pushed completely into the container seal.

1. Install the washer pump into the washer solvent container.
2. Install the washer solvent container onto the vehicle.
