Front

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

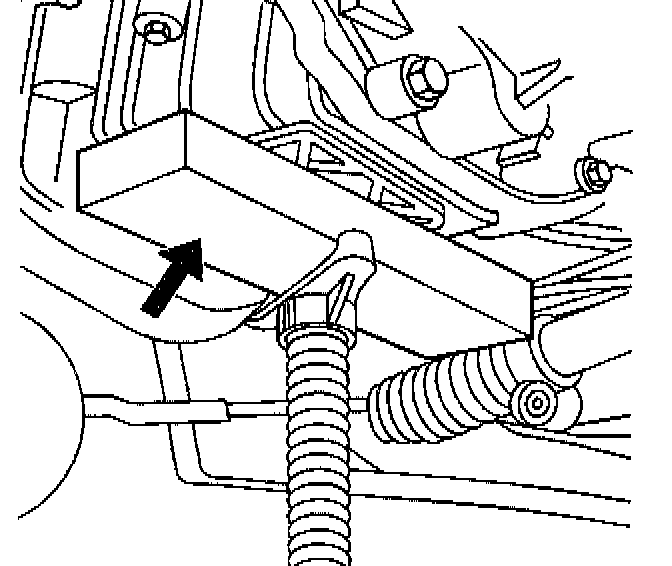

2. Support the engine with a jackstand and a block of wood.

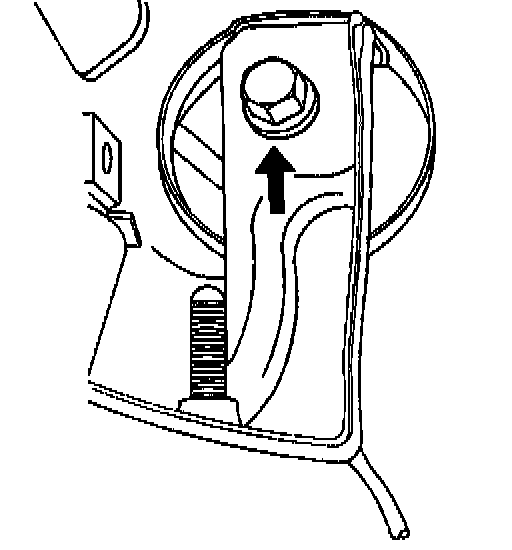

3. Remove the mount thru-bolt.

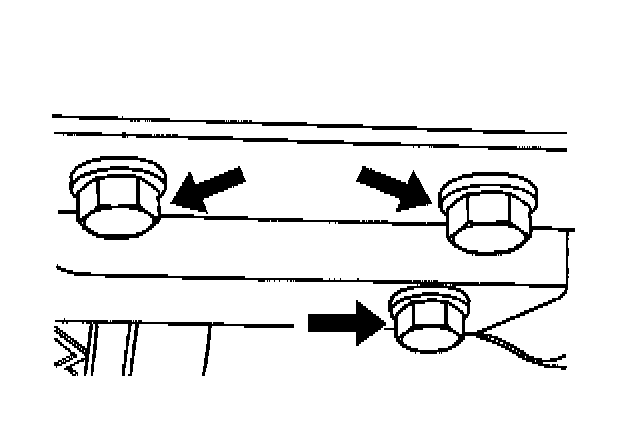

4. Remove the lower mount bracket bolts and the lower mount bracket.

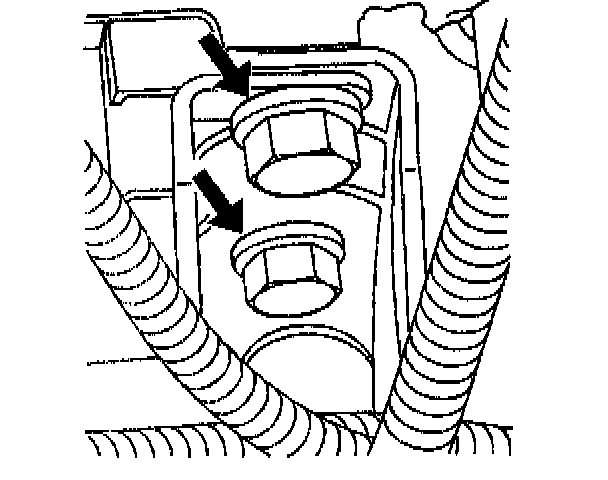

5. Remove the front transmission mount bolts and the front transmission mount.


Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

1. Position the front transmission mount and install the bolts.
^ Tighten the bolts to 130 Nm (96 ft. lbs.).
2. Position the lower transmission mount bracket and install the bolts.
^ Tighten the bolts to 120 Nm (89 ft. lbs.).
3. Install the transmission mount thrubolt.
^ Tighten the thrubolt to 75 Nm (55 ft. lbs.).
4. Remove the jackstand and the wood block.
5. Lower the vehicle.
