Trailing Arm: Service and Repair

REMOVAL PROCEDURE





1. Raise and support the vehicle. Refer to Vehicle Lift Points.

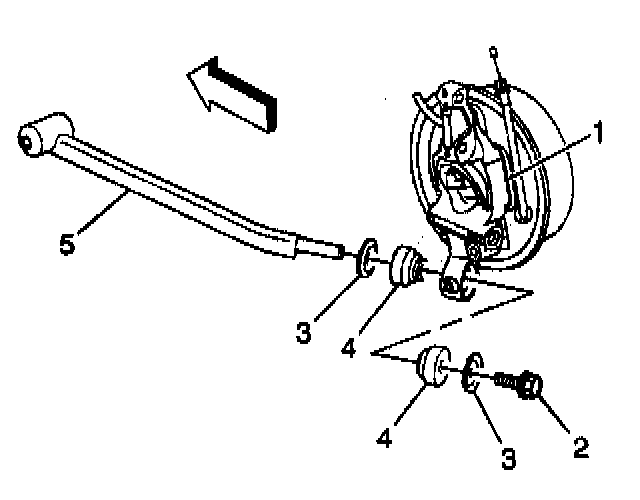

2. Remove the trailing arm-to-knuckle bolt (2), washer (3) and bushing (4).

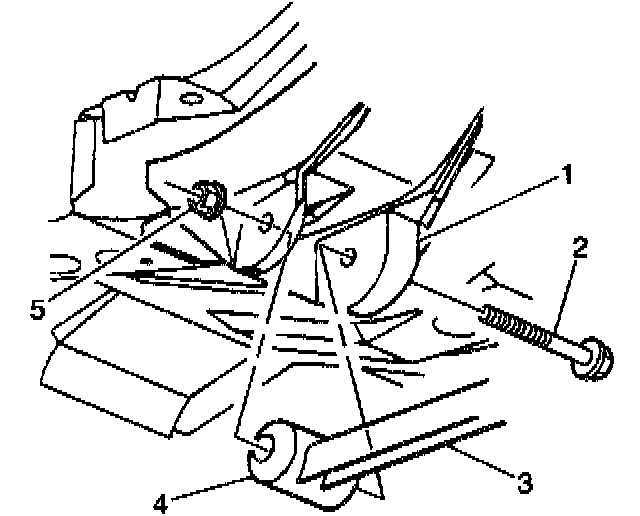

3. Remove the trailing arm to body bolt (2).
4. Remove the trailing arm (3) from the body (1).

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.

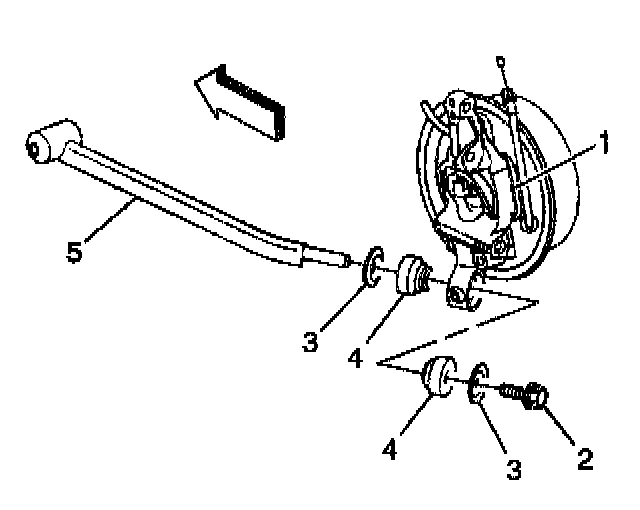

1. Install the trailing arm-to-knuckle bolt (2), washer (3), and bushing (4). Hand tighten the bolt.

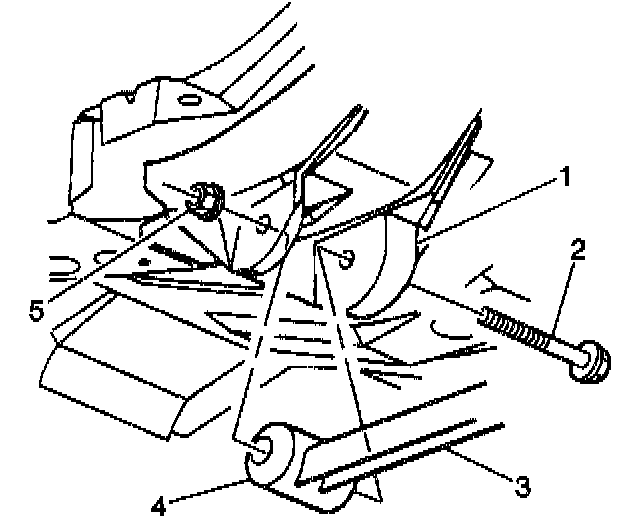

2. Connect the trailing arm (3) to the body (1) and install the bolt (2).
- Tighten the trailing arm to body bolt to 65 Nm (48 ft. lbs.) plus a 120 degree rotation.
- Tighten the knuckle bolt to 69 Nm (51 ft. lbs.).
3. Lower the vehicle.
