SIR Steering Wheel Module Coil - Disassemble

DISASSEMBLY PROCEDURE

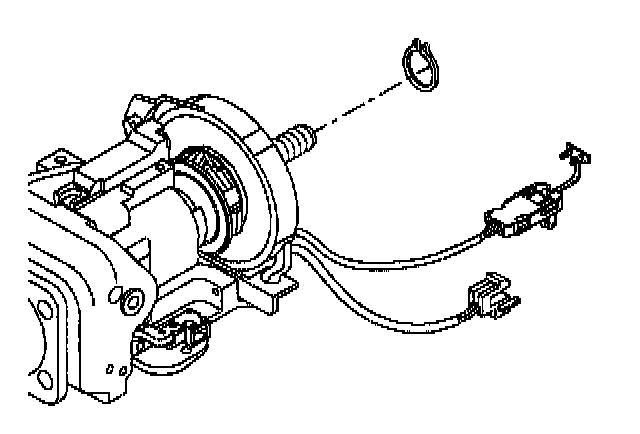

1. Remove the retaining ring.

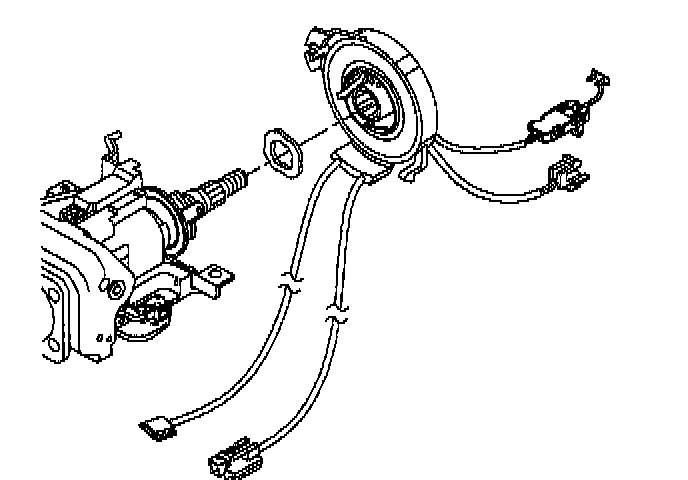

2. Remove the SIR coil assembly and the wave washer.
