Inflatable Restraint Steering Wheel Module Coil Assemble - Off Vehicle

Inflatable Restraint Steering Wheel Module Coil Assemble - Off Vehicle

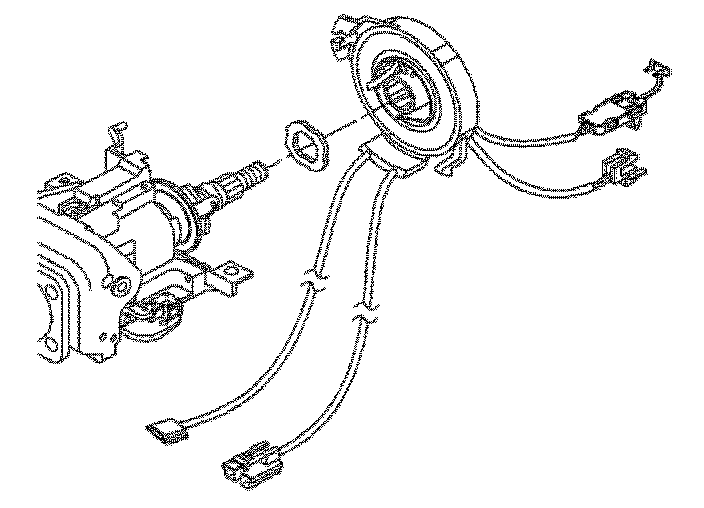

1. Install the wave washer and the inflatable restraint steering wheel module coil.

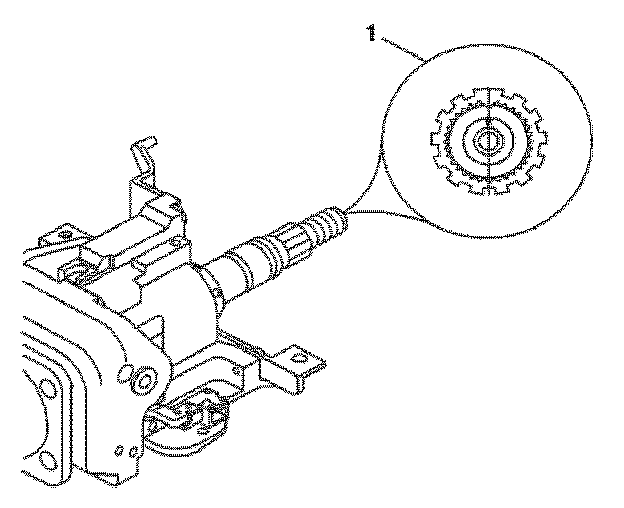

2. Align the block tooth (1) on the race and upper shaft assembly to the 12 o'clock position.
3. Turn the key to the OFF position and remove the key.

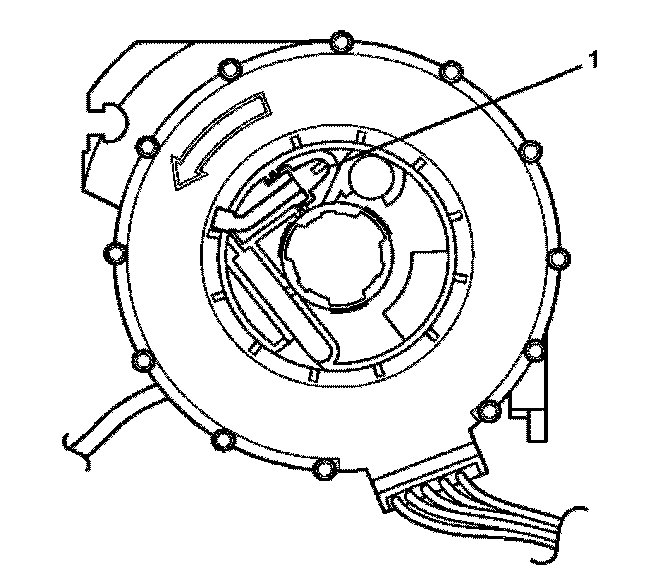

4. The new inflatable restraint steering wheel module coil will be precentered. Do not depress the tab (1) on the back of the inflatable restraint steering wheel module coil.
5. If reusing the original inflatable restraint steering wheel module coil, refer to Inflatable Restraint Coil Centering.
6. Install the inflatable restraint steering wheel module coil onto the race and upper shaft assembly.

Remove the orange tab and discard it.






7. Install the retaining ring.
