Inflatable Restraint Instrument Panel Module Replacement

Removal Procedure

Caution: When you are carrying an undeployed inflator module:
^ Do not carry the inflator module by the wires or connector on the inflator module
^ Make sure the bag opening points away from you
When you are storing an undeployed inflator module3 make sure the bag opening points away from the surface on which the inflator module rests. When you are storing a steering column, do not rest the column with the bag opening facing down and the column vertical Provide free space for the air bag to expand in case of an accidental deployment. Otherwise, personal injury may result.

1. Disable the SIR system. Refer to Disabling the SIR System.
2. Remove the instrument panel compartment.

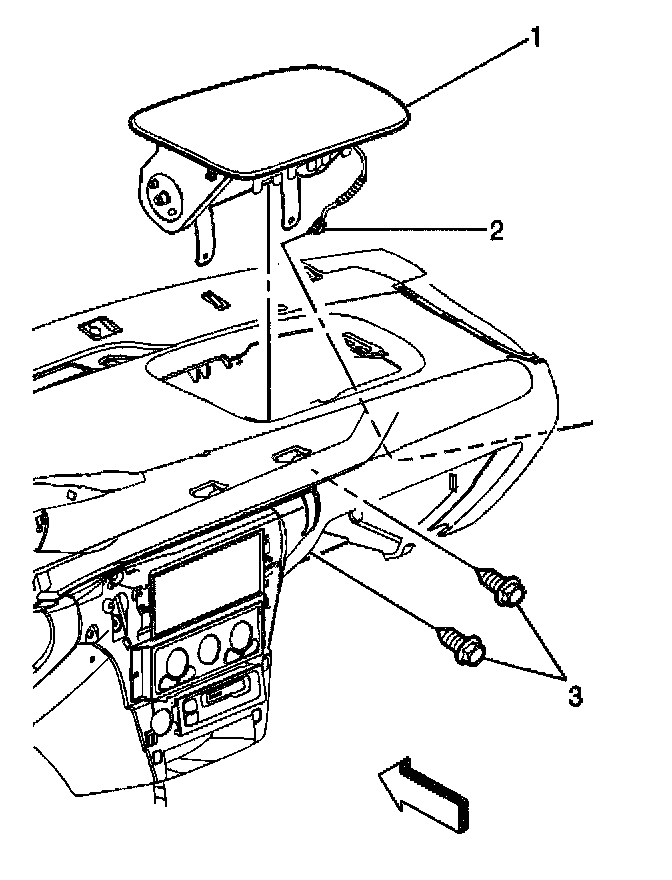

3. Remove the inflatable restraint I/P module mounting fasteners (3).
4. Remove the inflatable restraint I/P module (1) from the vehicle.

Installation Procedure
1. Install the inflatable restraint I/P module to the cross-car beam.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the inflatable restraint I/P module mounting fasteners (3).

Tighten
Tighten fasteners to 10 N.m (89 lb in). Use hand tools only in order to achieve fastener torque. This will prevent stripping of the replacement fastener.

3. Install the instrument panel compartment.
4. Enable the SIR system. Refer to Enabling the SIR System.
