Accelerator Pedal: Service and Repair

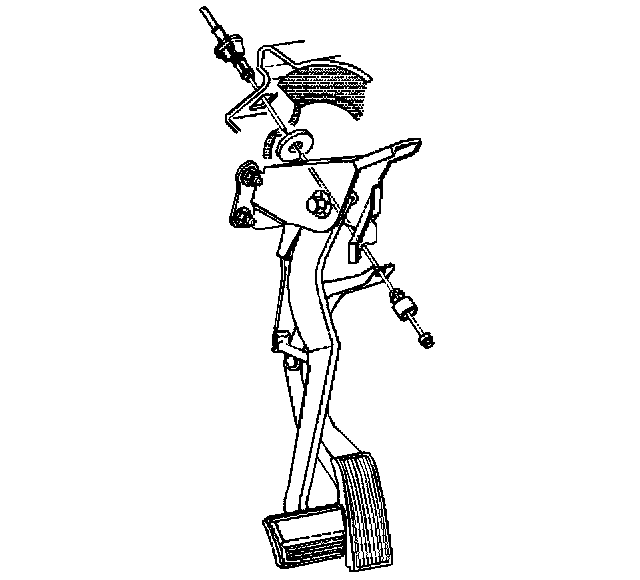

REMOVAL PROCEDURE
1. Remove the left instrument panel sound insulator.
2. Remove the accelerator cable from accelerator pedal.
3. Remove the accelerator pedal nuts to cowl.
4. Remove the accelerator pedal assembly.

INSTALLATION PROCEDURE
1. Install the accelerator pedal assembly.
2. Install the accelerator pedal nuts to cowl.

Tighten
Tighten the accelerator pedal nuts at cowl to 30 N.m (25 lb ft).

3. Install the accelerator cable to the accelerator pedal
4. Install the left instrument panel sound insulator.
5. Inspect and check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.
6. Inspect the throttle should operate freely without binding between full closed and wide open throttle.
