Front

FRONT WHEEL BEARINGS/HUB

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Vehicle Lift Points.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Remove the wheel drive shaft.
4. Remove the brake rotor. Refer to Brake Rotor Replacement in Disc Brakes.

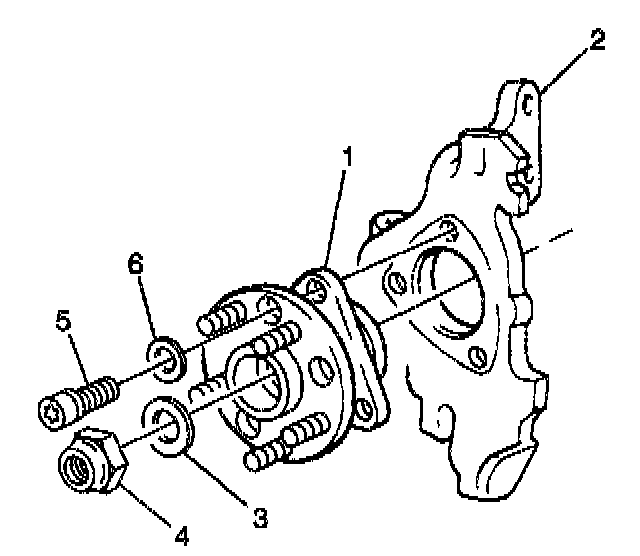

5. Remove the hub and bearing assembly bolts (5).
6. Remove the hub and bearing assembly (1) from the steering knuckle (2).

INSTALLATION PROCEDURE

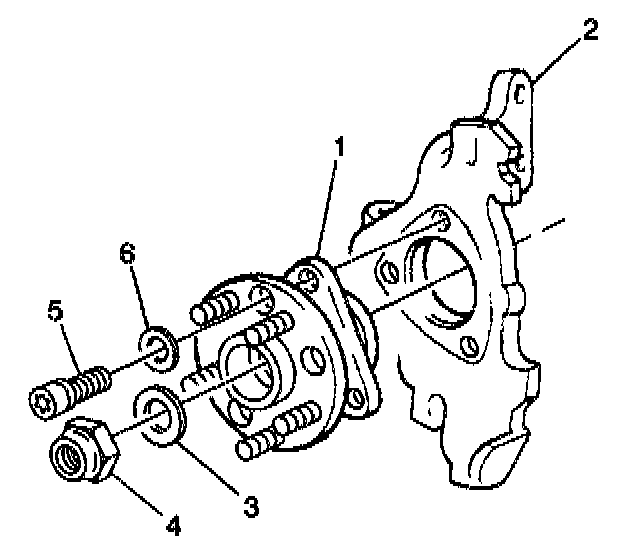

1. Install the hub and bearing assembly (1) to the steering knuckle (2).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the hub and bearing assembly bolts (5).
- Tighten the hub and bearing assembly bolts to 95 Nm (70 ft. lbs.).
3. Install the brake rotor. Refer to Brake Rotor Replacement in Disc Brakes.
4. Install the wheel drive shaft. Tighten axle nut to 385 Nm (284 ft. lbs.)
5. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
6. Check the front wheel alignment. Refer to Measuring Wheel Alignment (Front) in Wheel Alignment.
