Turn Signal Switch: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Disable the Supplemental Inflatable Restraints (SIR). Refer to Disabling the SIR System in Air Bags and Seat Belts.
3. Remove the steering column shrouds. Refer to Steering Column Trim Cover Replacement - On Vehicle.

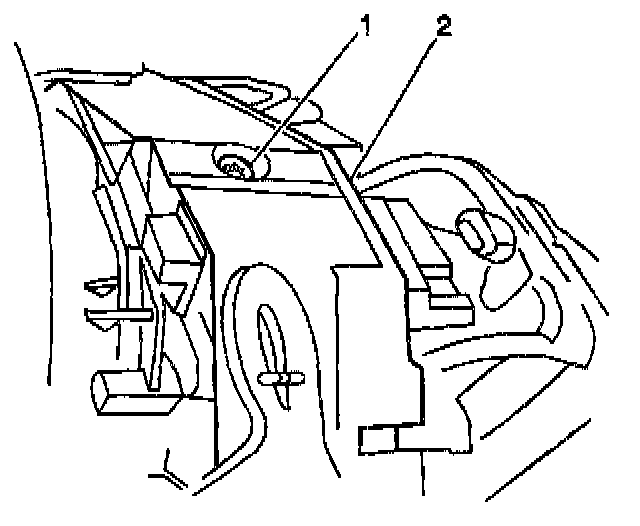

4. Remove the Tore head screws (1) from the multifunction switch (2).

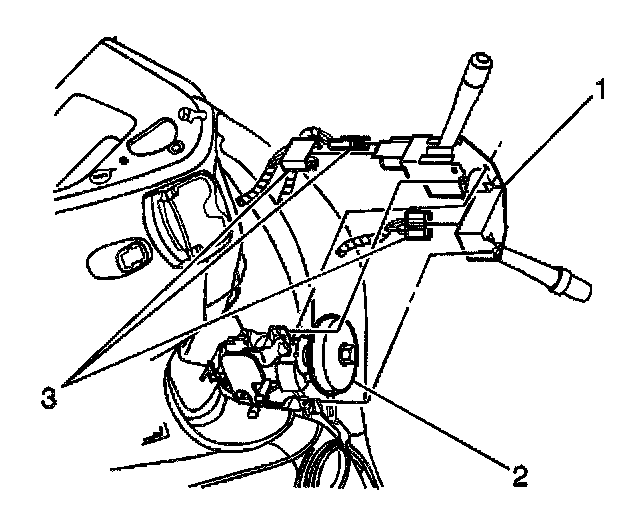

5. Disconnect the electrical connectors (3) from the multifunction switch (1).
6. Remove the multifunction switch (1) from the column (2).

INSTALLATION PROCEDURE





1. Position the multifunction switch (1) on the steering column (2).
2. Connect the electrical connectors to the multifunction switch (1).

NOTICE: Refer to Fastener Notice in Service Precautions.





3. Install the Torx head screw (1) to the multifunction switch (2).
- Tighten the screw to 6 Nm (53 inch lbs.).
4. Install the steering column shrouds. Refer to Steering Column Trim Cover Replacement -On Vehicle.
5. Enable the SIR system. Refer to Enabling the SIR System in Air Bags and Seat Belts.
6. Connect the negative battery cable.
7. Ensure that the multifunction switch functions properly.
