Power Windows - Front Doors
Power Windows - Front Doors

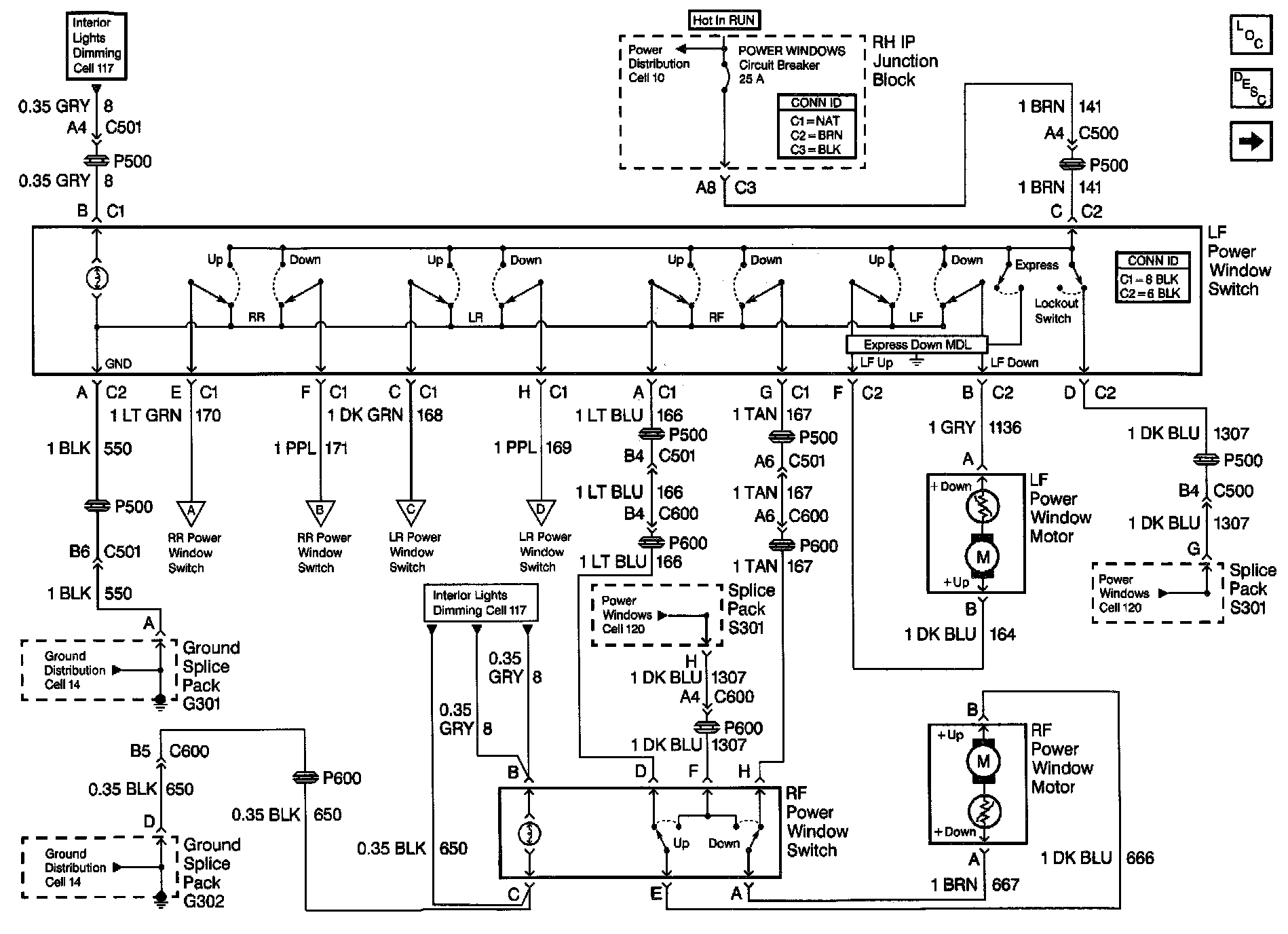

Power Window Schematics: Power Windows, Front:
