Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Keyless Entry
>>
Rear Compartment Lid Release Motor, Switch And Relay
Rear Compartment Lid Release Motor, Switch And Relay

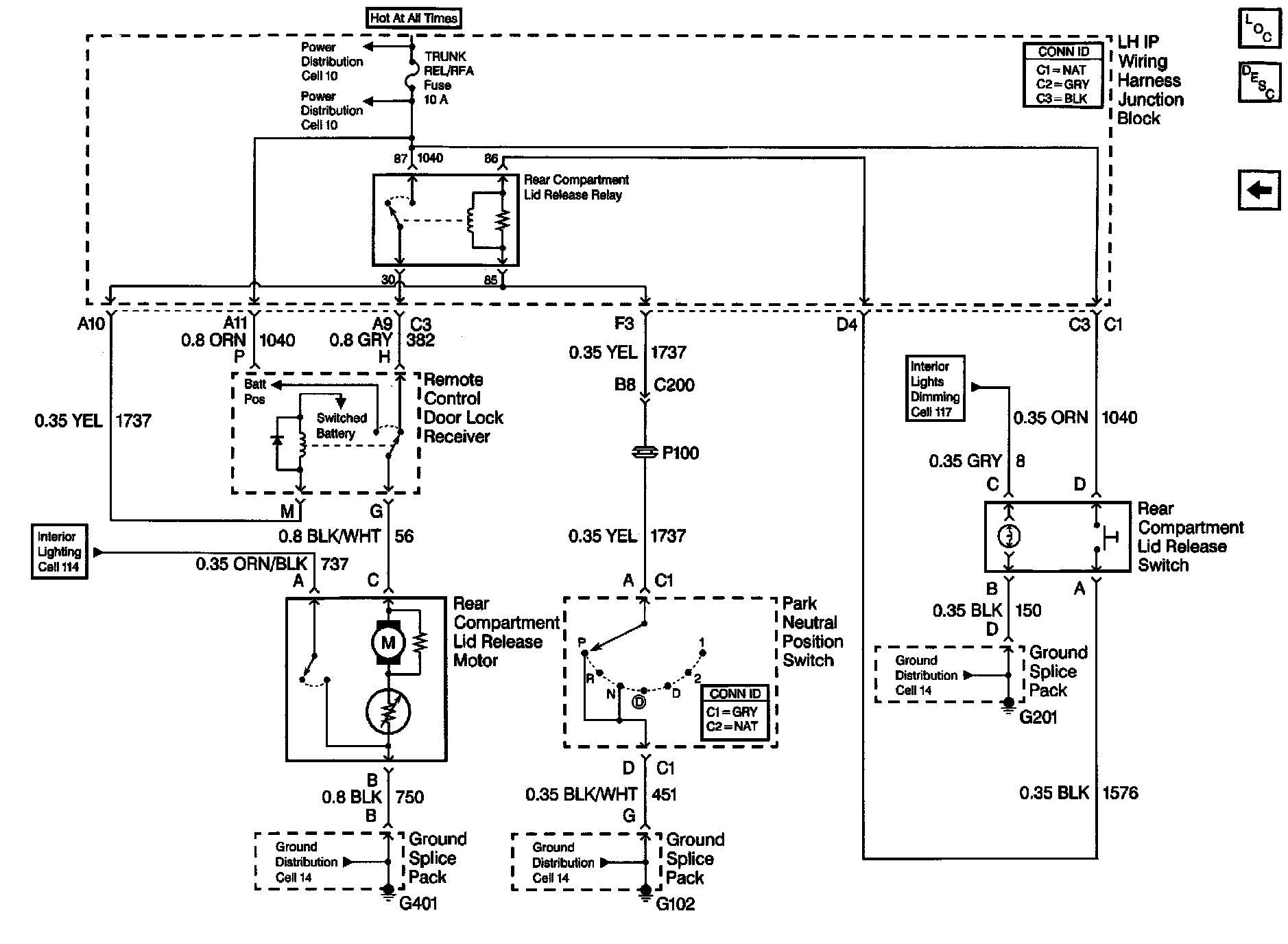

Keyless Entry Schematics: Rear Compartment Lid Release Motor, Switch And Relay:
