Underhood Junction Block C1
Underhood Junction Block C1

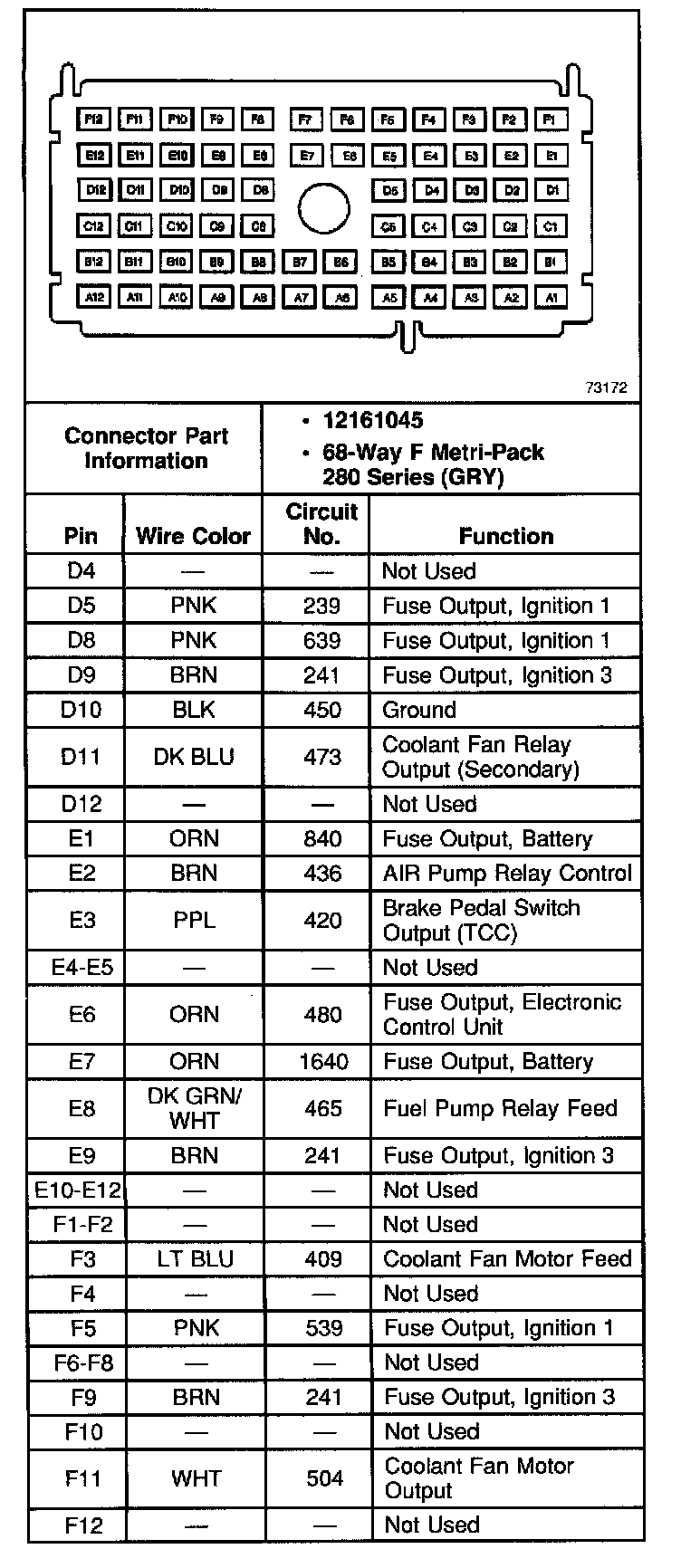

Underhood Junction Block C1 (L82 Only) (Part 1 Of 2):

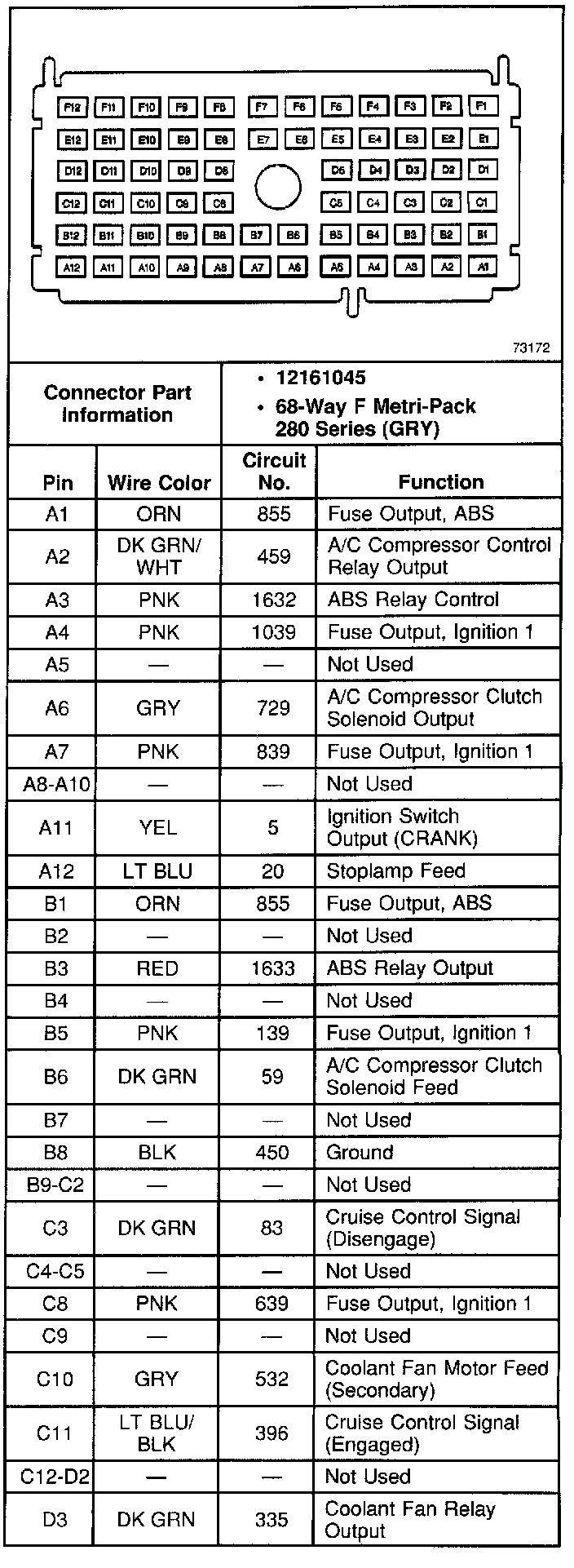

Underhood Junction Block C1 (L82 Only) (Part 2 Of 2):
